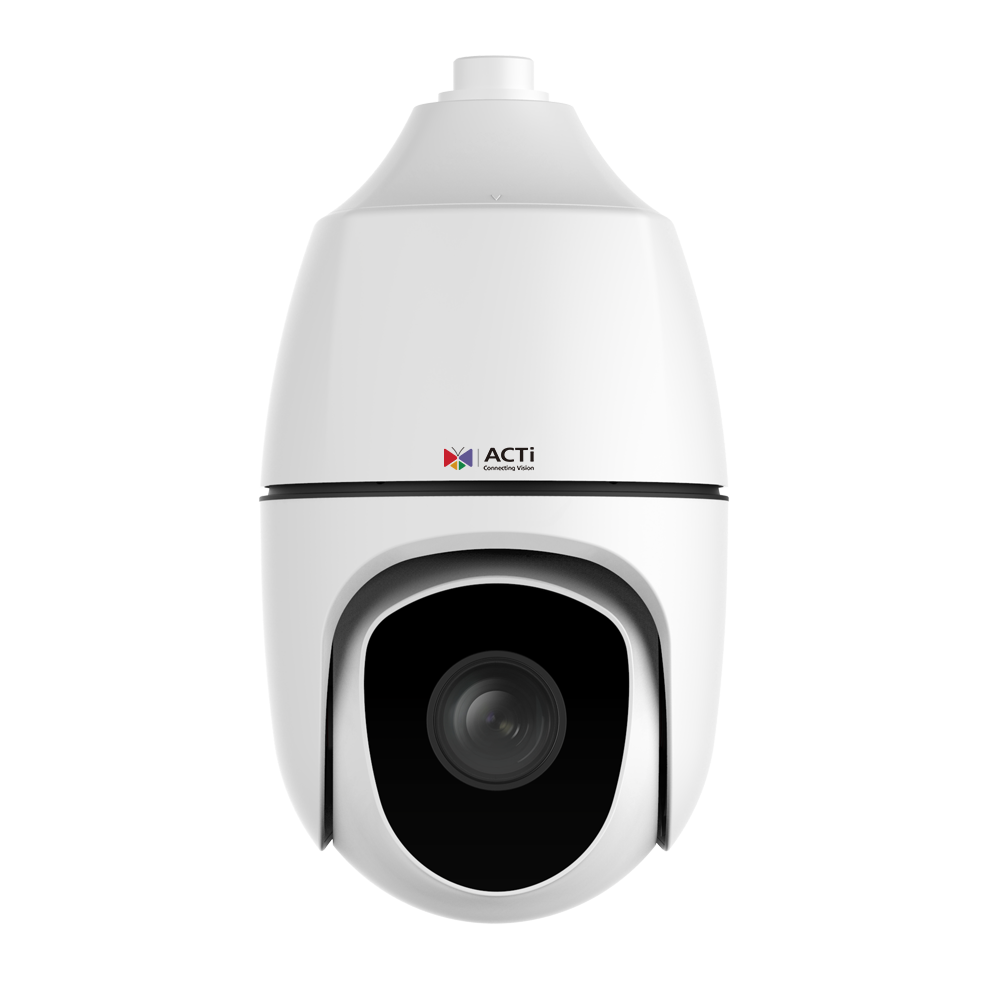

- • 8 Megapixel, 40x, PTZ
- • 1/1.8" Sensor, IR LED 250m, Extreme WDR (145 dB)
- • Color Min. Illumination 0.003 lux
- • Two-way Audio
- • PTZ Auto Tracking, 360° endless
- • Counting
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.5 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 250m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f5.7-228mm |
| Aperture | F1.2-F4.6 |
| Zoom Ratio | 40x optical zoom, 16x digital zoom |
| Iris | Auto iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 61.4° - 2.15° |
| Vertical Viewing Angle | 38.8° - 1.43° |
| PTZ | |
| Preset Panning / Tilting Speed | 300°/second, 180°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | 1024 preset points |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 30 fps at 1920 x 1080 30 fps at 720 x 576 30 fps at 640 x 360 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Enhancement | Backlight compensation (BLC), Digital Image Stabilizer (DIS, EIS), Defogging, White Balance |
| Privacy Mask | 24 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Deep Learning : People Counting, Crowd Detection, Tampering Detection, PTZ Auto Tracking, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection) |
| Audio | |
| Audio Type | 2-way |
| Audio Compression | G.711 u-law, G.711 A-law |
| Network | |
| Network Protocol & Service | IPv4, ARP, IGMP, ICMP, DHCP, DDNS, DNS, HTTP, HTTPS, FTP, IEEE 802.1X, NTP, PPPoE, QoS, RTP, TCP, RTSP, RTCP, UPnP, UDP, SMTP, SNMP, RTMP, SSL/TLS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | HTTPS encryption, Password protected user level |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Web Browser | Microsoft Internet Explorer, Google Chrome, Firefox |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 7/2 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 24V, AC 24V, High PoE (IEEE802.3bt) |
| Power Consumption | Max. 61 W |
| Weight | 9690g (21.36lb) |
| Dimensions | (Ø x H): 270mm x 497mm (10.6" x 19.5") |
| Environmental Casing | Weatherproof (IP66) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE, FCC |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
