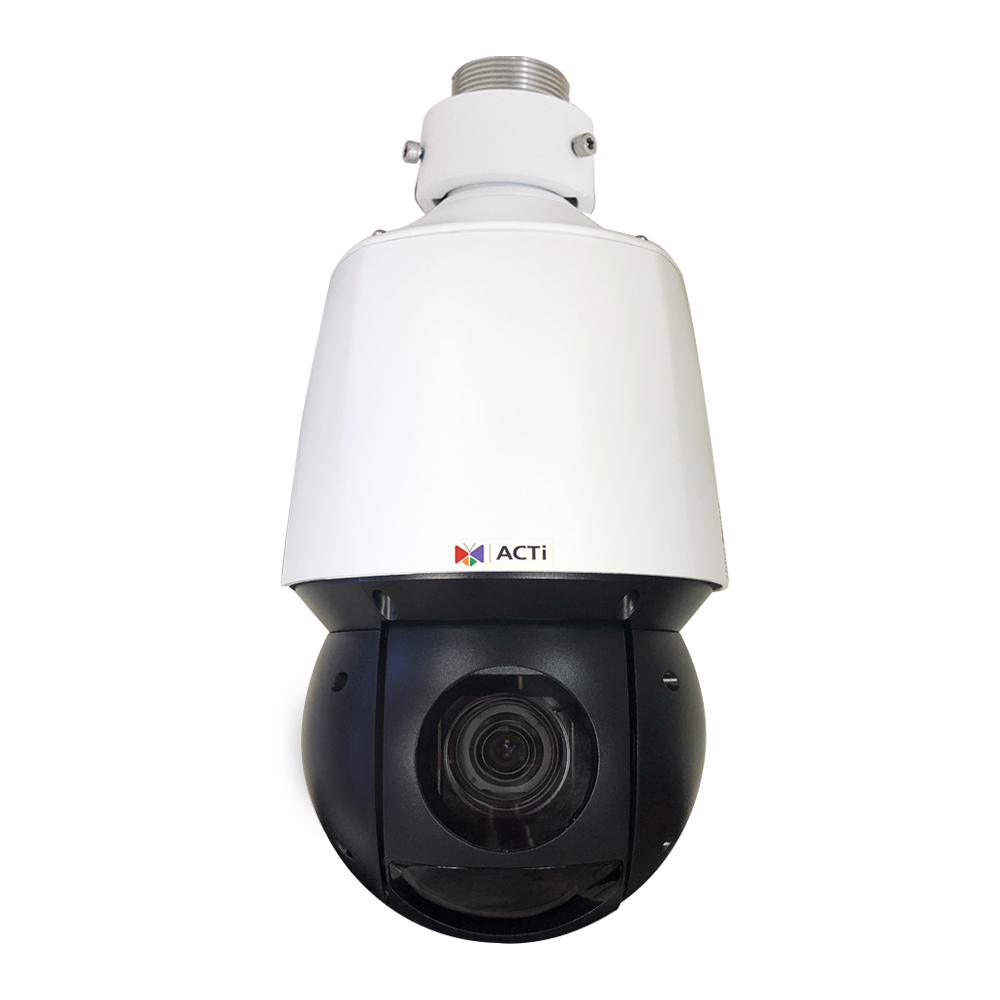

- • 2 Megapixel, 16x, PTZ
- • IR LED 120m, Extreme WDR (140 dB)
- • Color Min. Illumination 0.003 lux
- • PTZ Auto Tracking, 360° endless
- • Counting
- • Weatherproof (IP66), Vandal proof (IK10), UL Listed
| Product Profile | |
|---|---|
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.7 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 6 (850 nm) |
| IR Working Distance | 120m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f5.0-80mm |
| Aperture | F1.7-F2.8 |
| Zoom Ratio | 16x optical zoom |
| Iris | Adaptive iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 51.7° - 4.89° |
| Vertical Viewing Angle | 30.49° - 2.75° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 80°/second, 0.1° - 80°/second |
| Preset Panning / Tilting Speed | 80°/second, 80°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | Remote manual control, Speed Control, Drag to Pan and Tilt, 1024 preset points, 16 preset tours |
| Absolute Position | Yes |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Automatic exposure, Brightness, Sharpness, Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Detection, Vehicle Detection, People Counting, Crowd Detection, Tampering Detection, PTZ Auto Tracking, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Missing Object Detection, Intrusion Detection (Forbidden Area Detection) |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (4 regions), Video loss |
| Event Response | Notify control center, Go to PTZ preset point or preset tour, E-mail notification with snapshots, Save video or snapshot to storage, Upload snapshot to FTP server |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 20 W (PoE) |
| Dimensions | (Ø x H): 162mm x 293mm (6.4" x 11.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | Power Adapter |
| Mount Type | Pendant |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Surge Protection | 6KV |
| Approvals | CE Class B, FCC Class B, IP66, IK10 (metal casing), UL Listed |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
