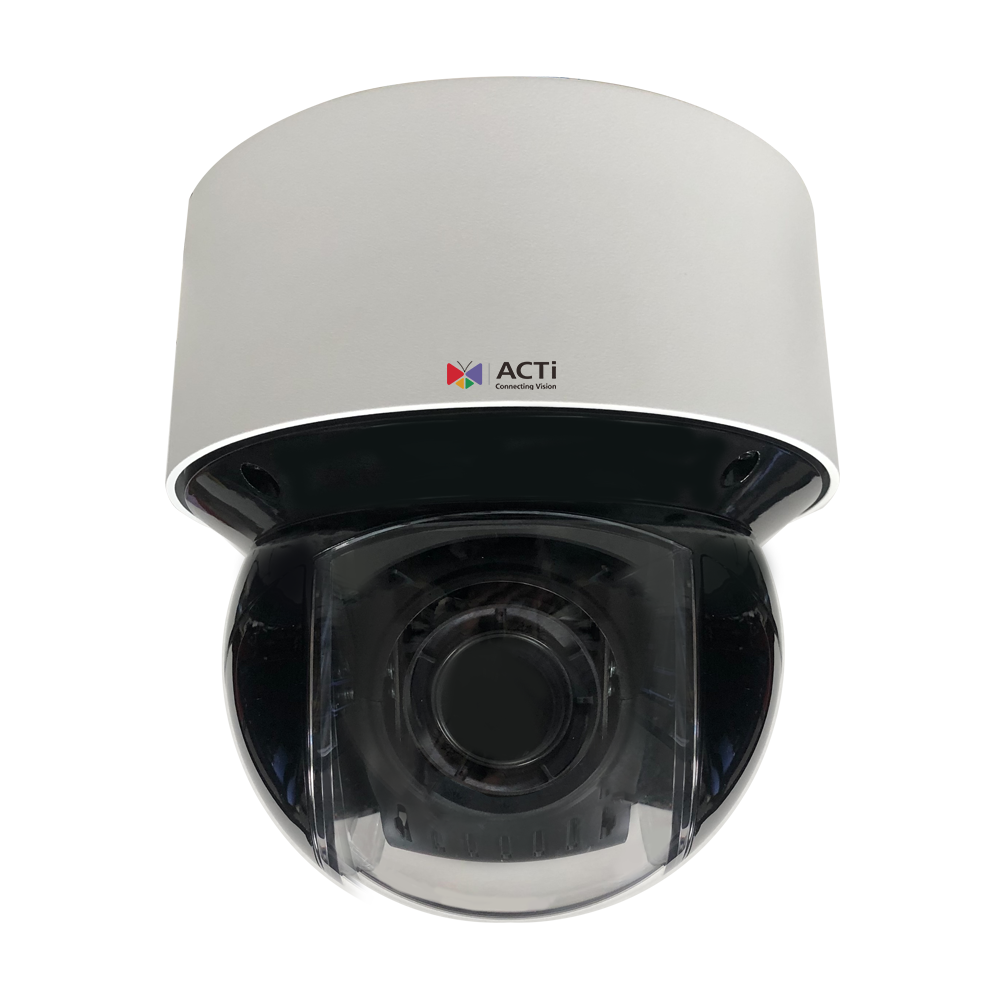

- • 4 Megapixel, 16x, PTZ
- • IR LED 120m, Extreme WDR (145 dB)
- • Color Min. Illumination 0.003 lux
- • Two-way Audio
- • PTZ Auto Tracking, 360° endless
- • Weatherproof (IP66), Vandal proof (IK10), UL Listed
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.9 " |
| Effective Pixels | 2880(H) X 1620(V) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.78 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 120m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f5.5-88mm |
| Aperture | F1.78-F3.73 |
| Zoom Ratio | 16x optical zoom |
| Iris | DC iris |
| Horizontal Viewing Angle | 50.85° - 3.47° |
| Vertical Viewing Angle | 29.94° - 1.95° |
| PTZ | |
| Preset Panning / Tilting Speed | 0.1° - 240°/second, 0.1° - 120°/second |
| Panning Range | 360° endless |
| Tilting Range | -5°~90° (with E-flip) |
| PTZ Control | Remote manual control, Speed Control, Drag to Pan and Tilt, 1024 preset points, 16 preset tours |
| Absolute Position | Yes |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 30 fps at 1280 x 720 30 fps at 640 x 360 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 24 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Detection, Vehicle Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection), Tampering Detection, PTZ Auto Tracking |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 u-law, G.711 A-law |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL/TLS, TLS 1.2 |
| Ethernet Port | 1 x 100M/1000M, RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (4 regions), External device through digital input, Sound detection, Tampering detection |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 2/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 23 W (PoE) |
| Weight | 2900g (6.39lb) |
| Dimensions | (Ø x H): 167mm x 181mm (6.6" x 7.1") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Surge Protection | 6KV |
| Approvals | CE Class A, FCC Class A, IP66, IK10 (metal casing), UL Listed |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
