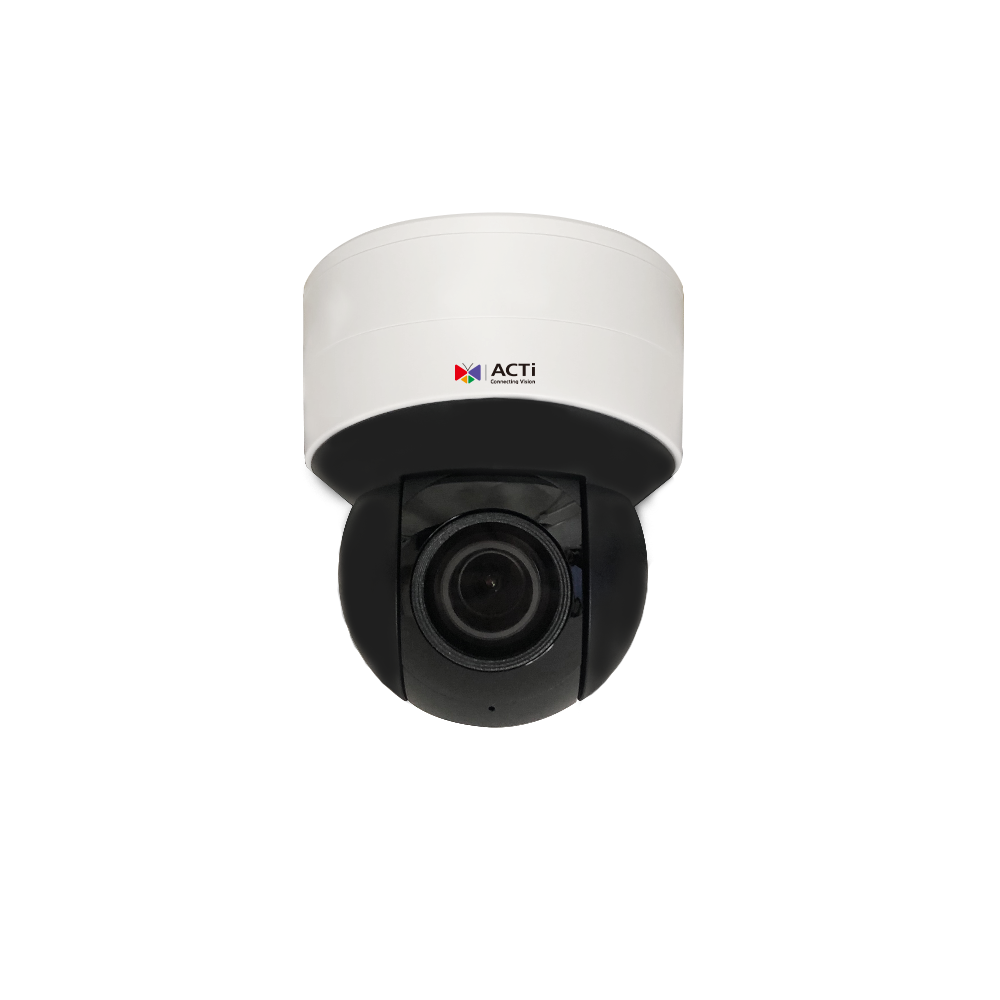

- • 5 Megapixel, 5x, PTZ
- • Deep Learning AI
- • Aperture F1.2, IR LED 120m, Extreme WDR (145 dB)
- • Color Min. Illumination 0.003 lux
- • Two-way Audio
- • Smart Intrusion Protection
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | PTZ |
| Application Environment | Indoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 120m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.7-13.5mm |
| Aperture | F1.2 |
| Zoom Ratio | 5x optical zoom |
| Horizontal Viewing Angle | 106.9° - 30.6° |
| Vertical Viewing Angle | 56.0° - 17.7° |
| PTZ | |
| Panning Range | 350° |
| Tilting Range | 0°~90° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2880 x 1620 30 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Orientation | Flip |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Digital Noise Reduction |
| Privacy Mask | 24 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Intrusion Protection, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Tampering Detection, Missing Object Detection, Unattended Object Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 2-way |
| Audio Compression | G.711 A-law, G.711 u-law |
| Network | |
| Network Protocol & Service | ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4/v6, ICMP, IEEE 802.1X, IGMP, NTP, PPPoE, QoS, RTCP, RTP, RTMP, RTSP, SNMP, SMTP, SSL/TLS, SSH, TCP, UDP, UPnP |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection, External device through digital input |
| Event Response | E-mail notification with snapshots, Activate external device through digital output |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Interface | |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | High PoE (IEEE802.3at), DC 12V |
| Power Consumption | 18W |
| Weight | 780g (1.72lb) |
| Dimensions | (Ø x H): 129mm x 143.6mm (5.1" x 5.7") |
| Mount Type | Surface, Wall Mount, Pendant, Pole Mount |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Surge Protection | 4KV |
| Approvals | CE, FCC, UL |
