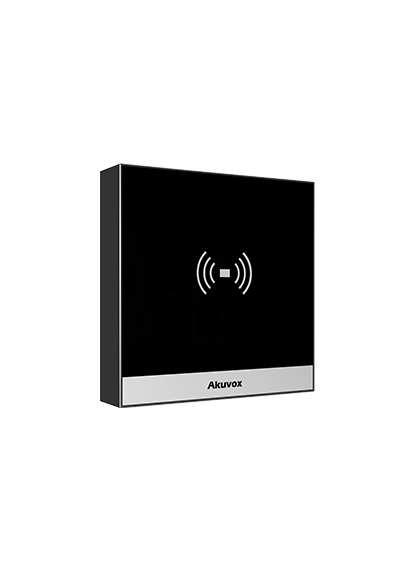

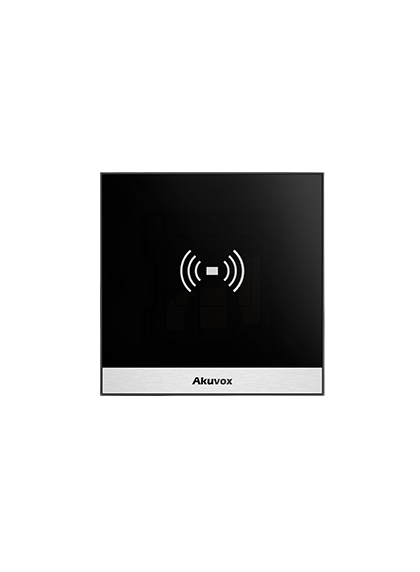

Akuvox‘s A01 access control terminal incorporates door controller and an RIFD reader in one standalone device, thus saving your solution costs. Equipped with an RFID reader ( 125kHz and 13.56MHz) which is capable of handling a majority of cards in wide use currently. A01S is designed to provide you with greater flexibility and security than those traditional access control systems.
Features:
- Toughened glass front panel & Aluminum alloy frame
- 13.56MHz & 125kHz RFID card reader & NFC
- 20,000 card capacity &100,000 event logs
- Support Tamper Alarm
- Water-proof & Dust-proof:IP65
- Installation:Wall mount & Flush mount
- 802.3af Power-over-Ethernet and 12V DC connector (if not using PoE)
| Specifications | |
| Physical & Power | Front panel: Toughened Glass Frame: Aluminum Alloy RFID card reader: 13.56MHz & 125kHz Relay out: 1 Inputs: 2 Wiegand: Support Speaker: 8Ω / 0.5W Tamper proof alarm: Support Ethernet port: RJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Power output: 12V 600mA IP Level: IP65 Installation: Flush-mounted or Wall-mounted Dimension: 86 x 86 x 33 (mm) Working Humidity: 10~90%，no condensing Working Temperature: -20°C ~ +55°C Storage Temperature: -30°C ~ +70°C |
| Capacity | User Capacity: 20,000 Card Capacity: 20,000 Event Log: 100,000 |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs |
| Networking | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | Access schedule export/import Access level management Supports switch to reader mode Door access logs query and export Flexible scheduling and attendance management |
