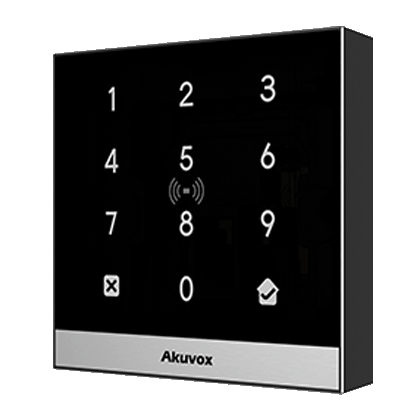

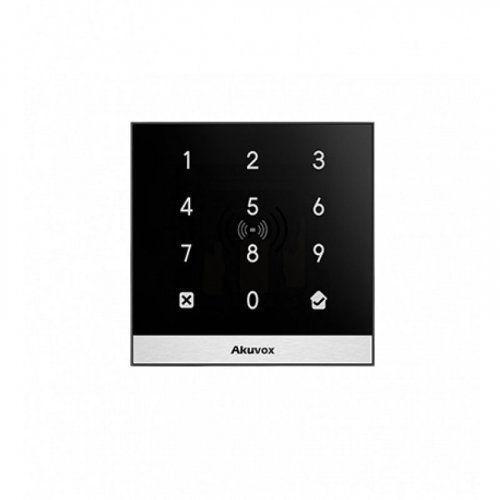

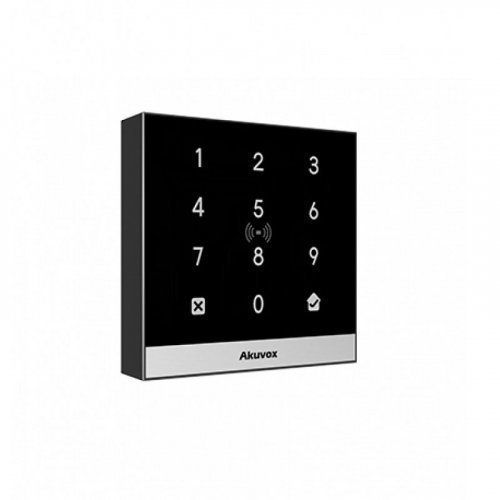

Akuvox - A02S - Access Control Terminal with RFID Reader
The A02 is an IP access control terminal that combines a door controller and a card reader within a single device. Offering the flexibility of access control options, it supports PIN codes, RFID cards and NFC.
The access control terminal is a device for protecting against unwanted intruders to the facility. It provides information about the movement of people and makes it possible to keep the situation at the enterprise, warehouse, or office.
Features
• Made of aluminum and tempered glass
• Akuvox Cloud support
• Built-in memory for 20,000 cards
• Built-in memory for 100,000 events
• Built-in Mifare and Em-Marine card reader
• Identification modes: Smart Plus, NFC, RFID cards, PIN code
• Number of relays (locks) - 1
• Number of inputs (output buttons) - 2
• Wiegand interface
• PoE 802.3af support
• Operation at temperatures from -20℃～55℃
| Main | |
| Front Panel | Touch keypad |
| Body Material | Aluminum |
| RF Card Reader | 13.56 MHz and 125 kHz |
| Relay Output | Supported (2 relays) |
| Inputs | 2 |
| Wiegand Support | Yes |
| Speaker | 8 ohms / 0.5 W |
| Intrusion Alarm Support | Yes |
| Ethernet Port | RJ45, 10/100 Mbps adaptive |
| Power-over-Ethernet | IEEE 802.3af PoE |
| Power Supply (if PoE not used) | 12 V DC |
| Power Supply Output | 12 V, 600 mA |
| Protection Class | IP65 |
| Mounting | Wall and flush mounting |
| Dimensions | 86 x 86 x 33 mm |
| Operating Humidity | 10~90%, non-condensing |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Storage | |
| Face Library | 20,000 |
| Card Library | 20,000 |
| Event Log | 100,000 |
| Network | |
| Protocol Support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Maintenance | |
| Management Features | Auto-Provisioning, Web Management Portal, Web-based Packet Dump, Configuration Backup/Restore, Firmware Upgrade, System Logs |
| Login Features | |
| Access Management | Access Schedule Export/Import, Access Level Management, Support for Read Mode Transition, Access Log Search and Export, Flexible Change Scheduling and Attendance Management |
