Akuvox - A05S - Access Control Terminal

Name: Akuvox - A05S - Access Control Terminal
Brand: Akuvox
SKU: A05S

Part number:

A05S

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

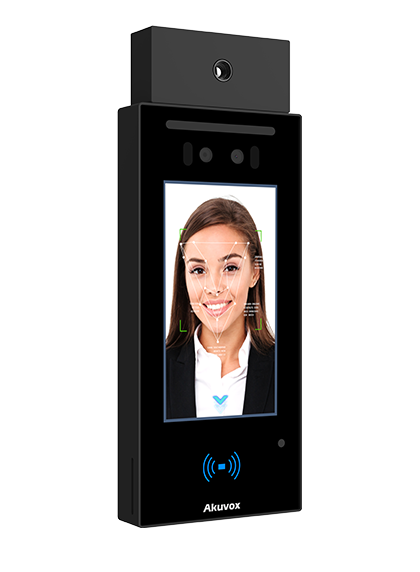

A05 is a commercial-grade access control terminal, which offers fast, safe and convenient access control via AI-powered face recognition, mobile app, NFC, or QR codes. It is typically used in commercial and residential applications.

Features:

• Display: 5 Inch IPS LCD, 1280x720
• Camera: 2M pixels, WDR
• Anti-spoofing algorithm against photo and video attack
• 20,000 face capacity & 20,000 card capacity
• Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.9%
• Identification Mode: Face, RFID Card, QR code
• Water-proof & Dust-proof: IP65
• Installation: Wall mount
• 802.3af Power-over-Ethernet and 12V DC Connector (if not using PoE)

At a Glance	• Visible light facial recognition; • Better hygiene with touchless biometric authentication, fever and mask detection; • Anti-spoofing algorithm against photo and video attack; • 20,000 face capacity & 20,000 card capacity; • Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%; • Multiple verification methods including: face, cards and QR codes; • Stand-alone operation; • Configuration via web browser;
Anti-epidemic Function	• Mask Detection • Body Temperature Detection [Only A05S(MD01) & A05S(MD02) support]
Physical & Power	• Housing Material: Plastic • Display: 5 Inch IPS LCD, 1280x720 • Camera: 2M pixels, WDR • Wiegand Port: Support • RS485 Port: Support • RF Card Reader: 13.56MHz, NFC • Relay In / Out: 1 / 1 • Ethernet Port: RJ45, 10/100Mbps adaptive • 802.3af Power-over-Ethernet • 12V DC Connector (if not using PoE) • Tamper: Support • Installation: Wall-mounted • IP Level: IP65 • Working Humidity: 10~90%, no condensing • Working Temperature: -20℃~+60℃
Identification	• Identification Mode: Face, RFID Card, QR code • Identification Speed: ＜200ms
Capacity	• Face Capacity: 20,000 • Card Capacity: 20,000 • Event Log: 50,000
Forehead Temperature Measurement	• Only A05S(MD02) support • Distance: 0.3M ~ 1M • Accuracy: 0.1℃ • Deviation: ±0.3℃ • Range: 34℃ ~ 45℃
Wrist Temperature Measurement	• Only A05S(MD01) support • Distance: 1cm ~ 5cm • Accuracy: 0.1℃ • Deviation: ±0.3℃ • Range: 34℃ ~ 45℃
