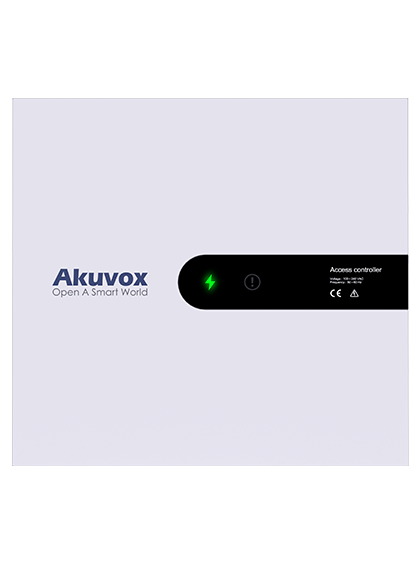

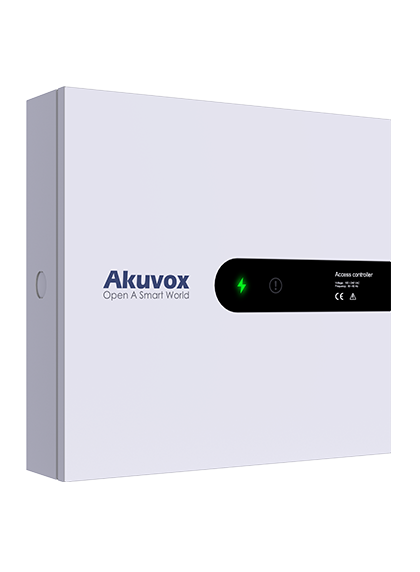

The Akuvox A092S is a 2 doors access controller with Ethernet interface. It supports 50,000 users and various functions that enable you to control who comes into your building. And the backup battery and tamper proof design makes that more secure and reliable.
Feature:
- Supports TCP/IP communication and web interface for management
- Supports up to 50,000 cards and 100,000 card presenting records
- Supports multi-door interlock funtion and anti-pass back function
- Supports RS-485, OSDP, Wiegand protocol for accessing card readesr
- Supports emergency door release(EDR)
- Supports tamper proof alarm
- Easy to establish large-scale access control system with Akuvox ACMS
- Back up battery design
- Power supply: 100~240VAC 50/60Hz (A092S);802.11at PoE+ (A092P）
| Specifications | |
| Physical & Power | Front panel: SGCC RAM / ROM: 64MB / 128MB Power input: 100~240VAC 50/60Hz Wiegand port: 4 Relays out: 2 Exit button input: 2 RS485 port: Support Ethernet port: RJ45, 10/100 Mbps, adaptive Status lights: Support Tamper proof alarm: Support Power output: 12V 800mA per door for locks/strikes, readers, and input devices Backup battery: Support Installation: Wall-mounted Dimension: 365 x 340 x 86 (mm) Working Humidity: 10%~90% Working Temperature: -20℃ ~ +55℃ Storage Temperature: -40℃ ~ +70℃ |
| Door Entry Feature | 50,000 card storage Anti-pass back function Multi-door interlock function Access table export/import Access level management Door access logs query and export |
| Card Readers | Support Wiegand 26/34 readers Support OSDP readers Support RS485 readers |
| Networking | Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs |
