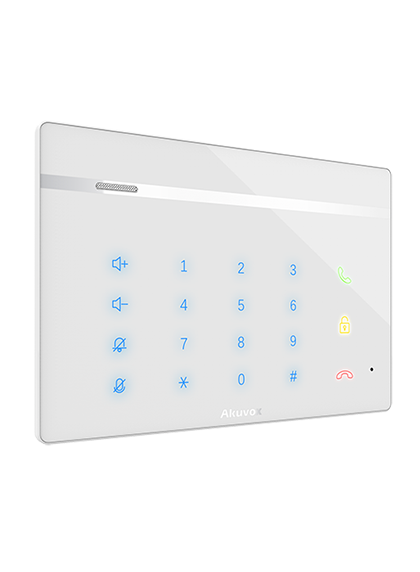

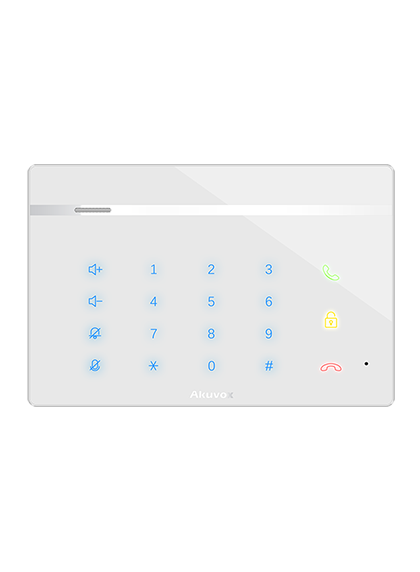

The C312S multifunctional communicator, which works as an indoor answering unit, provides HD audio communication with doorphone or other sip device via SIP 2.0 protocol. It delivers the ultimate glass touch screen experience in an unobtrusive, space-saving design.
Features:
- Ultra clear, stylish appearance with numerical keypad
- Glass surface and striking icon backlighting
- Magnetic bracket installation
- Doorbell button support
- Powered by PoE or external power supply
- 2.23 inch OLED display
| Specifications | |
| Audio | Wideband Codec: G.722 Narrowband Codec: PCMA, PCMU, G.729 VAD, CNG, Echo Canceller Full-Duplex Speakerphone |
| Memory | RAM: 64MB Flash: 16MB |
| Interface | Ethernet: 1x10/100 Mbps RJ45 Power Supply: 12V / 1A, PoE 802.3af Alarm: Support 8 channels input Relay Out: 1 Relay Out (NO/COM/NC) Doorbell input : 1 Bell In |
| Network Features | Static IP/DHCP for IP configuration 3 DTMF modes: In-Band, RFC2833, SIP INFO HTTP/HTTPS Web Server for Management TFTP/FTP/HTTP/HTTPS Auto Provisioning Protocols |
| Environmental | Temperature: 32° to 113°F (0° to 45°C) Humidity: 10% to 90% (non-condensing) |
| Mechanical parameters | Dimensions (W x H x D): 165 x 115 x 33 mm |
