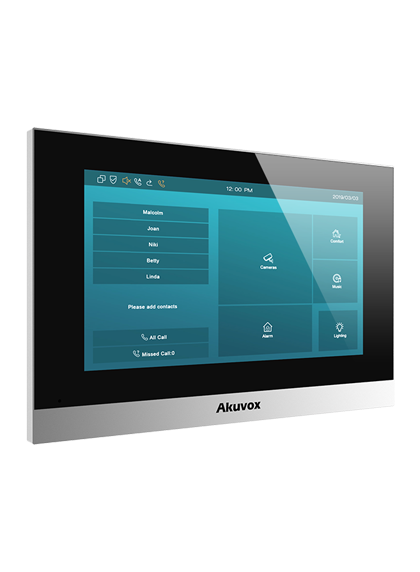

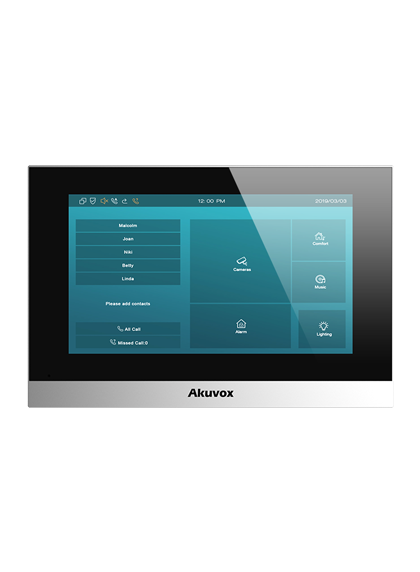

Akuvox - C313S - 7" Indoor Monitor Standard Version
- • Ultra-clear, stylish appearance
- • Thin profile and small footprint
- • 7-inch capacitive touch screen with energy saving mode
- • Two-way audio communication with other units in the network
- • Complies with SIP standard for easy integration in every SIP capable PBXes
- • Powered by PoE or external source
- • Support US or European electrical wall box mounting
- • 1.7” capacitive touch screen with energy saving mode
- • Reception of a HD picture from the door communicator
- • Two-way communication based on SIP v2.0 protocol
- • Powered by PoE or external source
- • Supports US or European electrical wall box mounting
| At a Glance | • Ultra-clear, stylish appearance • Thin profile and small footprint • 7-inch capacitive touch screen with energy saving mode • Two-way audio communication with other units in the network • Complies with SIP standard for easy integration in every SIP capable PBXes • Powered by PoE or external source • Support US or European electrical wall box mounting |
| Physical & Power | • Front panel: Plastic • RAM / ROM: 64MB / 128MB • Display: 7 Inch TFT LCD • Screen: 7 Inch capacitive touch screen • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz • RS485 port: Support • Relay out: 1 • Bell in: 1 • I/O: 8 • Microphone: -58dB • Speaker: 4Ω / 2W • Ethernet ports: 2xRJ45, 10/100Mbps adaptive • 802.3af Power-over-Ethernet • 12V DC connector (if not using PoE) • Installation: Wall-mounted & Desktop • Dimension: 200.2x132.2x27.2mm • Working Humidity: 10~90% • Working Temperature: -10°C ~ +45°C • Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | • Display Mode: Normally white, Transmissive • LCD Size: 7inch (Diagonal) • Resolution: 800x480 • Contrast ratio: 500:1 • Luminance: 220 cd/m2 • Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower • Touch Screen: Projected capacitive |
| Audio | • SIP v1 (RFC2543), SIP v2 (RFC3261) • Narrowband audio codec: G.711a, G.711μ, G.729 • Broadband audio codec: G.722 • DTMF: Out-of-band DTMF (RFC2833), SIP Info • Echo Cancellation |
| Video | • Streaming formats: H.264 |
| Networking | • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | • Auto-Provisioning • Web management portal • Web-based packet dump • Configuration backup / restore • Firmware upgrade • System logs (include door access logs) |
| Application Scenario | • Villas • Apartment complexes • Home automation systems • Modern interiors |
The Akuvox C313S multifunctional communicator provides audio and video communication with door phones via the SIP 2.0 protocol and runs on a Linux operating system. Its brilliant 7-inch capacitive touch screen display delivers the ultimate touch screen experience in an unobtrusive, space-saving design.
