Premium touch screen for your home

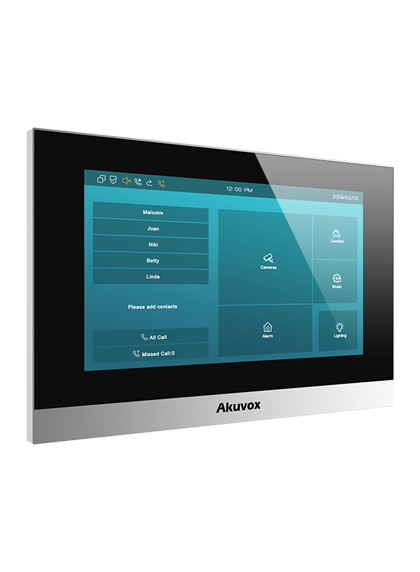

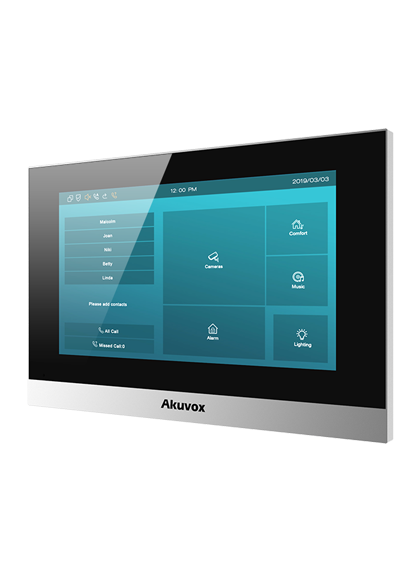

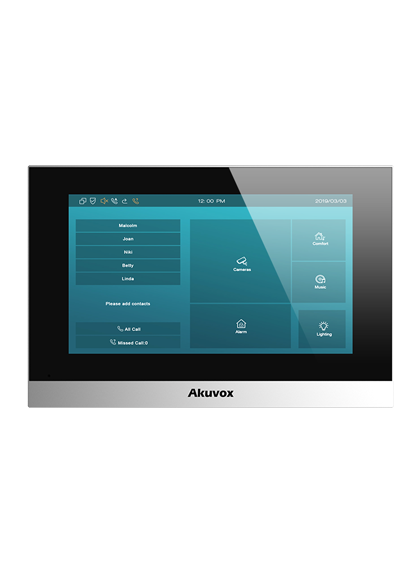

The Akuvox C313W multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.
At a Glance
- Ultra-clear, stylish appearance;
- Thin profile and small footprint;
- 7-inch capacitive touch screen with energy saving mode;
- Two-way audio communication with other units in the network;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Powered by PoE or external source
- Support US or European electrical wall box mounting
SIP Indoor unit (Linux Version)
- 7” capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
Supports US or European electrical wall box mounting
Bluetooth, and Wireless feature
Physical & Power
⚫ Front panel: Plastic
⚫ Microphone: -58dB
⚫ RAM / ROM: 64MB / 128MB
⚫ Speaker: 4Ω / 2W
⚫ Display: 7 Inch TFT LCD
⚫ Ethernet ports: 2xRJ45, 10/100Mbps adaptive
⚫ Screen: 7 Inch capacitive touch screen
⚫ 802.3af Power-over-Ethernet
⚫ Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
⚫ 12V DC connector (if not using PoE)
⚫ RS485 port: Support
⚫ Installation: Wall-mounted & Desktop
⚫ Relay out: 1
⚫ Dimension: 200.2x132.2x27.2mm
⚫ Bell in: 1
⚫ Working Humidity: 10~90%
⚫ I/O: 8
⚫ Working Temperature: -10°C ~ +45°C
⚫ Storage Temperature: -20°C ~ +70°C
Touch Screen Display
⚫Display Mode: Normally white, Transmissive
⚫LCD Size: 7inch (Diagonal)
⚫Resolution: 800x480
⚫Contrast ratio: 500:1
⚫Luminance: 220 cd/m²
⚫Viewing Angle: 50° Left, 50° Right,
40° Upper, 50° Lower
⚫Touch Screen: Projected capacitive
Audio
⚫SIP v1 (RFC2543), SIP v2 (RFC3261)
⚫Narrowband audio codec: G.711a, G.711μ, G.729
⚫Broadband audio codec: G.722
⚫DTMF: Out-of-band DTMF (RFC2833), SIP Info
⚫Echo Cancellation
Video
⚫Streaming formats: H.264
Networking
⚫Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,
DHCP, ARP
Deployment & Maintenance
⚫Auto-Provisioning
⚫Web management portal
⚫Web-based packet dump
⚫Configuration backup / restore
⚫Firmware upgrade
⚫System logs (include door access logs)
Application Scenario
⚫Villas
⚫Apartment complexes
⚫Home automation systems
⚫Modern interiors
