C317A - EOL Replacement: C319A

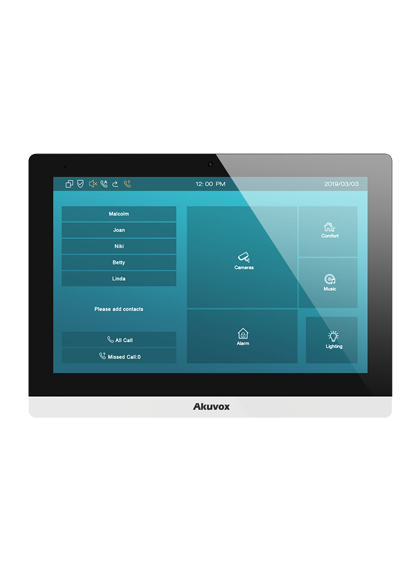

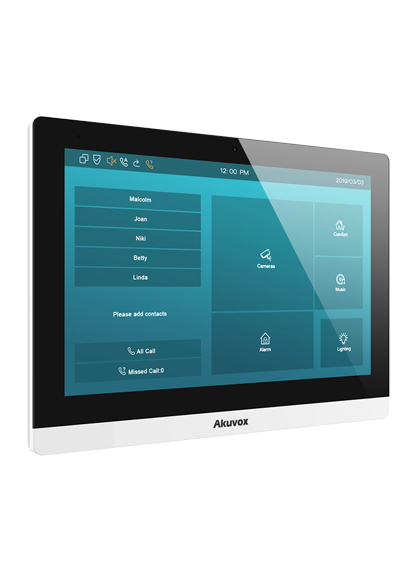

Akuvox C317 is a 10" Android indoor monitor which works seamlessly with a telecare pendant. It is typically used in the elderly’s apartments and in mid- to high-end residences.
Part number:
C317A
Price:
The Akuvox C317S multifunctional communicator, with an Android operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10-inch capacitive touch screen display.
Features:
- Ultra clear, stylish appearance,plastic enclosure
- 10” capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
- Tamper resistant design

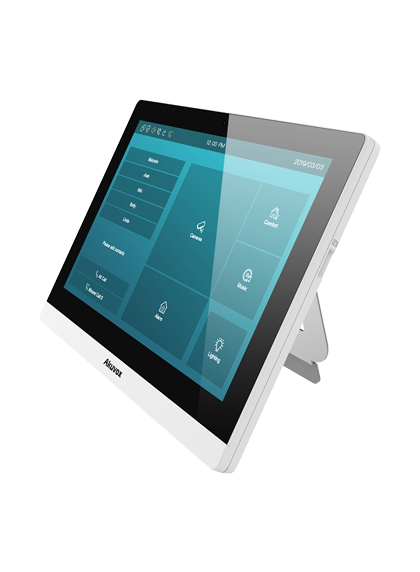

- Desktop Stand (optional)
- Camera: 1M pixels
- WIFI and Bluetooth
- Tamper resistant design
At a Glance
- Ultra-clear, stylish appearance
- 10-inch capacitive touch screen with energy saving mode
- Built-in 1MP CMOS camera
- Reception of a HD picture from the door communicator
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- Built-in smart voice assistant
Physical & Power
- Front panel: Plastic
- RAM / ROM: 2GB / 8GB
- Display: 10 Inch IPS LCD
- Screen: 10 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- Camera: 1MP camera, CMOS
- Memory slot：1 Micro SD slot
- RS485 port: Support
- Relays out: 2
- Bell in: 1
- I/O: 8
- Microphone: -58dB
- Speaker: Dual speakers, 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Tamper resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 251x182.5x29.75mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280x800
- Contrast ratio: 900:1
- Luminance: 350 cd/m2
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
