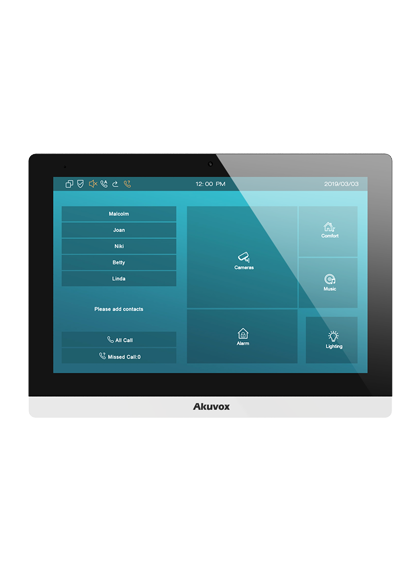

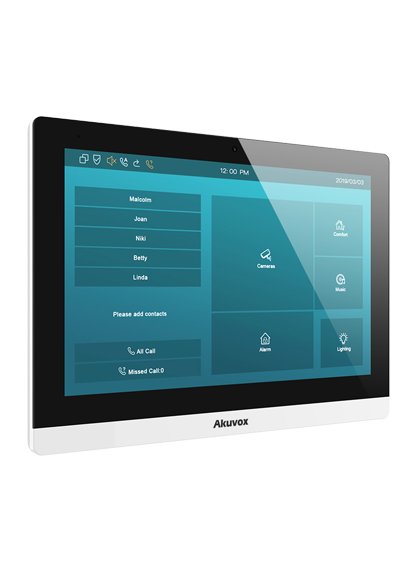

Akuvox C317 is a 10" Android indoor monitor which works seamlessly with a telecare pendant. It is typically used in the elderly’s apartments and in mid- to high-end residences.
Features:
- Ultra clear, stylish and plastic appearance
- 10” capacitive touch screen with energy-saving mode
- Reception of an HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
- Tamper resistant design
- Camera: 1M pixels

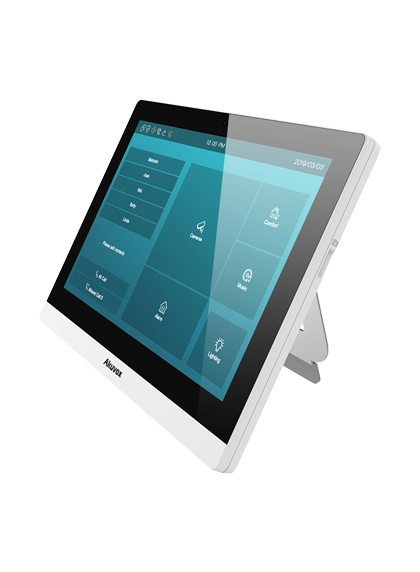

- Desktop Stand (optional)
| Specifications | |
| At a Glance | Ultra-clear, stylish appearance 10-inch capacitive touch screen with energy saving mode Built-in 1MP CMOS camera Reception of a HD picture from the door communicator Two-way audio communication with other units in the network Complies with SIP standard for easy integration in every SIP capable PBXes Powered by PoE or external source Support US or European electrical wall box mounting Built-in smart voice assistant |
| Physical & Power | Front panel: Plastic RAM / ROM: 2GB / 8GB Display: 10 Inch IPS LCD Screen: 10 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz Camera: 1MP camera, CMOS Memory slot：1 Micro SD slot RS485 port: Support Relays out: 2 Bell in: 1 I/O: 8 Microphone: -58dB Speaker: Dual speakers, 4Ω / 2W Ethernet ports: 2xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Tamper resistant: Support Installation: Wall-mounted & Desktop Dimension: 251x182.5x29.75mm Working Humidity: 10~90% Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | Display Mode: Normally black, Transmissive LCD Size: 10inch (Diagonal) Aspect Ratio: 16:10 Resolution: 1280x800 Contrast ratio: 900:1 Luminance: 350 cd/m2 Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower Touch Screen: Projected capacitive |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator Automatic Gain Control |
| Video | Streaming formats: H.263 & H.264 |
| Networking | Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) |
| Application Scenario | Villas Apartment complexes Home automation systems Modern interiors |
