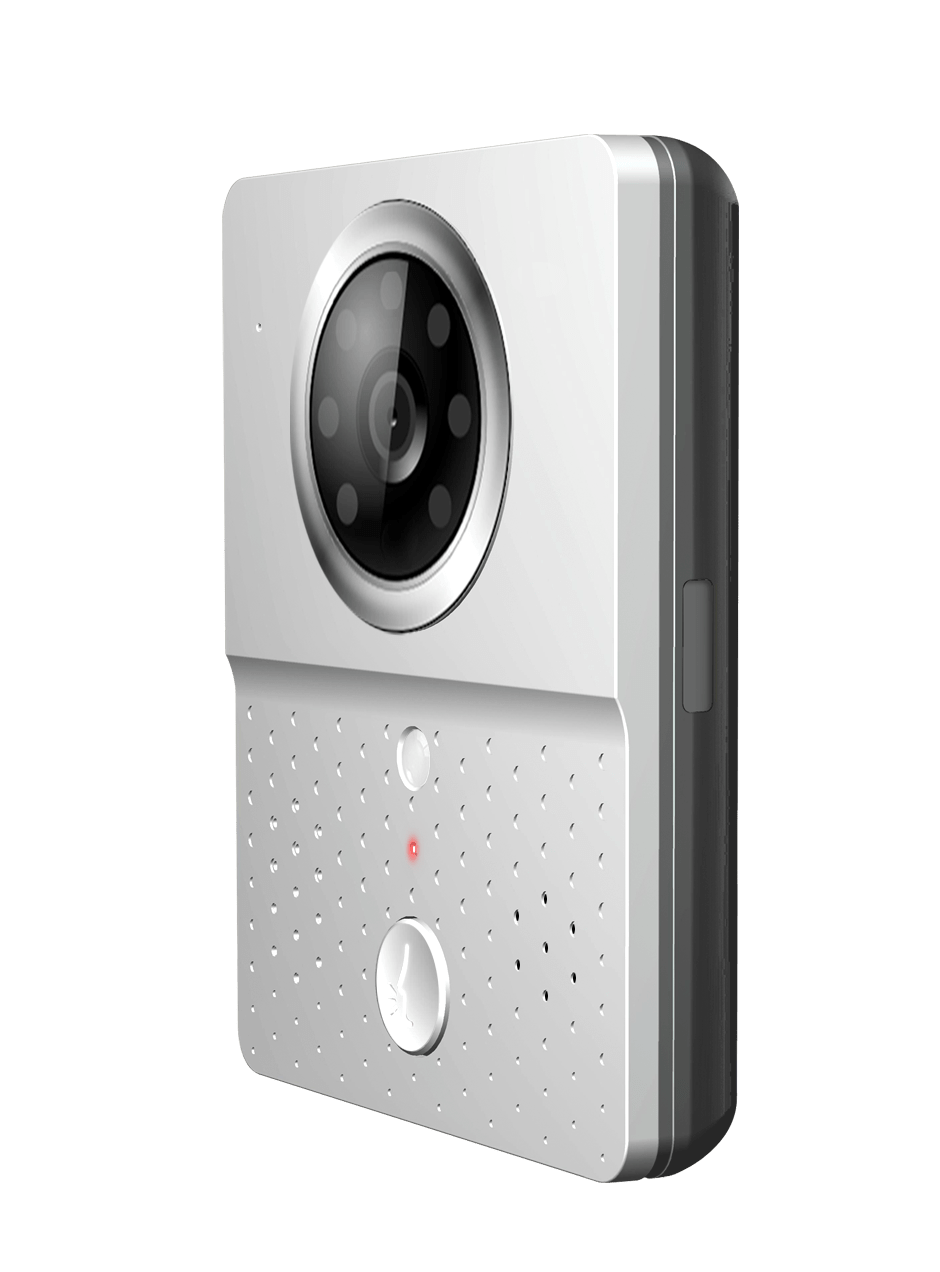

Akuvox - E10S - SIP Video Door Bell
Part number:
E10S
Price:

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s smart Video Doorphone E10S enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.



Features:

  • Body material: ABS plastics
  • Camera: 1M pixels with 95º angle , LED White Light 3.Installation:
  • Surface Mount
  • Infrared sensor provides illumination
  • Two-way audio communication over IP networks with Echo Cancel
  • Complies with SIP standard for easy integration in every SIP PBX;
Specifications
Physical & PowerBody material: ABS plastics
100w pixels, 1/4"HD CMOS Camera
Main Chip: DS2600 1.2GHz Cortex-A7
Input Voltage: DC 12V/0.5A
LED White Light
Infrared sensor
2w*1 loudspeaker
1 RJ45 Connector
Door key’s LED provides illumination
Water & Dust proof: IP33
Installation Surface Mount
Operating temperature: -20℃ ~ 55℃
Operating humidity: 10%~90%
Product Dimensions: 120*96*34.6mm
SIP Endpoint

SIP v1(RFC2543), SIP v2(RFC3261)

Audio codecs: G711a, G711μ, G722,G729

Video codecs: H264

Video

Resolution: Up to 720P

High intensity white LEDs for picture lighting during dark hours with internal light sensor

Networking

1x10/100Mbps Ethernet port

Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,

Name
Description
Size
Downloads
File
Datasheet
0.2mb
