Perfect Doorphone choice for daily life

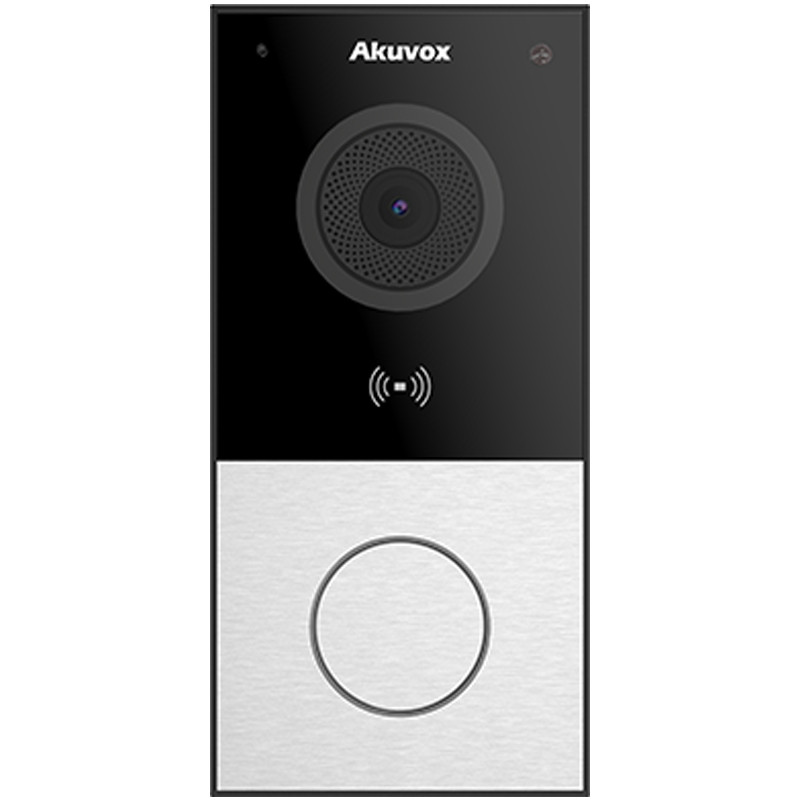

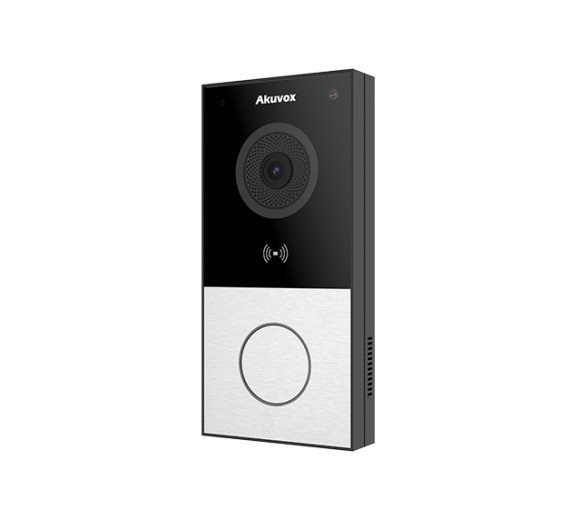

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox's Video Doorphone E12W alerts you when the bell is rung and lets you see and speak with visitors from your smartphone, from anywhere.
Features:
- Body material: ABS plastics
- Camera: 2M pixels with angle: 123°(H) / 69°(V) and LED White Light
- Two Relay in and one Relay out
- Installation: Wall-mounted
- Water-proof & Dust-proof: IP65
- PoE (IEEE802.3af, Power-over-Ethernet)
- Button: 1 call button with backlight
- Two-way audio communication over IP networks with Echo Cancel
- Complies with SIP standard for easy integration in every SIP PBX
- WiFi: IEEE802.11b/g/n, 2.4GHz
| Specifications | |
| Physical & Power | Body Material: Plastic Camera: 2M pixels, automatic lighting Button: 1 call button with backlight Wiegand port: Support RF card reader: 13.56MHz Light sensor: 1 Relays out: 1 Inputs: 2 Micro SD card slot: 1 Microphone: -36dB Speaker: 8Ω / 1.5W Ethernet port: RJ45, 10/100Mbps adaptive BLE: Yes WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only） Vandal alarm: Yes 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Power: 12V / 1A Water-proof & Dust-proof: IP65 Installation: Wall-mounted Size: 146x70x23mm Working Humidity: 10~90% Working Temperature: -40°C ~ +60°C Storage Temperature: -40°C ~ +70°C |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Video | Sensor: 1/2.7”, CMOS Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264, H.265 Video resolution: up to 1920x1080p Max. image transfer rate: 1080p – 25fps Viewing angle: 123°(H) / 69°(V) White LEDs for picture lighting during dark hours with internal light sensor |
| Door Entry Feature | Relays controlled individually by DTMF tones Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) |
| Application Scenario | Apartment/flat intercom with door access control Remote site entry over Internet |
