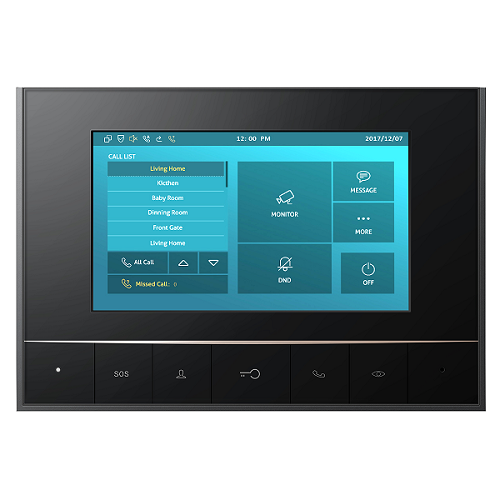

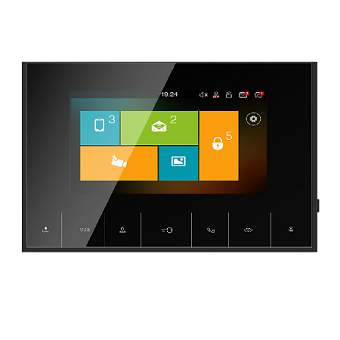

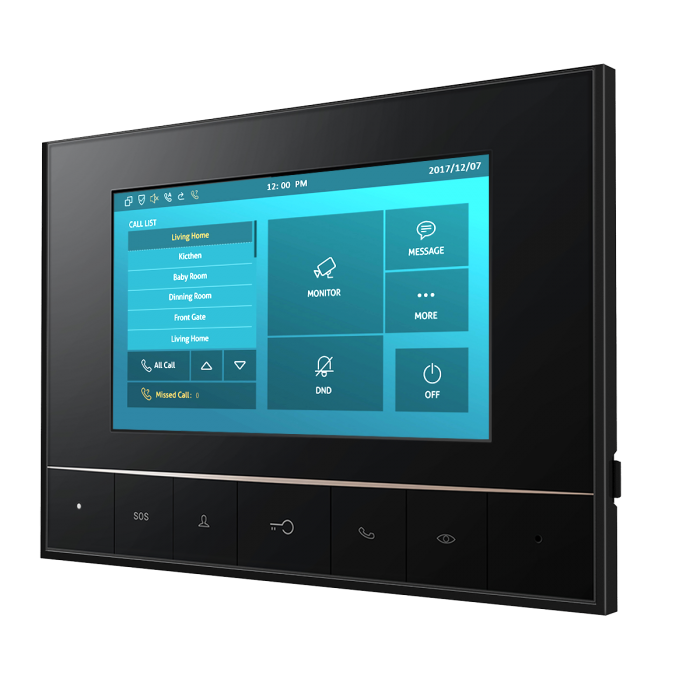

The Akuvox IT80 multifunctional communicator, which works as an indoor monitor, provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7 inch capacitive touch screen display and 5 buttons.
Features:
- Ultra clear, stylish appearance
- Thin profile and small footprint
- 7” capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting Physical buttons
| Specifications | |
| Touch Screen Display | Display Type: Active matrix TFT, transmissive type Size: 7 inch (176 mm) diagonal Aspect Ratio: 16:9 Resolution: 800x480 Brightness: 240nits (cd/m²) Contrast: 400:1 Color Depth: 18-bit, 0.26M colors Illumination: Edgelit LED Viewing Angle: ±60° horizontal, ±70° vertical Touch Screen: Projected Capacitive |
| Buttons | Hard Keys: 5 pushbuttons, programmable, pre-labeled with icons for “SOS”, “Center”, “Unlock”, “Dial”, and “Live View” |
| Memory | RAM: 64MB Flash: 128MB |
| Communications | Ethernet: 2x10/100 Mbps ports, auto-switching, autodiscovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant |
| Video | Streaming Formats: H.264, MJPEG |
| Audio | Features: Built-in microphone and speaker |
| Environmental | Temperature: 14° to 112°F (-10° to 45°C) Humidity: 10% to 90% (non-condensing) |
| Mechanical parameters | Dimensions (W x H x D): 215 x 153 x 18 mm |
| Application Scenario | Villas Apartment complexes Home automation systems Modern interiors |
