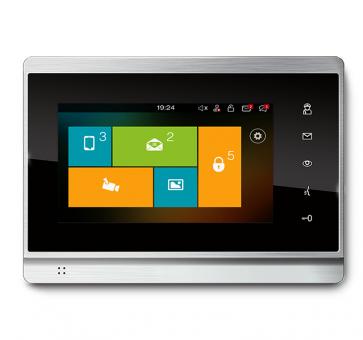

IT81 is a SIP-enabled IP indoor monitor for multifunctional communications from inside your home. It enables high-quality audio and video communications with its door phone. All in-home automation devices can be easily managed and controlled by it. It is even capable of importing mobile applications for home entertainments. At the core of all these is its large, user-friendly capacitive touch screen.
Features:
- 7” capacitive touch screen with energy-saving mode
- Reception of an HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
| Specifications | |
| Physical Features | Display: active matrix TFT, transmissive type Screen: 7” capacitive touch screen Button: 5 capacitive, programmable pushbuttons Memory: RAM-4MB, Flash-128MB PoE IEEE802.3af Power consumption: 12V DC input, <12W Aspect ratio: 16:9 Resolution: 800x480 Brightness: 240nits (cd/m²) Contrast: 400:1 Color depth: 18-bit, 0.26M colors Illumination: edge-lit LED Viewing angle: ±60°horizontal, ±70°vertical Installation: US or European electrical wall box mounting Dimensions: 232 x 160 x 21 mm |
| Environmental Features | Temperature: 14~112℉ (-10~45℃) Humidity: 10%~90% (non-condensing) |
| Interface Features | 2xRJ45 10/100M Mbps Ethernet port Output relay: 1 relays for door opener Security connector: 8x I/O RS485 port |
| SIP Features | SIP v1 (RFC2543), SIP v2 (RFC3261) Line: 2 SIP accounts |
| Audio Features | 1 built-in microphone and speaker Codec: G.711a, G.711μ, G.722 and G.729 Echo cancellation Voice activity detection Comfort noise generator |
| Video Features | Resolution: up to 720p Codec: H.264 Support RTSP |
| Network Features | Static IP or DHCP NTP for auto time setting |
| Administration Features | Auto-provisioning: FTP/TFTP/HTTP/HTTPS/PnP Configuration management: web- or touch screen-based management or auto provisioning |
| Application Scenarios | Villas or apartment complexes |
