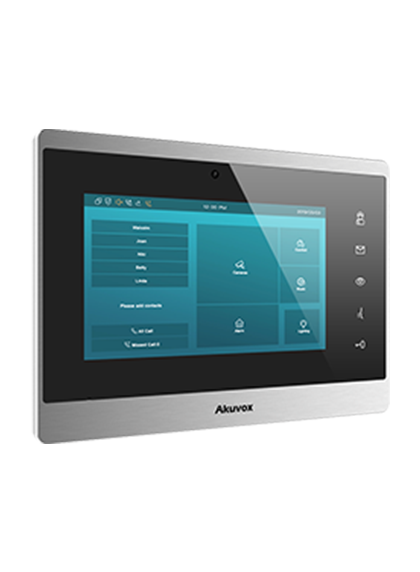

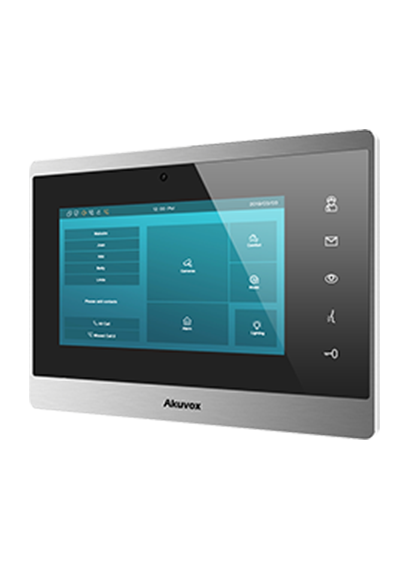

Akuvox IT82 is a 7” Android indoor monitor that comes with 5 easy-to-access soft-touch buttons that can be programmed to bespoke application scenarios. It is typically used in mid- to high-end residences.
Features:
- SIP Indoor unit (Android Version)
- 7” capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
| Specifications | |
| At a Glance | Ultra-clear, stylish appearance; 7-inch capacitive touch screen with energy saving mode; Built-in 1MP CMOS camera; Two-way audio communication with other units in the network; Complies with SIP standard for easy integration in every SIP capable PBXes; Powered by PoE or external source Support US or European electrical wall box mounting |
| Physical & Power | Front panel: Aluminum RAM / ROM: 2GB / 8GB Display: 7 Inch TFT LCD Screen: 7 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz Camera: 1MP camera, CMOS Buttons: 5 capacitive buttons, programmable Memory slot: 1 SD slot RS485 port: Support Relay out: 1 I/O: 8 Microphone: -38dB Speaker: 4Ω / 2W Ethernet ports: 2xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Installation: Wall-mounted & Desktop Dimension: 232x160x27.8mm Working Humidity: 10~90% Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | Display Mode: Active matrix TFT, Transmissive LCD Size: 7inch (Diagonal) Aspect Ratio: 16:9 Resolution: 1024x600 Contrast ratio: 800:1 Luminance: 270 cd/m2 Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower Touch Screen: Projected capacitive |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator Automatic Gain Control |
| Video | Streaming formats: H.263 & H.264 |
| Networking | Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) |
| Application Scenario | Villas Apartment complexes Home automation systems Modern interiors |
