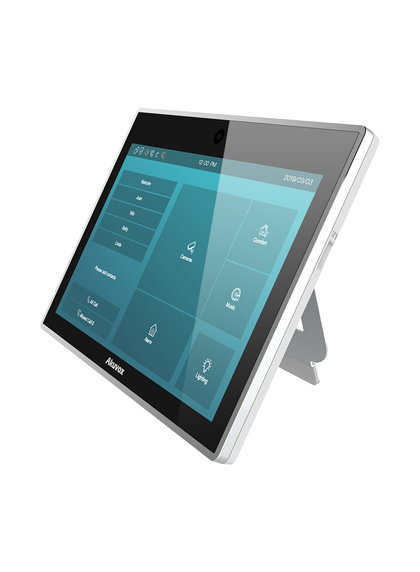

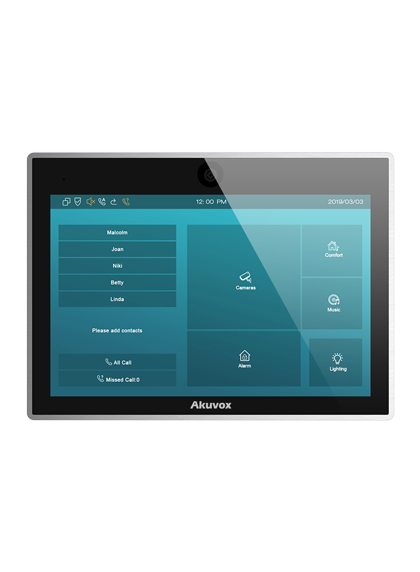

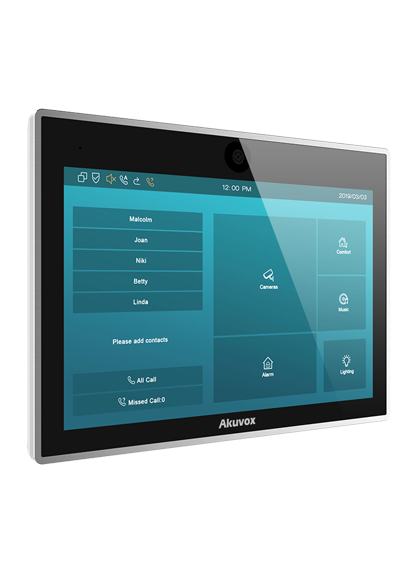

Akuvox IT83 is a 10” Android indoor monitor which delivers brilliant visual display and touchscreen experience. It is typically used in high-end residences.
Features:
- Ultra clear, stylish, and metal appearance
- 10” capacitive touch screen with energy-saving mode
- Reception of an HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
- Tamper resistant design
- Camera: 1M pixels
- WIFI and Bluetooth
- Desktop Stand (optional)
| Specifications | |
| At a Glance | Ultra-clear, stylish appearance; 10-inch capacitive touch screen with energy saving mode; Reception of a HD picture from the door communicator; Two-way audio communication with other units in the network; Complies with SIP standard for easy integration in every SIP capable PBXes; Powered by PoE or external source Support US or European electrical wall box mounting Tamper resistant design |
| Physical & Power | Front panel: Aluminum RAM / ROM: 2GB / 8GB Display: 10 Inch IPS LCD Screen: 10 Inch capacitive touch screen Memory slot：1 Micro SD slot RS485 port: Support Relays out: 2 Bell in: 1 I/O: 8 Microphone: -58dB Speaker: Dual speakers, 4Ω / 2W Ethernet ports: 2xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Tamper resistant: Support Installation: Wall-mounted & Desktop Dimension: 251x182.5x29.75mm Working Humidity: 10~90% Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | Display Mode: Normally black, Transmissive LCD Size: 10inch (Diagonal) Aspect Ratio: 16:10 Resolution: 1280x800 Contrast ratio: 900:1 Luminance: 280 cd/m2 Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower Touch Screen: Projected capacitive |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator Automatic Gain Control |
| Video | Streaming formats: H.263 & H.264 |
| Networking | Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) |
| Application Scenario | Villas Apartment complexes Home automation systems Modern interiors |
