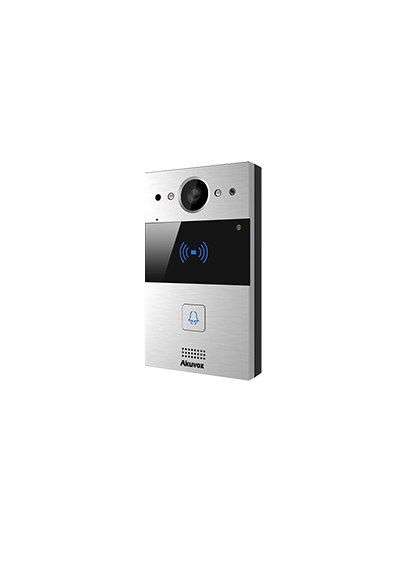

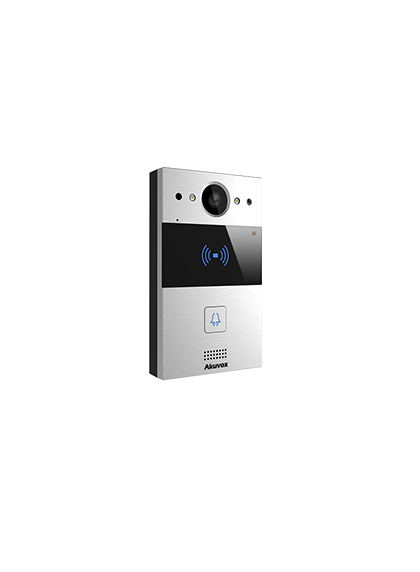

Perfect Doorphone choice for daily life
2-wire video intercom systems remain demanded as long as there are so many houses
left with old wiring in the walls, which is indeed problematic to replace. Akuvox came
up with a solution to address the issue to allow you to get the benefits of IP networktype system, but with old wiring and with no replacements done.
Features:
- Vandal resistant body, with a flush button
- Two-pin wire for power supply and network access
- Wide-angle camera: 110º (H), 58º (V)
- IC/ID Card Reader embedded;
- Two-way audio communication over IP networks with Echo Cancel & Noise suppression
- H.264 video compression;
| Specifications | |
| Physical & Power | Front panel: Aluminum alloy Camera: 2M pixels, automatic lighting Button: 1 call button Light sensor: Support Infrared sensor: Support Wiegand port: Support RS485 port: Support RF card reader: 13.56MHz (with NFC) & 125kHz Relays out: 1 Inputs: 1 Microphone: -40dB Speaker: 4Ω / 3W Power Interface：1 Power supply：48VDC two-wire power supply Water-proof & Dust-proof: IP65 Installation: Flush-mounted or Wall-mounted Flush-mounted DIM: 189x120x56.5mm Wall-mounted DIM: 145x85x27.5mm Working Humidity: 10~90% Working Temperature: -30°C ~ +60°C Storage Temperature: -40°C ~ +70°C |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Video | Sensor: 1/2.7”, CMOS Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264 Video resolution: up to 1920x1080p Max. image transfer rate: 1080p – 25fps Viewing angle: 110°(H) / 58°(V) High intensity IR LEDs for picture lighting during dark hours with internal light sensor Compatible to 3rd-Party-Video components, e.g. NVRs |
| Door Entry Feature | Relays controlled individually by DTMF tones Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) |
| Application Scenario | Office door phone with on-site or hosted IP-PBX Remote site entry over Internet Apartment/flat intercom with door access control |
