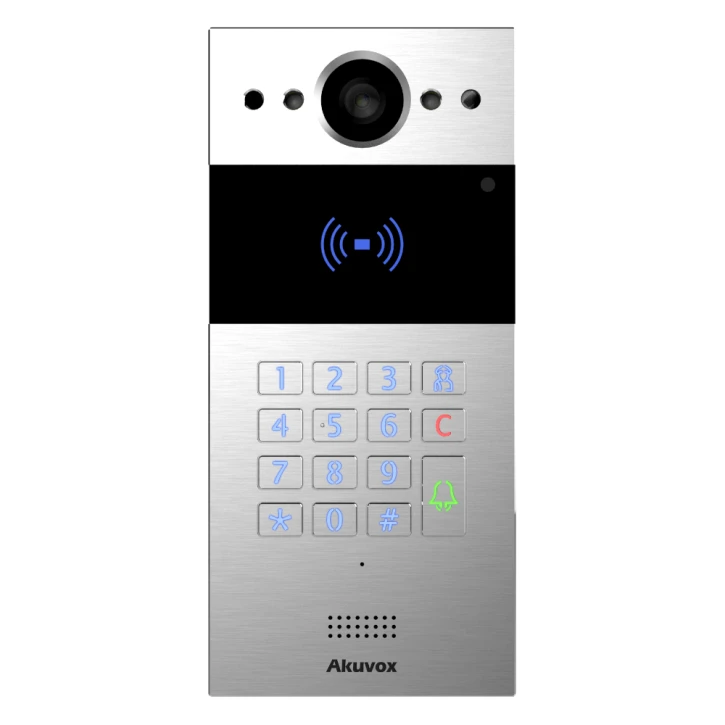

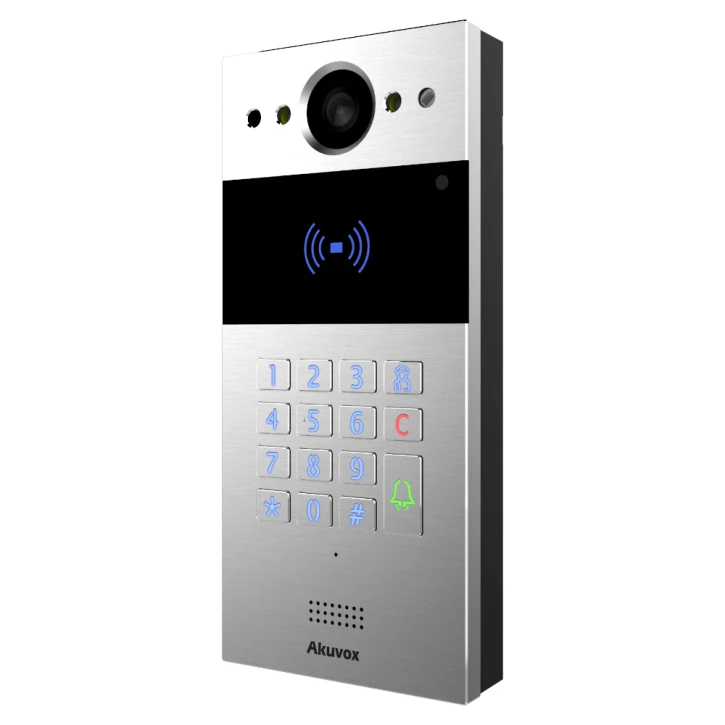

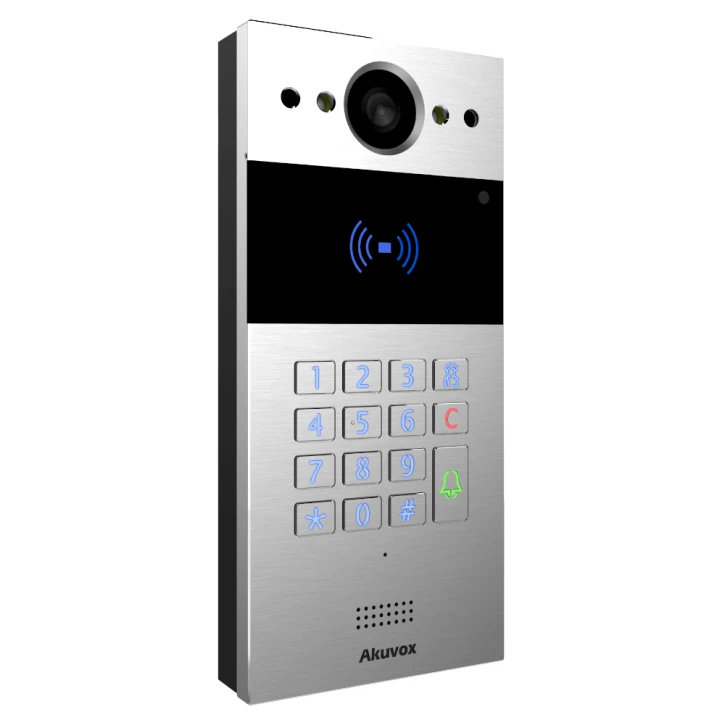

Akuvox - R20K - Multi-Subscriber Call Molding Silver Panel
The Akuvox R20K is one of the most compact and affordable multi-subscriber call panels on the market. Thanks to its modest dimensions, it can be installed where most competitors simply cannot. The same can be said of its price: a solution based on the R20K can accommodate even the most modest of budgets. At the same time, it is a fully featured SIP device that can solve the problem of providing access to apartment buildings or office centres.
Product Overview
Vandal-resistant IP intercom with numeric keypad, RF card reader, and two-way VoIP communication. The unit supports PoE (IEEE802.3af), SIP protocol for PBX integration, and ONVIF compliance for surveillance system compatibility.
Key Configuration
- • 110° horizontal / 58° vertical camera viewing angle
- • 2 relays (12V, 2A max load per relay) for door control and signaling peripherals
- • RFID reader: Mifare, Em-Marine, NFC (13.56 MHz and 125 kHz)
- • 1 x RJ45 10/100M Ethernet port, 1 x Wiegand port
Key Features
- • PoE IEEE802.3af — single cable for power and network
- • Two-way VoIP communication with echo cancellation
- • SIP standard compatible for direct connection to SIP PBXs
- • ONVIF compliant for surveillance system integration
- • IP65 moisture/dust protection, IK06 impact resistance
- • Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Technical Context
The unit combines access control (keypad + RFID card reader) with video intercom functions. SIP compliance enables direct registration to IP PBX systems without proprietary gateways. ONVIF compliance allows the video stream to be recorded by third-party VMS or NVRs. The two relays operate independently for door strike, maglock, or auxiliary device control.
Installation Notes
IP65 rated for outdoor exposure; IK06 vandal-resistant housing. PoE eliminates the need for a local power supply. Operating requires Cat5e/Cat6 cabling to the PoE switch. Wiegand port available for external card readers if needed.
| Vandal-proof Housing | Vandal-proof housing with numeric keypad IP65 (moisture and dust protection) IK06 (housing protection degree) |
| Camera Viewing Angle | 110° (horizontal) / 58° (vertical) |
| Power-over-Ethernet | PoE (IEEE802.3af) |
| RF Card Reader | Mifare, Em-Marine, NFC Supports 13.56 MHz and 125 kHz |
| Two-Way VoIP Communication | Two-way VoIP communication with echo cancellation SIP compatible for easy connection to SIP compatible PBXs SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Audio Codecs | Narrowband: G.711a, G.711μ, G.729 Wideband: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info |
| Audio Features | Echo cancellation, Voice activation, Comfort noise generator |
| ONVIF Compliance | ONVIF compliant for easy integration with any surveillance system |
| Relay Outputs | 2 relays for door position control and other signal peripherals Maximum connected load: 12 V, 2 A |
| Ports | 1 x RJ45 10/100M Ethernet port 1 x Wiegand port |
| Network Protocols | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Video | |
| Image Sensor | 1/2.7", CMOS |
| Video Formats | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video Codecs | H.264, H.265 |
| Maximum Resolution | Up to 1920x1080 (1080p) |
| Streaming Quality | 1080p at 25 fps |
| Built-in IR Illuminator | Powerful built-in IR illuminator with automatic night mode |
| Third-Party Compatibility | Compatible with third-party video surveillance systems (NVR/VMS) and ONVIF |
