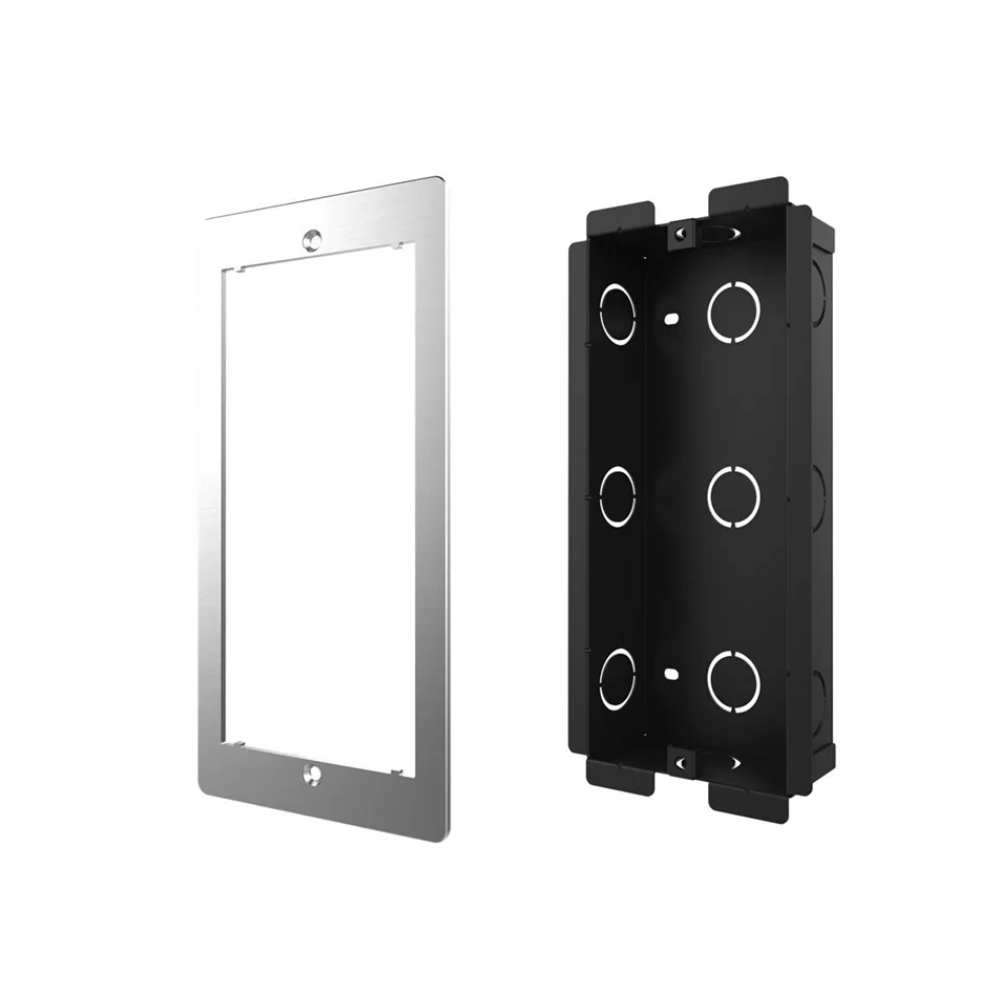

Akuvox R20K In-Wall Mounting Box For Flush-Mount / In-Wall / Recess-Mount Akuvox R20K Video Door Phone / Intercom Stations
| Installation Type | |
| Installation Type | Flush-Mount / In-Wall / Recessed |
| Dimensions | |
| Wall Cutout Dimensions (H × W × D) | 207 mm × 89 mm × 40 mm |
| Box Dimensions (H × W × D) | 205 mm × 88 mm × 40 mm |
| Material | |
| Material | Rugged plastic/metal composite (varies by regional kit version) |
| Kit Includes | |
| Included Components | 1x Flush-mounting box 1x Flush-mounting bracket/panel Mounting screws (ST4×20 and M4×15 Torx) Plastic wall anchors |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Installation Guide
0.4mb
