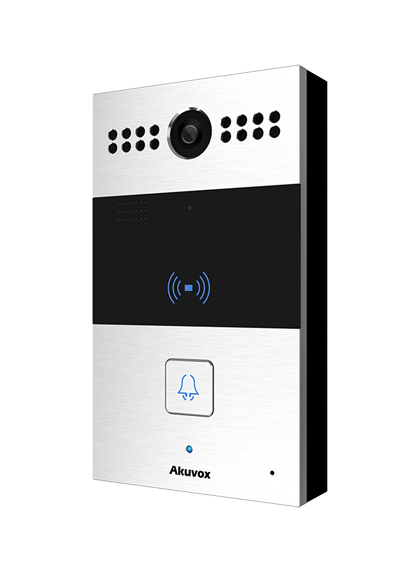

Akuvox - R26C - SIP Video One Button Doorphone With RF Card Reader

Part number:
R26C
Price:
  • • Vandal resistant body, with a flush button
  • • Wide-angle camera: 116º (H), 60º (V)
  • • PoE (IEEE802.3af, Power-over-Ethernet)
  • • Two-way audio communication over IP networks with Echo Cancel feature
  • • Complies with SIP standard for easy integration in every SIP capable PBXes
  • • Complies with ONVIF standard for easy integration with any network surveillance system
At a Glance
  • • Vandal resistant body, with a flush button;
  • • Wide-angle camera: 116° (H), 60° (V);
  • • PoE (IEEE802.3af, Power-over-Ethernet);
  • • Two-way audio communication over IP networks with Echo Cancel feature;
  • • Complies with SIP standard for easy integration in every SIP capable PBXes;
  • • Complies with ONVIF standard for easy integration with any network surveillance system
Physical & Power
  • • Front panel: Aluminum
  • • Camera: 2M pixels, automatic lighting
  • • Button: 1 call button
  • • Light sensor: Support
  • • Infrared sensor: Support
  • • Wiegand port: Support
  • • RS485 port: Support
  • • RF card reader: 13.56MHz
  • • Relays out: 2
  • • Inputs: 3
  • • Microphone: -40dB
  • • Speaker: 8Ω / 2W
  • • Power out: 12V/400mA
  • • Ethernet port: RJ45, 10/100Mbps adaptive
  • • 802.3af Power-over-Ethernet
  • • 12V DC connector (if not using PoE)
  • • Water-proof & Dust-proof: IP65
  • • Installation: Flush-mounted or Wall-mounted
  • • Flush-mounted DIM: 213x124x68mm
  • • Wall-mounted DIM: 190x110x40mm
  • • Working Humidity: 10~90%
  • • Working Temperature: -20°C ~ +55°C
  • • Storage Temperature: -40°C ~ +70°C
Audio
  • • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • • Narrowband audio codec: G.711a, G.711μ, G.729
  • • Broadband audio codec: G.722
  • • DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
  • • Echo Cancellation
  • • Voice Activation Detection
  • • Comfort Noise Generator
Video
  • • Sensor: 1/2.7”, CMOS
  • • Pixels: CIF, QCIF, VGA, 4CIF, 720p
  • • Video codec: H.264, H.265
  • • Video resolution: up to 1920x1080p
  • • Max. image transfer rate: 1080p – 30fps
  • • Viewing angle: 116°(H) / 60°(V)
  • • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • • Compatible to 3rd-Party-Video components,e.g. NVRs
Door Entry Feature
  • • Relays controlled individually by DTMF tones
  • • Camera permanently operational
  • • Auto-night mode with LED illumination
  • • White balance: auto
  • • Minimum illumination: 0.1LUX
Networking & Protocol
  • • Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
Deployment & Maintenance
  • • Auto-Provisioning
  • • Web management portal
  • • Web-based packet dump
  • • Configuration backup / restore
  • • Entry log export
  • • Access table export / import
  • • Firmware upgrade
  • • System logs (include door access logs)
Application Scenario
  • • Office door phone with on-site or hosted IP-PBX
  • • Remote site entry over Internet
  • • Apartment/flat intercom with door access control
Name
Description
Size
Downloads
File
Data Sheet
0.2mb
File
Manual
0.5mb

The peace of mind that comes with controlling who enters your building, and being able to verbally and visually confirm their identity, is invaluable. The Akuvox Video Doorphone R26C makes it easy to monitor an entrance door or gate, giving you peace of mind that your facility is secure.
