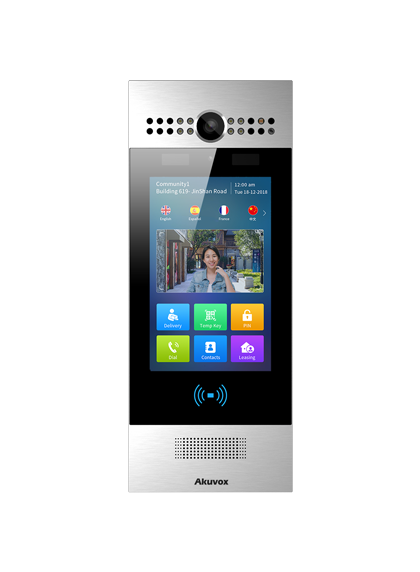

Akuvox - R29C - Video Doorphone

Name: Akuvox - R29C - Video Doorphone
Brand: Akuvox
SKU: R29C

Part number:

R29C

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The security that comes with being able to control who comes into your building, along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox's Video Doorphone R29S enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

Features:

• Enables audio and visual monitoring of doors/gates, which increases security on residential or commercial premises
• H.264 video and G.722 audio codec
• Android OS V5.1 for any 3rd party software or customization
• Display: 7” IPS LCD capacitive touch screen 1280x800
• Camera: Dual camera for anti-counterfeit
• Bluetooth and Wireless feature
• Water-proof & Dust-proof: IP65
• PoE (IEEE802.3af, Power-over-Ethernet)
• Support Wiegand, 13.56MHZ&125KHZ Card reader
• Installation: support Surface Mount and Flush Mount by using a different bracket or box
• Collision-proof: IK06

Physical & Power	• Front panel: Aluminum • RAM / ROM: 2GB / 16GB • Display: 7 Inch IPS LCD • Screen: 7 Inch capacitive touch screen • Main Camera: 3M pixels, automatic lighting • Auxiliary Camera: 1M pixels • Light sensor: Support • Infrared sensor: Support • Wiegand port: Support • RS485 port: Support • RF card reader: 13.56MHz & 125kHz • Relays ln/out: 3/3 • Microphone: -32dB • Speaker: 8Ω / 2W • Bluetooth: Support • Ethernet port: RJ45, 10/100Mbps adaptive • 802.3af Power-over-Ethernet • 12V DC connector (if not using PoE) • IP/IK Level: IP65/ IK06 • Installation: Flush-mounted & Wall-mounted • Flush-mounted DIM: 324x130x60mm • Wall-mounted DIM: 324x130x33mm • Working Humidity: 10-90% • Working Temperature: -20°C - +55°C • Storage Temperature: -40°C - +70°C
Audio	• SIP v1 (RFC2543), SIP v2 (RFC3261) • Narrowband audio codec: G.711a, G.711μ, G.729 • Broadband audio codec: G.722 • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info • Echo Cancellation • Voice Activation Detection • Comfort Noise Generator
Video	• Sensor: 1/3", CMOS • Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p • Video codec: H.264 • Video resolution: up to 1920x1080p • Max. image transfer rate: 1080p - 25fps • Viewing angle: 120*(H)/ 64°(V) • High intensity IR LEDs for picture lighting during dark hours with internal light sensor • White LEDs for QR code scanning • Compatible to 3rd-party video components,
Networking and Protocol	• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature	• Android OS for any 3rd-party software or customization • Relays controlled individually by DTMF tones • Multi-way Unlock: Face, IC/ID Card, PIN and BLE • Camera permanently operational • Auto-night mode with LED illumination • White balance: auto • Minimum illumination: 0.1LUX
Deployment & Maintenance	• Auto-Provisioning • Web management portal • Web-based packet dump • Configuration backup / restore • Entry log export • Access table export / import • Firmware upgrade • System logs (include door access logs)
Application Scenario	• Office door phone with on-site or hosted IP-PBX • Remote site entry over Internet • Apartment/flat intercom with door access control • Business information or a welcome experience for guests

Name

Description

Size

Downloads

File

Datasheet

0.3mb
