Perfect Doorphone choice for daily life.

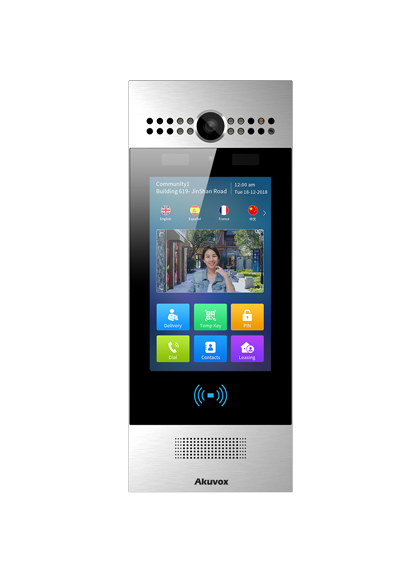

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox's Video Doorphone R29S enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.
Features:
- Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;
- Allows both audio and video communication to an IP phone, mobile client, or softphone;
- Enables the ability to remotely control the door/gate;
- Presents information and user navigation options unique to your business;
- Eliminates the need for personnel to be physically stationed at the door/gate which improves productivity and frees them up to work on other things;
- Speeds response time to visitors, delivery and service personnel that require access;
- H.264 video and G.722 audio codec
- Android OS V5.1 for any 3rd party software or customization
- Display: 7” IPS LCD capacitive touch screen 1280x800
- Camera: 3 Mega pixels, automatic lighting
- Water-proof & Dust-proof: IP65
- Collision-proof: IK06
- PoE
(IEEE802.3af, Power-over-Ethernet) 8.Support Wiegand, - 56MHZ&125KHZ Card reader
- Complies with SIP standard for easy integration in every SIP PBX
- Installation: support Surface Mount and Flush Mount by using different bracket or box
| Specifications | |
| Physical & Power | Front panel: Aluminum RAM / ROM: 2GB / 16GB Display: 7 Inch IPS LCD Screen: 7 Inch capacitive touch screen Main Camera: 3M pixels, automatic lighting Auxiliary Camera: 1M pixels Light sensor: Support Infrared sensor: Support Wiegand port: Support RS485 port: Support RF card reader: 13.56MHz & 125kHz Relays ln/out: 3/3 Microphone: -32dB Speaker: 8Ω / 2W Bluetooth: Support Ethernet port: RJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) IP/IK Level: IP65/ IK06 Installation: Flush-mounted & Wall-mounted Flush-mounted DIM: 324x130x60mm Wall-mounted DIM: 324x130x33mm Working Humidity: 10-90% Working Temperature: -20°C - +55°C Storage Temperature: -40°C - +70°C |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Video | Sensor: 1/3", CMOS Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264 Video resolution: up to 1920x1080p Max. image transfer rate: 1080p - 25fps Viewing angle: 120*(H)/ 64°(V) High intensity IR LEDs for picture lighting during dark hours with internal light sensor White LEDs for QR code scanning Compatible to 3rd-party video components |
| Networking and Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | Android OS for any 3rd-party software or customization Relays controlled individually by DTMF tones Multi-way Unlock: Face, IC/ID Card, PIN and BLE Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) |
| Application Scenario | Office door phone with on-site or hosted IP-PBX Remote site entry over Internet Apartment/flat intercom with door access control Business information or a welcome experience for guests |
