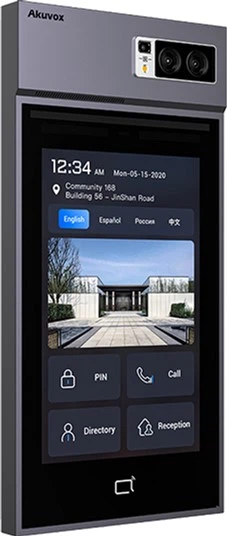

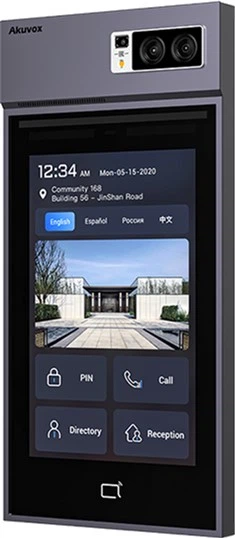

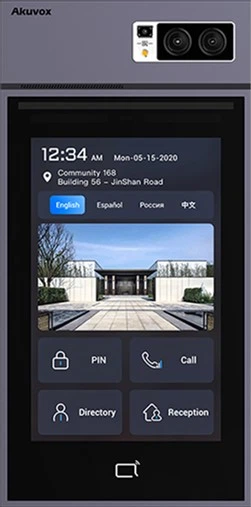

Akuvox S539 is an indoor monitor featuring a 10" touch screen with space grey aluminum alloy front panel. It includes triple cameras, 13.56MHz and 125kHz RF card reader, and runs on Android OS. The device supports surface mount and flush mount installation with IP66 and IK08 ratings.
Key Configuration
- • Display: 10-inch touch screen
- • Front panel: space grey aluminum alloy
- • RF card reader: 13.56MHz and 125kHz
- • Cameras: triple cameras
- • Power: PoE+ or external power supply
| Physical & Power | |
|---|---|
| Front Panel | Aluminum |
| Display | 10 Inch IPS LCD |
| Main Camera | 5M pixels, with starlight |
| Light Sensor | Support |
| Motion Sensor | Support |
| Wiegand Port | 1ch input/output (selectable) |
| RS485 Port | Support |
| Line Out | Support |
| RF Reader | 13.56 MHz & 125 kHz, NFC (only Android) |
| Relays Out | 3 |
| Inputs | 3 |
| Microphone | 2 |
| Speaker | 2 |
| Reset | 1 |
| BLE / Bluetooth | Support BT5.0 |
| Tamper Alarm | Support |
| Ethernet port | 1 × RJ45, 10/100 Mbps adaptive |
| PoE Standard | 802.3at Power-over-Ethernet |
| Power Supply | DC12V / 3A or DC24V / 1.5A |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Installation | Flush-mounted & Wall-mounted |
| Dimensions (H × W × D) | 363.5 × 179.8 × 30.8 mm |
| Working Humidity | 10 ~ 90% |
| Working Temperature | -30°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Audio | |
| SIP Protocols | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec | G.711a, G.711μ |
| Wideband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | Yes |
| Voice Activation Detection | Yes |
| Comfort Noise Generator | Yes |
| Video | |
| Sensor (Main Camera) | 1/2.7", CMOS |
| Pixel Resolutions | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video technology | HDR |
| Video resolution (max) | up to 1920 × 1080 |
