Akuvox - S567W - SIP 10-Inch Touch Screen Indoor Android Answer Monitor With Wi-Fi

Part number:
Price:

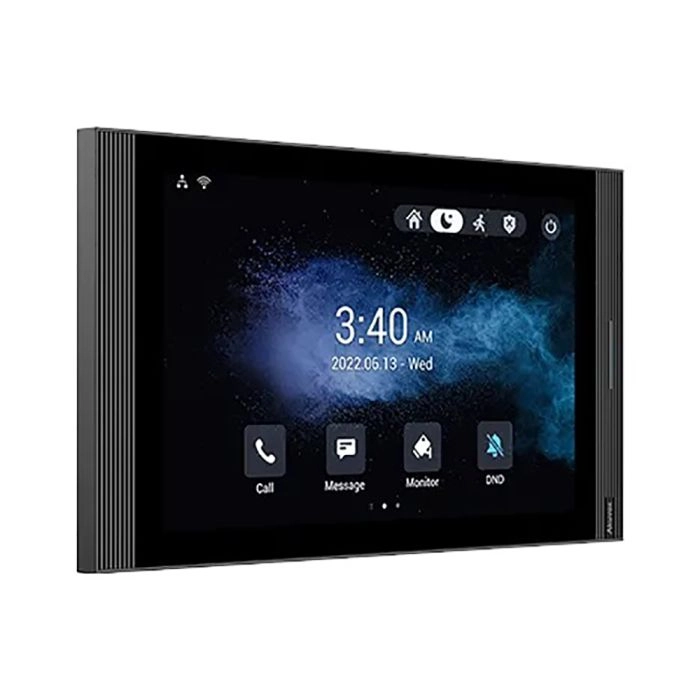

Akuvox S567W is an indoor multifunctional Android answering monitor providing audio and video communication with Akuvox door phones. It runs on Android 12 OS and features a 10-inch capacitive touch screen with 1280×800 resolution IPS LCD. The device supports two-way audio communication, SIP standard for PBX integration, Wi-Fi 6, Bluetooth, and a quad-speaker quad-channel sound system.


Key Configuration

  • • Display: 10-inch capacitive touch screen, 1280×800 resolution, IPS LCD
  • • Operating system: Android 12
  • • Audio: quad-speaker, quad-channel sound system
  • • Wireless: Wi-Fi 6 and Bluetooth
  • • Power: PoE or external source


Key Features

• Two-way audio communication with other units in the network
• Complies with SIP standard for integration with SIP-capable PBXes
• View CCTV cameras and control smart devices; supports 3rd party surveillance camera integration
• Voice-changing function to protect children and women living alone
• Built-in smart voice assistant for hands-free actions (answer intercom calls, unlock door with voice)
• Automatically adjusts screen brightness according to ambient brightness
• Seamless integration of 3rd party apps for smart living (security, lighting, appliances)

Physical & Power
Front panelPlastic
RAM / ROM4 GB / 16 GB
Display10 Inch IPS LCD
Screen10 Inch capacitive touch screen
Wi-FiIEEE802.11 b/g/n/ax
Bluetooth5.0
RS485 port1
Relay out2
Bell in1
Alarm output8
MicrophoneDual microphones
SpeakersQuad speakers
Ethernet ports1 × RJ45
Power802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Tamper ResistantSupport
InstallationWall-mounted & Desktop
Dimensions278 × 164 × 22.8 mm
Working Humidity10 ~ 90%
Working Temperature-10°C ~ +45°C
Storage Temperature-20°C ~ +70°C
Touch Screen Display
Display ModeNormally black, Transmissive
LCD Size10 inch (Diagonal)
Resolution1280 × 800
Aspect Ratio16:10
Luminance290 cd/m²
Viewing Angle80° Left, 80° Right, 80° Upper, 80° Lower
Touch ScreenProjected capacitive
Audio
SIP ProtocolsSIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codecG.711a, G.711μ, G.729
Broadband audio codecG.722
DTMFIn-band, out-of-band DTMF (RFC2833), SIP Info
Echo CancellationYes
Voice Activation DetectionYes
Comfort Noise GeneratorYes
Automatic Gain ControlYes
Video
Streaming formatsH.263 & H.264
Networking
Protocols supportIPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
FeaturesAuto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Firmware upgrade
System logs (include door access logs)
Voice Assistant
Voice pickup distanceup to 5 meters
Voice recognition accuracyup to 95%
Privacy protectionwith native voice data
Supported languageEnglish
