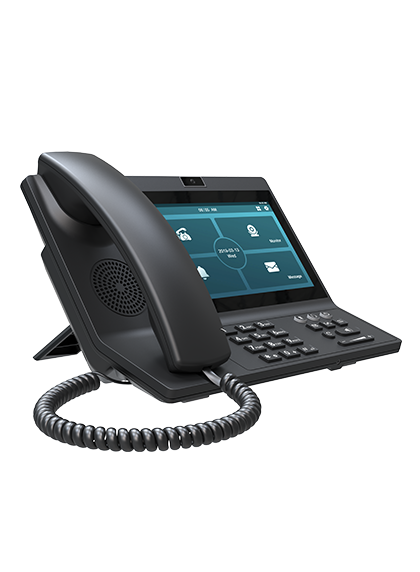

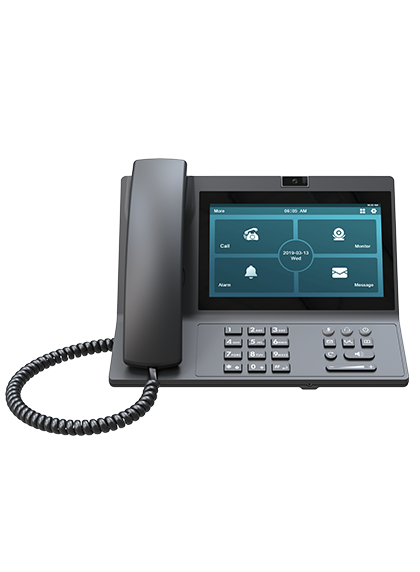

The VP-R49G is an Android-based multimedia terminal with a 7 inch touch screen and a 2M CMOS sensor camera. It supports H.264/H.263 codecs with adaptive bandwidth adjustment. The 7” touch screen offers excellent user experiences such as high quality videophone, smooth internet surfing, various Android Apps and daily information.
Features:
- 7 inch capacitive touch screen TFT LCD, 1024*600 pixels
- 2 M pixels CMOS camera with privacy shutter
- Dual switched 10/100/1000Mbps Ethernet ports, Bluetooth, USB, PoE and Wireless feature
- Android 9.0 Operating System and support Android API for the 3rd party Android application installation.
| Specifications | |
| Video Features | Video Codec: H.263, H.264, H.265, VP8 Video Solution: QCIF, CIF, VGA, 4CIF, 720P Video Bitrate: 64kbps-2Mbps Adaptive Bandwidth Adjustment Video Character: PIP, Full Screen, Local Video ON/OFF Control, Color Enhancement Image Codec: JPEG, GIF, PNG, BMP Hardware Encode/Decode Acceleration Variable Bit-Rate |
| Audio Features | Wideband Audio Codec: G.722 Narrowband Audio Codec: PCMA, PCMU, OPUS, iLBC, G.729 Noise Suppression, VAD, CNG, AGC, Audio Accelerator Echo Cancelation: AEC, AES, NLP Full-Duplex Speakerphone 4 DTMF modes: RFC2833, In-Band, SIP INFO, Auto |
| Network and Security | SIP V1(RFC2543), SIP V2(RFC3261) Network Type: IPv4 & IPv6 UDP Keep Alive NAT traversal: STUN IP Assignment: DHCP, Static IP, PPPoE, VPN, VLAN QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ) Protocols: HTTP/HTTPS/FTP/TFTP/SNMP/DNS/SNTP/RTSP/SRTP/RTP/TCP/UDP/TLS/ICMP/DHCP/ARP/DNS-SRV/PNP/ZRTP Digest Authentication Using MD5/MD5-sess AES encryption for configuration file Access for Administration |
| Wireless | Wideband Audio Codec: G.722 Frequency: 2.400 GHz ~ 2.497 GHz Channels: No Bandwidth: 20MHz E.I.R.P: 802.11b /11Mbps : 18 dBm E.I.R.P: 802.11g /54Mbps : 17 dBm E.I.R.P: 802.11n /65Mbps : 16 dBm Modulation mode: 802.11b: DQPSK, DBPSK, CCK Modulation mode: 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK Bluetooth: E.I.R.P 11dBm Antenna type: Monopole Antenna |
| Phone Features | Android 9.0 Operation System Support 2 SIP accounts Call Waiting Call Transfer Call Hold Mute Auto Redial, Call Return Speed Dial Direct IP call Dial Plan Hotline Multicast Paging Action URL/URI Local Audio/Video Call Recording Conference DND (Do Not Disturb) Volume Adjustable Ring Tones Selectable Multi-Languages Support Daylight Saving Time Default Apps: Browser, Calculator, Calendar, Camera, Clock, Contacts, Dial, Downloads, Explorer, Gallery, Message, Music, Phone Settings, Reboot Setting, Search, Settings, Sound Recorder, Surveillance, Video. 3rd Party Android Applications |
| Directory | Local Phonebook up to 3000 Groups Phonebook with Contact Picture Call Logs: 600 Entries (200 Missed Calls; 200 Dialed Calls; 200 Received Calls.) Intelligent Search Method Favorites Blacklist LDAP Management Firmware Local Update: USB Flash Disk Firmware Remote Update: HTTP/HTTPS method on Web Auto Provisioning Using FTP/TFTP/HTTP/HTTPS, PNP/DHCP Option/Manual/Automatic methods System Log Export Restore to Factory Default Configuration Managements Via LCD |
| Physical Features | 7 Inch Capacitive Touch Screen, Resolution 1024*600, 16:9 Wide Screen Aspect Ratio 3 LED Lights (1 Power Light, 1 Network Light, and 1 Message Light) Flash Memory 8GB 2GB DDR3 Memory Foot Stand 2 Mega Pixels CMOS Camera RJ9 Handset 3.5mm Headset jack 2 RJ45 10/100/1000M Ethernet Jacks Energy Efficient Ethernet: IEEE802.3az Power over Ethernet: IEEE802.3af Bluetooth Wireless Access: 802.11b/g/n 1 Type C 1 HDMI Video Out Port Power Adapter: AC 100~240V Input, DC 12V/1A Output Dimensions: 250x210x98 (mm) Operating Temperature: 32º ~ 104ºF (0~ 40ºC) Storage Temperature: -4º~ 158ºF (-20 ~ 70ºC) Operating Humidity: 10% to 90% Noncondensing Storage Humidity: 10% to 90% Noncondensing Power consumption (approx.): 12W Weight (approx.): 1.72kg Giftbox Size: 498x254x148(mm) |
