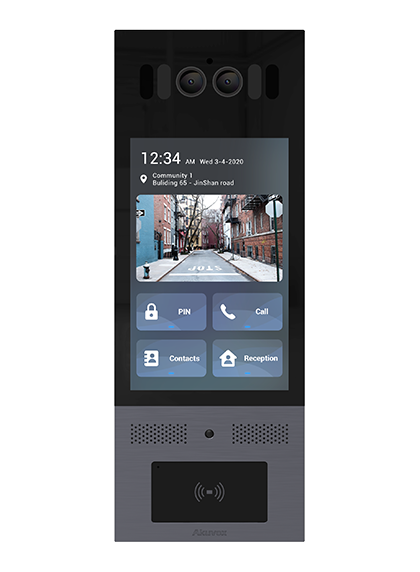

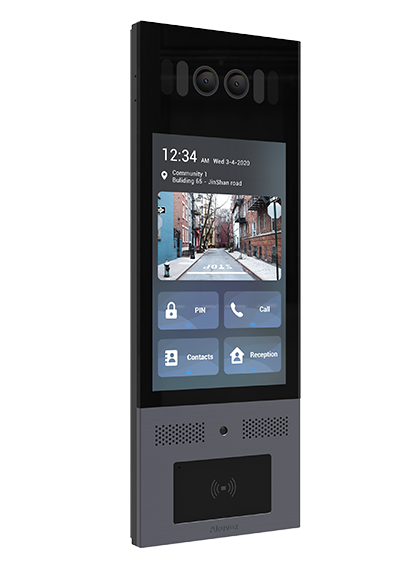

Akuvox’s X915S is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings
Features:
- H.264 video and G.722 audio codec
- Android OS V9.0 for any 3rd party software or customization
- 316 grade stainless steel
- Display:8” IPS LCD capacitive touch screen 1920x1080
- Camera: Dual camera for anti-counterfeit with one starlight camera
- Bluetooth, and Wireless feature
- Water-proof & Dust-proof: IP65
- PoE (IEEE802.3af, Power-over-Ethernet)
- Support Wiegand, 13.56MHZ&125KHZ Card reader
- Installation: support Surface Mount and Flush Mount by using different bracket or box
| Specifications | |
| Physical & Power | Front Panel: 316 grade stainless steel RAM / ROM: 2GB / 16GB Display: 8 Inch IPS LCD Main Camera: 2M pixels, with starlight Light Sensor: Support Infrared Sensor: Support Wiegand Port: Support RS485 Port: Support Line Out: Support RF Card Reader: 13.56MHz & 125kHz Relays Out: 3 Inputs: 3 Microphone: 2, -42dB Speaker: 2, 8Ω / 2W Reset Button: 1 Ethernet port: 1xRJ45, 10/100Mbps adaptive IEEE 802.3at PoE+ 12~24V DC connector (if not using PoE+) Water-proof & Dust-proof: IP65 Installation: Flush-mounted & Wall-mounted Flush-mounted DIM: 350x130x53.9mm Wall-mounted DIM: 350x130x41.6mm Working Humidity: 10~90% Working Temperature: -30°C ~ +60°C Storage Temperature: -30°C ~ +70°C |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Video | Sensor: 1/2.8”, CMOS for main camera Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264 Video technology: HDR Video resolution: up to 1920x1080p Max. image transfer rate: 1080p – 30fps Viewing angle: 115°(H) / 63°(V) Compatible to 3rd-Party-Video components, e.g. NVRs |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | Android OS for any 3rd party software or customization Relays controlled individually by DTMF tones Multi-way Unlock: Face, Card, PIN, BLE & QR code Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) |
