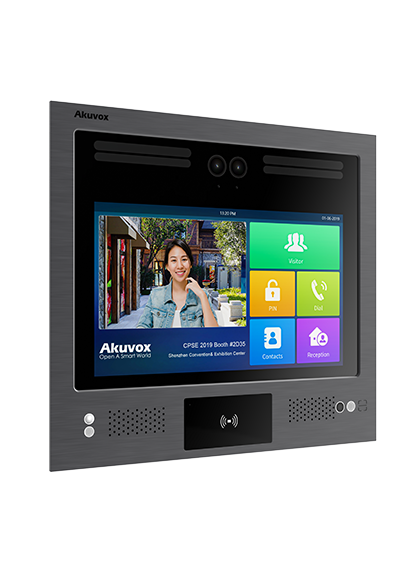

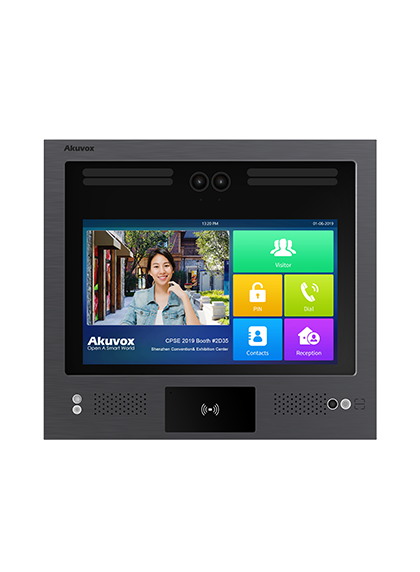

Akuvox’s X916S is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.
Features:
- H.264 video and G.722 audio codec
- Front Panel: 316 grade stainless steel
- Android OS V9.0 for any 3rd party software or customization
- FDD-LTE Bands: B1, B3, B7, B8, B20, B28A
- Display: 13" fully-color IPS LCD
- Camera: Three cameras for anti-counterfeit and QR code scane
- Water-proof & Dust-proof: IP65
- Collision-proof: IK06
- Support Wiegand, RS485, 13.56MHZ&125KHZ Card reader
- Complies with ONVIF standard for easy integration with any network surveillance system
- Installation: Support Surface Mount and Flush Mount by using different bracket or box
| Specifications | |
| Physical & Power | Front Panel: 316 grade stainless steel RAM / ROM: 2GB / 16GB Display: 13 Inch IPS LCD Main Camera: 2M pixels, with starlight Auxiliary Camera 1: 2M pixels Auxiliary Camera 2: 0.3M pixels Light sensor: Support Infrared sensor: Support Wiegand port: Support RS485 port: Support RF card reader: 13.56MHz & 125kHz Relays out: 4 Inputs: 4 Reset button: 1 USB Interface: 2 HDMI Interface: 1 TF Card Slot: 1 Microphone: 2, -42dB Speaker: 2, 8Ω / 2W Power out: 12V / 500mA Ethernet port: 2xRJ45, 10/100/1000Mbps adaptive IEEE 802.3at PoE+ 12~24V DC connector (if not using PoE+) Water-proof & Dust-proof: IP65 lK Rating: IK07 Installation: Flush-mounted & Wall-mounted Flush-mounted DIM: 383.9x339.15x63.7mm Wall-mounted DIM: 383.9x339.15x48.95mm Working Humidity: 10~90% Working Temperature: -20°C ~ +55°C Storage Temperature: -40°C ~ +70°C |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Video | Sensor: 1/2.8”, CMOS for main camera Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264 Video technology: HDR Video resolution: up to 1920x1080p Max. image transfer rate: 1080p – 30fps Viewing angle: 115°(H) / 63°(V) Compatible to 3rd-Party-Video components, e.g. NVRs |
| Door Entry Feature | Relays controlled individually by DTMF tones Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) |
| Application Scenario | Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings |
