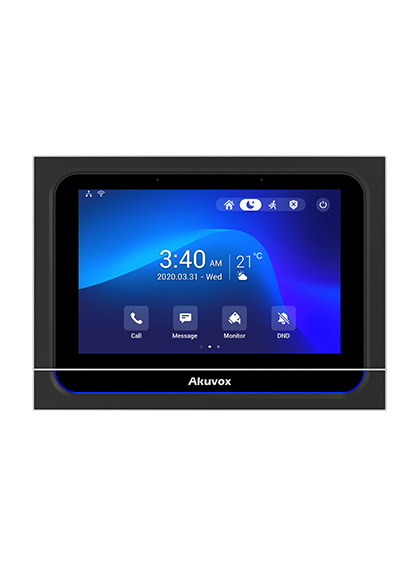

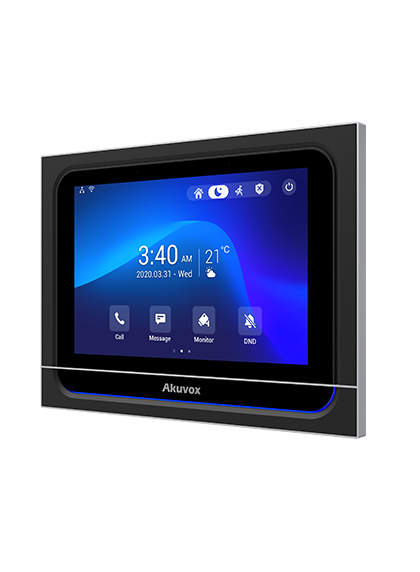

The Akuvox X933W multifunctional communicator, with an Android 9.0 operating system, provides ultimate audio and video communication with door phones via SIP 2.0 protocol.It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.
Features:
- Stylish appearance from Italy
- Excellent performance with Android 9.0 system
- Ultimate visual experience with 1280 x 800 resolution in 7-inch screen
- A real smart home with Zigbee 3.0
- HD audio/video communication with other units in the network
- Powered by PoE or external source
- Support US or European electrical wall box mounting
| Specifications | |
| Physical & Power | Front panel: Plastic RAM / ROM: 2GB / 8GB Display: 7 Inch IPS LCD Screen: 7 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz Bluetooth: BLE 4.1 RS485 port: Support Relays out: 2 Bell in: 1 I/O: 8 Microphone: Dual microphone,-26dB Speaker: Dual speakers, 4Ω / 3W Ethernet ports: 1xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Tamper resistant: Support Installation: Wall-mounted Dimension: 205x148x27.5mm Working Humidity: 10~90% Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | Display Mode: Normally black, Transmissive LCD Size: 7inch (Diagonal) Aspect Ratio: 16:10 Resolution: 1280x800 Contrast ratio: 900:1 Luminance: 350 cd/m2 Viewing Angle: 89° Left, 89° Right, 89° Upper, 89° Lower Touch Screen: Projected capacitive |
| Audio & Video | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator Automatic Gain Control Video Streaming formats: H.263 & H.264 |
| Networking | Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) |
| Voice Assistant | Voice pickup distance up to 5 meters Voice recognition accuracy up to 95% Privacy protection with native voice data English only |
