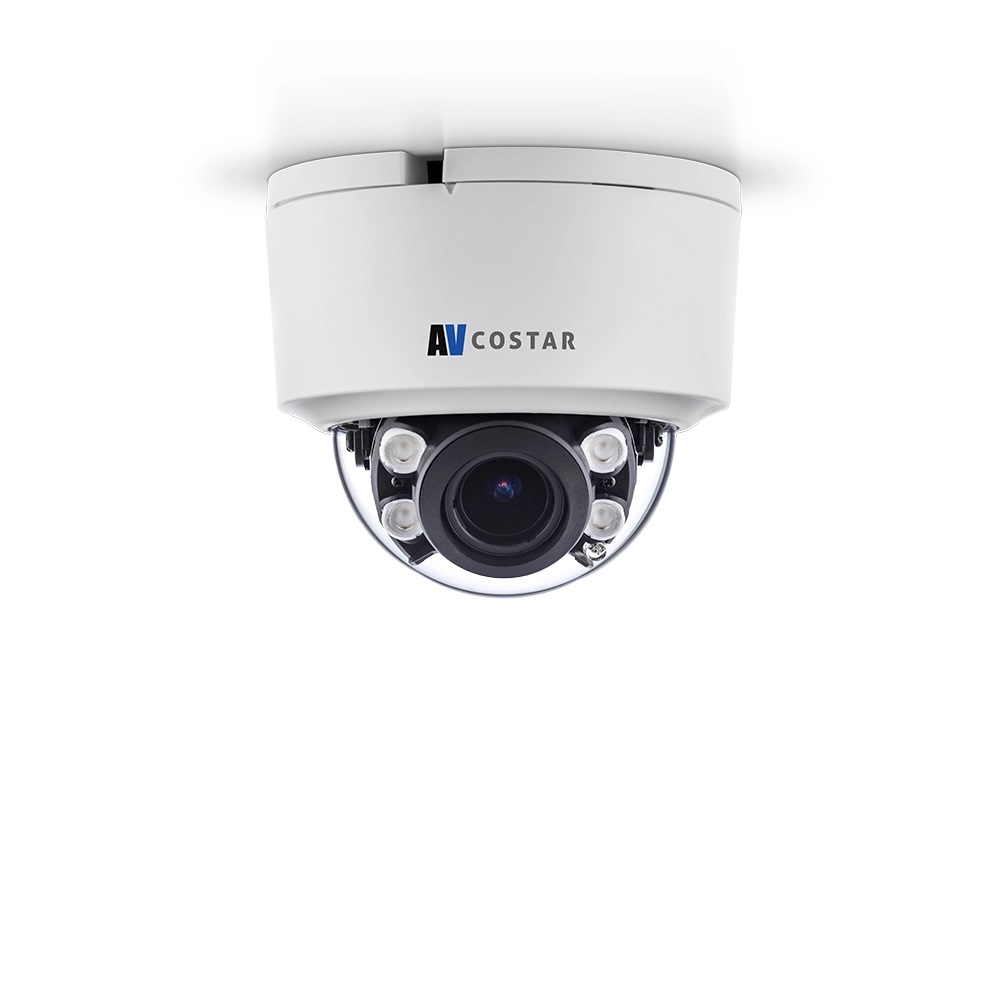

IDIS - AV02CID-200 - 2 MP Network IR Indoor Dome Camera with 3-13.5mm Lens
Part number:
AV02CID-200
Price:
- • 1080p (2.1MP)
- • Fixed and Varifocal Lens Options
- • Remote Focus/Zoom Motorized Lens (-200 Models Only)
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • CorridorView Allows 90° Image Rotation
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • On-Screen Display (OSD)
| Camera | |
|---|---|
| Image Sensor | 1080p (2.1MP) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode): 0.04 Lux |
| B/W (Night Mode): 0.005 Lux | |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling | Yes (See Scaling Resolutions Below) |
| IR Illumination | 66ft (20m) max |
| Dynamic Range | 120dB DOL WDR |
| Frame Rates | Single Stream: Up to 30fps (1080p) Enhanced WDR on; 60fps (1080p) off |
| Multi-Stream: Up to 60fps (1080p) + 60fps (1080p) + 60fps (360p) Enhanced WDR off; Up to 30fps (1080p) + 30fps (1080p) + 30fps (360p) Enhanced WDR on | |
| Lens | |
| Motorized Lens (-200 Models) | 2.7–13.5mm, F1.4, H-FOV = 28°–100°, V-FOV = 16°–54° |
| Fixed Lens (-201 Models) | 3.6mm, F2.0, H-FOV = 84°, V-FOV = 45° |
| Programmability | |
| Optics | Remote focus, remote zoom (-200 models only) |
| Low-Light Performance | NightView™ technology |
| Smart IR | Programmable |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 1080p: 1920x1080, 1280x720, 960x540, 640x480, 640x360 |
| 5MP: 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 | |
| Wide Dynamic Range | 120dB DOL WDR |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings (CE) | EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Environmental | |
| Operating Temperature | -10°C (14°F) to +50°C (122°F) |
| Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -10°C (14°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) on pigtail cable |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC |
| Power Consumption | 1080p: 8.5W max |
| 5MP: 10W max | |
| IR Illuminator | |
| LEDs | 4pcs, Smart IR |
| Projection Distance | 66ft (20m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in* / Line output |
| Mechanical | |
| Casing | Plastic surface mount chassis with polycarbonate dome bubble |
| Gimbal | Easy 3-axis camera adjustment with 355° pan, and 60° tilt, and 180° Z-rotation |
| Dimensions | Unit: Ø 4.52" (114.8mm) x 3.65" H (92.6mm) |
| Packaged: 6.1" W (155mm) x 6.5" H (165mm) x 6.0" D (152mm) | |
| Weight | Unit: 0.79lbs (0.36kg) |
| Packaged: 1.21lbs (0.55kg) | |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
The ConteraIP Indoor Dome megapixel camera features 1080p resolution for optimal performance. It combines a day/night mechanical IR cut filter with an integrated fixed or motorised remote focus and zoom varifocal lens to deliver excellent image quality in all lighting conditions. The ConteraIP Indoor Dome is prepared for any lighting condition, regardless of the time of day. For applications with poor lighting conditions, enhanced WDR (wide dynamic range) at 120 dB provides optimal visual balance in shaded and bright lighting conditions. NightView offers strong low-light sensitivity for capturing details in extremely poorly lit scenes, providing clear colour images in low light. Built-in Smart IR LED illumination automatically adjusts its output according to the distance of objects in view, preventing over-exposure when objects are very close to the camera.
