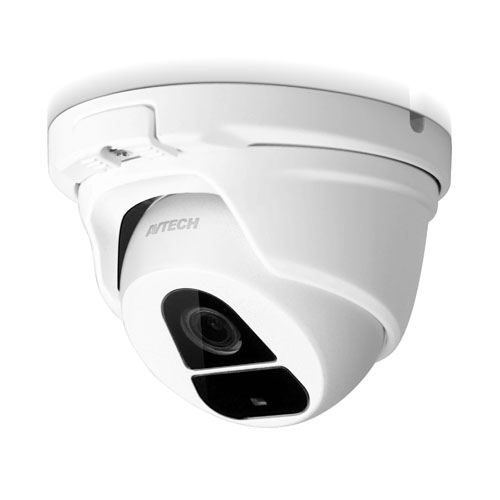

AVTech - DGC1104XFT - HD CCTV 1080P IR Dome Camera

The AVTECH DGC1104XFT is a compact 1080P HD CCTV IR dome camera featuring a 1/2.7" CMOS sensor and a f3.6mm/F1.8 lens. It delivers high-definition video at 30 fps with reliable low-light performance down to 0.1 Lux. Equipped with DWDR for balanced exposure and an IR range of 25 metres, this IP66-rated camera is built for durable, high-clearance monitoring in both indoor and outdoor environments.

Key Configuration

• • Pick-up element: 1/2.7" CMOS image sensor with effective pixels: 1,936 (H) x 1,096 (V).
• • Video frame rate: 1080p at 30 or 25 fps.
• • Lens: f/3.6 mm, f/1.8; lens angle: 89° horizontal, 46° vertical, 108° diagonal
• • IR: two LEDs; effective distance of up to 25 metres
• • Power: DC 12 V / 0.5 A; current consumption: 95 mA (IR off), 265 mA (IR on).

Key Features

Key features include DWDR for balanced exposure, noise reduction, and adjustable image settings like AGC, BLC, and sharpness. Optimized for stability, it includes a flickerless mode and allows for direct parameter adjustments when paired with an AVTECH HD CCTV DVR.

Technical Context

With an IP66-rated weatherproof housing and a net weight of 0.32 kg, this camera is designed for extreme environments, operating from -40°C to 40°C. It features a fast shutter speed up to 1/50,000 sec and a clear 48dB S/N ratio for high-quality imaging. Supporting both Day & Night mode and IR shift, this CE-certified camera ensures reliable, round-the-clock performance in diverse conditions.
