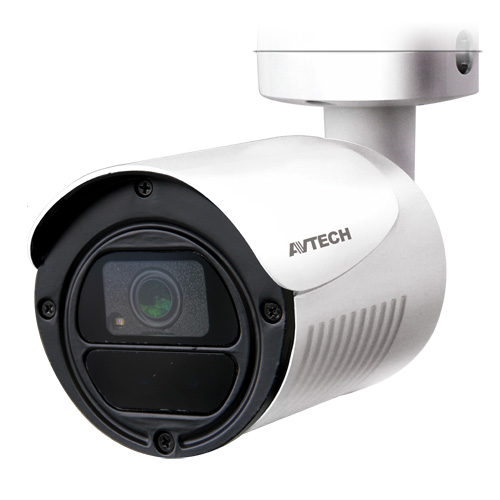

AVTECH - DGC1125AXT - HD CCTV 1080P IR Bullet Camera
Part number:
DGC1125AXT
Price:
HD CCTV 1080P IR Bullet Camera
Features:
- 1/2.9” CMOS Sensor with 1080P video output
- Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
- DWDR to increase image recognizability in overexposure and dark areas
- Day and night 24-hour surveillance with IR effective distance up to 25 meters
- IP66 for weather-proof application
- Camera parameters adjustable when used with AVTECH HD CCTV DVR
| MODEL | DGC1125AXT |
| Pick-up Element | 1/ 2.9” SONY CMOS image sensor |
| Number of Pixels | 1985(H) x 1100(V) |
| Video Frame Rate | 1080P@30fps / 1080P@25fps |
| Min. Illumination | 0.1 Lux / F1.8, 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | 1/30 (1/25) sec ~ 1/50000 sec |
| Lens | f3.6mm / F1.8 f2.8mm / F2.0 |
| IR LED | 2 units |
| IR Effective Distance | Up to 25 meters |
| IR Shift | YES |
| Day & Night Mode | YES |
| IRIS Mode | AES |
| White Balance | AUTO / INDOOR / OUTDOOR / MANUAL |
| AGC | Adjustable |
| Sharpness | Adjustable |
| DWDR | YES |
| Noise Reduction | YES |
| IP Rating | IP66 |
| Operating Temperature | -40℃ ~ 40℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 0.5A |
| Current Consumption (±10%) | 120mA (IR LED OFF) / 270mA (IR LED ON) |
| Net Weight (kg) | 0.36 |
| Optional Junction Box | AVA456-WHKT / AVA456-WBKT |
| Certification | CE |
