Digital Watchdog - DW-BJP2U60T-LX - Blackjack P-RACK NVRs Powered by DW Spectrum IPVMS, 60 Terabyte, 4 Camera Licenses Pre-installed
Product Overview

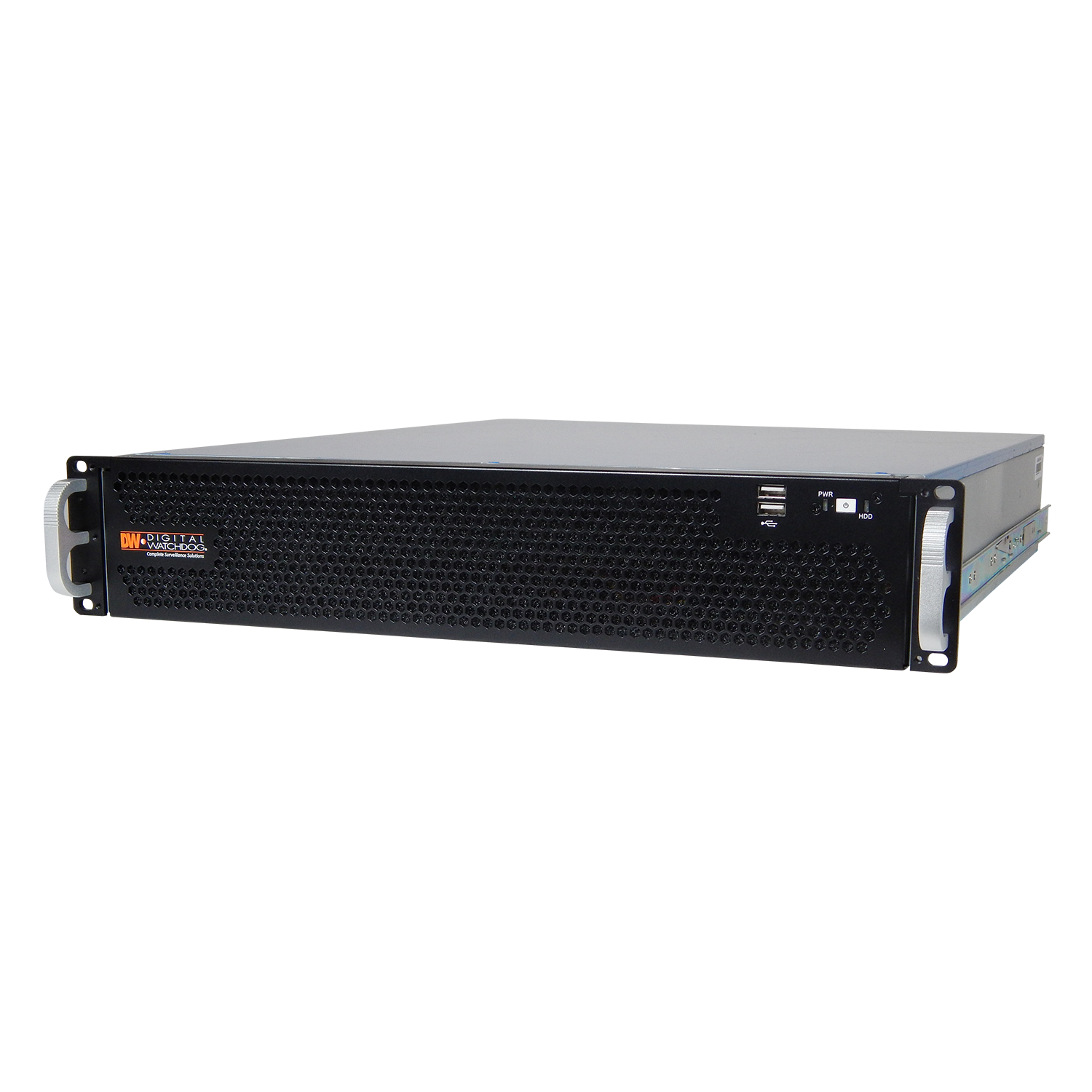

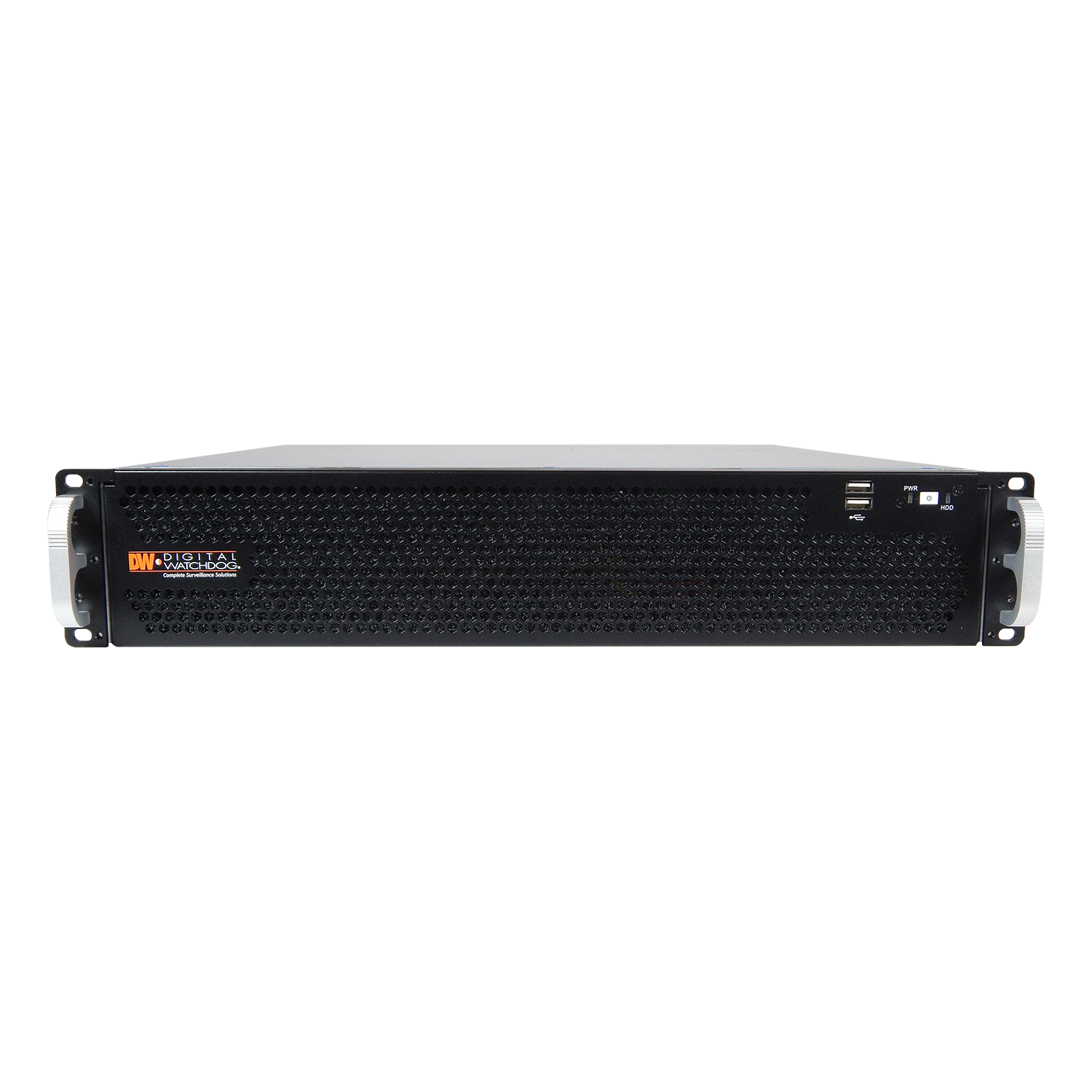

The DW-BJP2U60T-LX is a high-performance Blackjack P-RACK NVR pre-loaded with DW Spectrum® IPVMS and 4 camera licenses. Powered by an Intel i7 with 16GB RAM and Linux Ubuntu, it delivers 600 Mbps throughput and supports up to 128 cameras. This 2U rackmount server features 60TB of internal storage and dual 1G Ethernet ports, offering a robust, scalable solution for enterprise-level surveillance.
Key Configuration
- • CPU: Intel i7 processor; RAM: 16GB; video card: GeForce 210 512MB
- • Storage: 60TB internal (6–7 × SATA HDD bays; no RAID); OS on 150GB SSD
- • Max throughput: 600 Mbps; supports up to 128 × 2.1MP cameras @ 30 fps
- • Video outputs: DVI and True HD (1 display output at a time for initial configuration)
- • Network ports: 2 × 1G Ethernet (RJ45); rail kit included
Key Features
The NVR is an NDAA/TAA-compliant, U.S.-assembled NVR pre-loaded with DW Spectrum® IPVMS. It features one-time, transferable licenses with no annual fees and supports dual-stream recording with advanced AI/motion search modes. Offering cross-platform access (Windows, Linux, Mac, Mobile), it provides seamless ONVIF PTZ control and automated device discovery for enterprise-scale systems.
Technical Context
The 2U rackmount supporting H.265/H.264 compression and including 4 transferable IP licenses with lifetime upgrades. It features a 400W power supply, operates from 41°F to 104°F, and comes with a keyboard, mouse, and a 5-year warranty. This is scalable via optional licenses for additional channels, encoders, and video walls.
Installation Notes
Dimensions: 17.29" × 21.93" × 3.5" (439.3 × 557.1 × 88.9 mm), 2U rackmount. Rail kit included. Operating temperature: 41°F to 104°F (5°C to 40°C); humidity: 20–90% RH. Power consumption: 400W (UPS recommended). USB mouse and keyboard included. Scheduled auto reboot for hardware performance.
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | For initial configuration and server management, DVI, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | * Available at initial order only, GeForce 210 512MB |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJP2U40T-LX, DW-BJP2U60T-LX, DW-BJP2U80T-LX, DW-BJP2U100T-LX, DW-BJP2U120T-LX), Windows 10 IoT Enterprise LTSC (DW-BJP2U40T, DW-BJP2U60T, DW-BJP2U100T, DW-BJP2U120T, DW-BJP2U80T) |
| OS on SSD | 150GB SSD |
| Max throughput (Mbps) | 600Mbps |
| STORAGE | |
| Raw internal storage options |      |
| RAID Options | No RAID |
| Max HDD Bay | 6 x SATA HDD, 7 x SATA HDD |
| Maximum Storage | 100TB (DW-BJP2U100T, DW-BJP2U100T-LX), 80TB (DW-BJP2U60T, DW-BJP2U80T-LX, DW-BJP2U80T), 40TB (DW-BJP2U40T-LX), 60TB (DW-BJP2U60T-LX), 120TB (DW-BJP2U120T, DW-BJP2U120T-LX) |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |

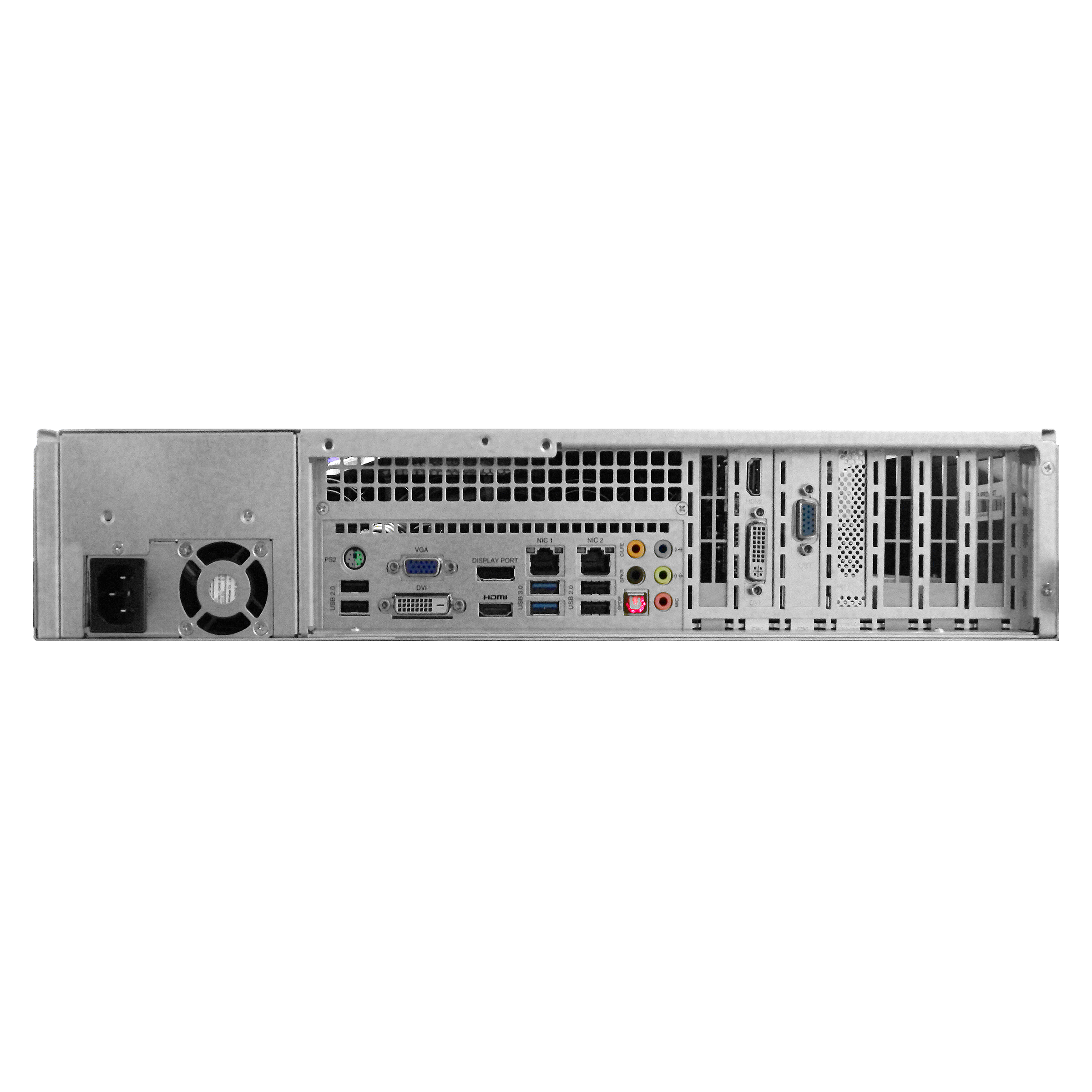

| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 400W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Rail kit | Included |
| Recorder Dimensions (H X W X D) | 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 40.95 lbs (18.57 kg) |
| Certification |      |
| Form Factor | Rack mount |
