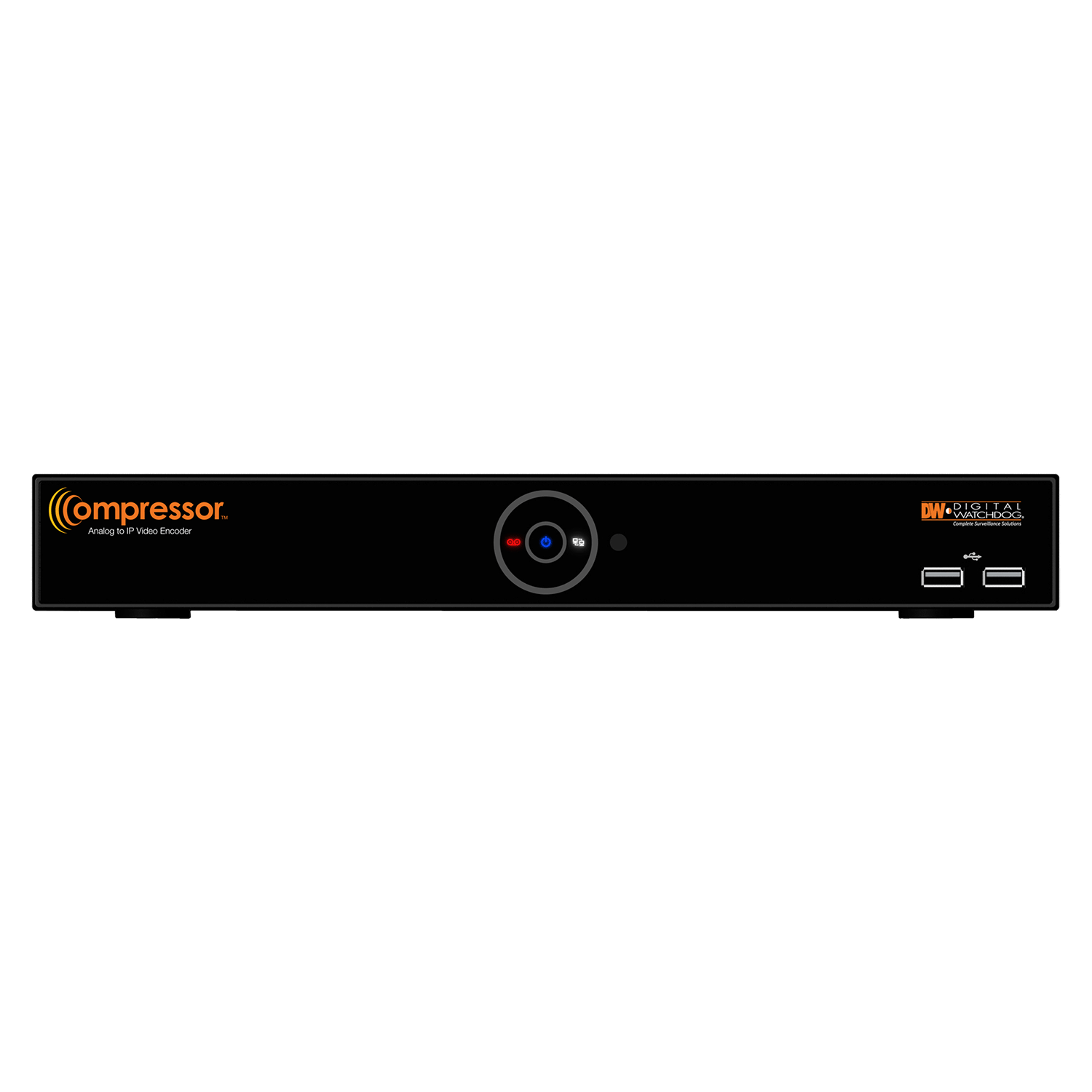

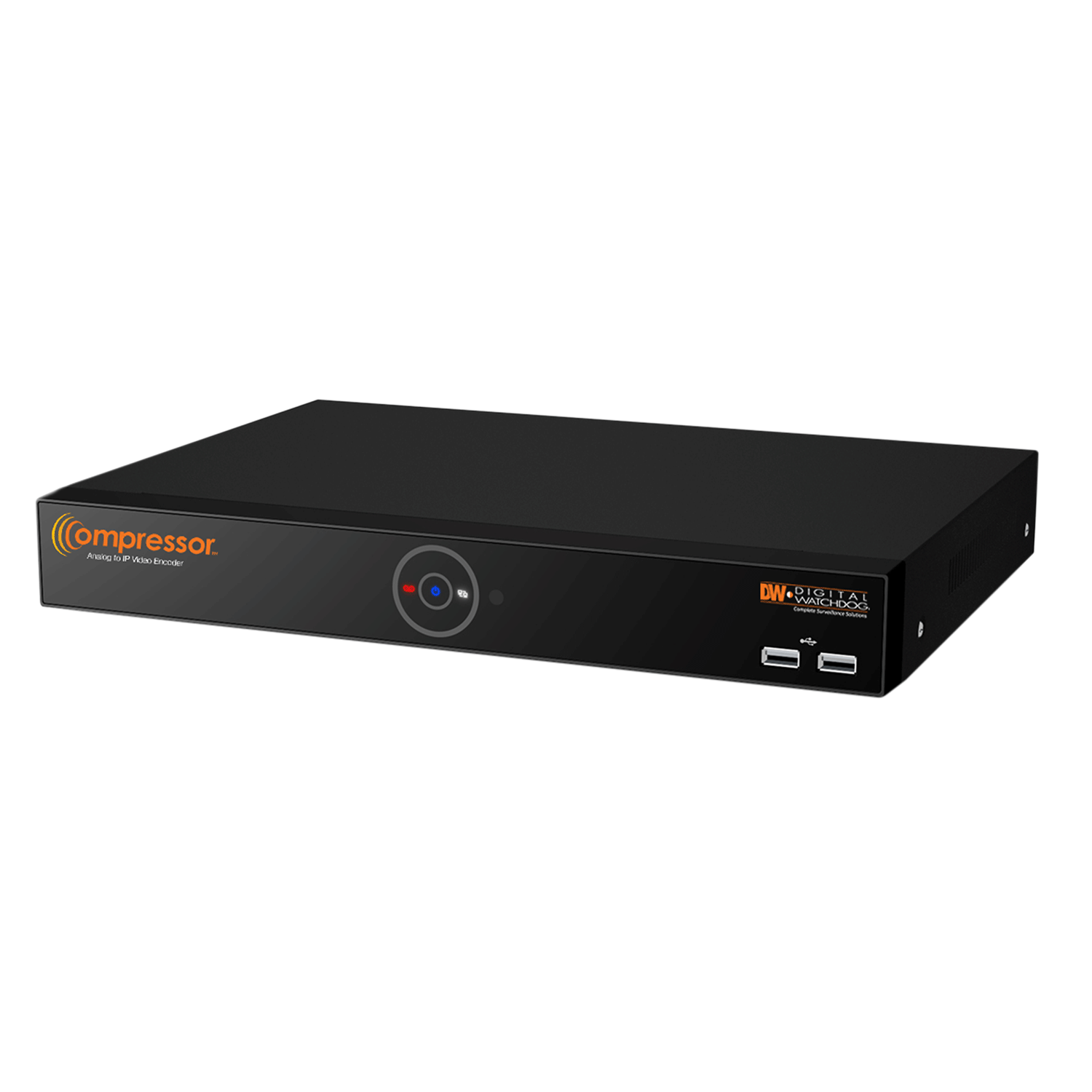

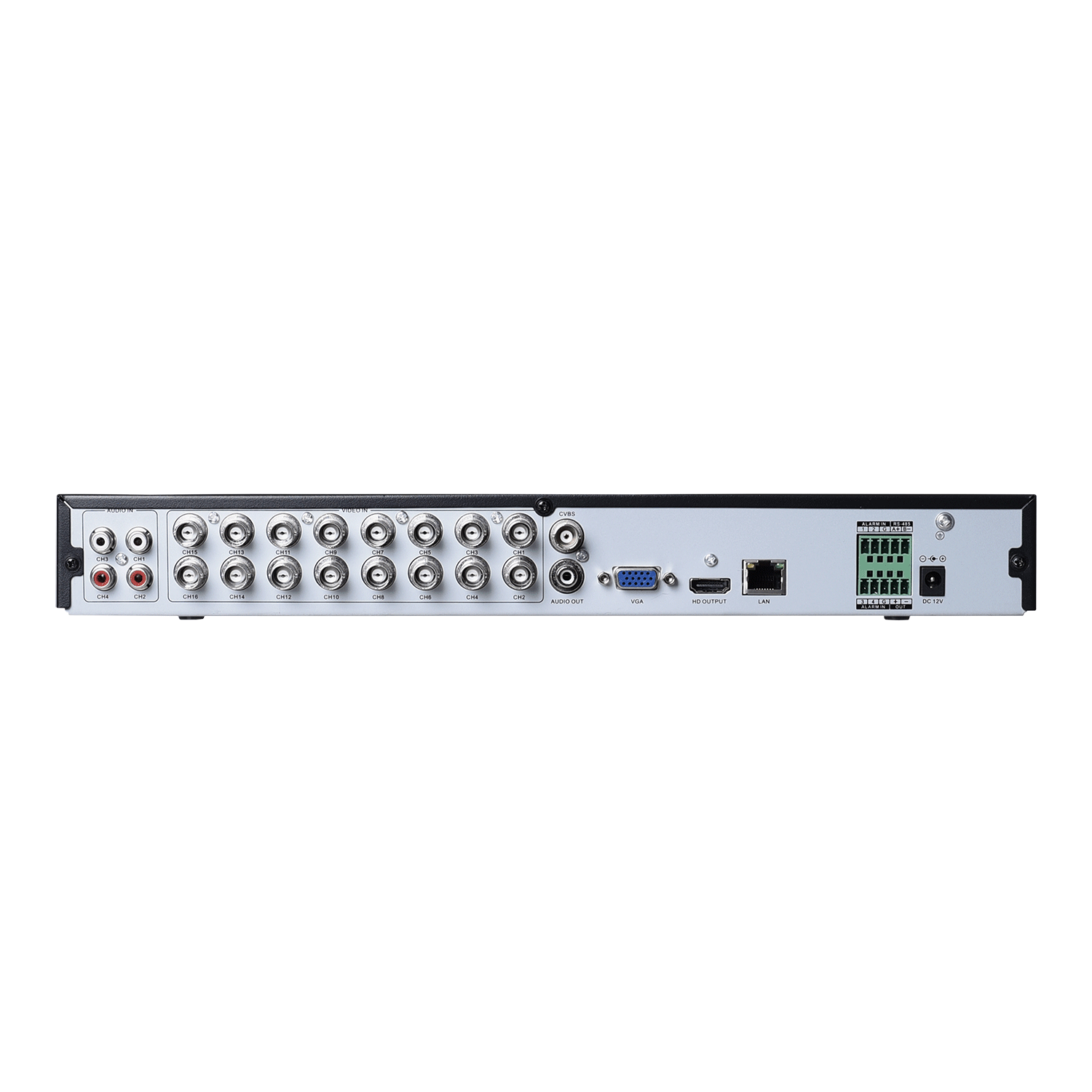

The Compressor analog to IP signal encoder converts up to 16 HD-Analog, HD-TVI and CVBS signals into IP, with live local display at real-time 1080p and streaming at a total of 240fps. The Compressor is fully integrated with DW Spectrum IPVMS and is an affordable solution for applications with both analog and IP cameras.

Features :

• The most cost-effective path to IP
• Universal HD over Coax technology with HD-Analog, HD-TV and all legacy analog signal support
• Connect your analog cameras to DW Spectrum IPVMS (ONVIF approved CMS integration coming soon)
• Convert up to 16 analog cameras to 2.1MP/1080p IP video signals at 240fps
• Real-time 480fps 2.1MP/1080p, 720p and 960H resolution at local monitoring output
• Simultaneous streaming
• Record and playback with DW Spectrum IPVMS. (Requires licenses per channel to record)
  • DW Spectrum IPVMS licenses*: DW-SPCP16LSC016 (16 channel), DW-SPCPLSC04LSC004 (4 channel). Licenses sold separately
• Motion detection
• Support two-way audio (4 input, 1 output)
• 1x RS-485 Interface for PTZ control
• Search and playback from DW Spectrum IPVMS
• Frame rate and bandwidth control
• 4 alarm input, 1 alarm output
• Event notifications via e-mail with image
• ONVIF conformant, Profile S
• DW-EN19RE 19" rack mount ears included
