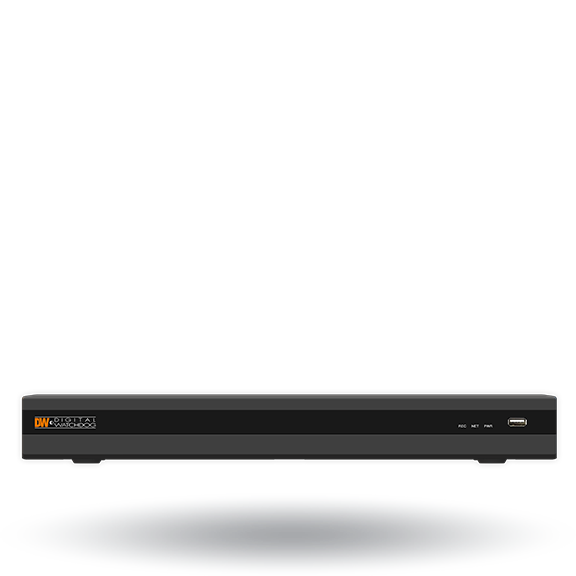

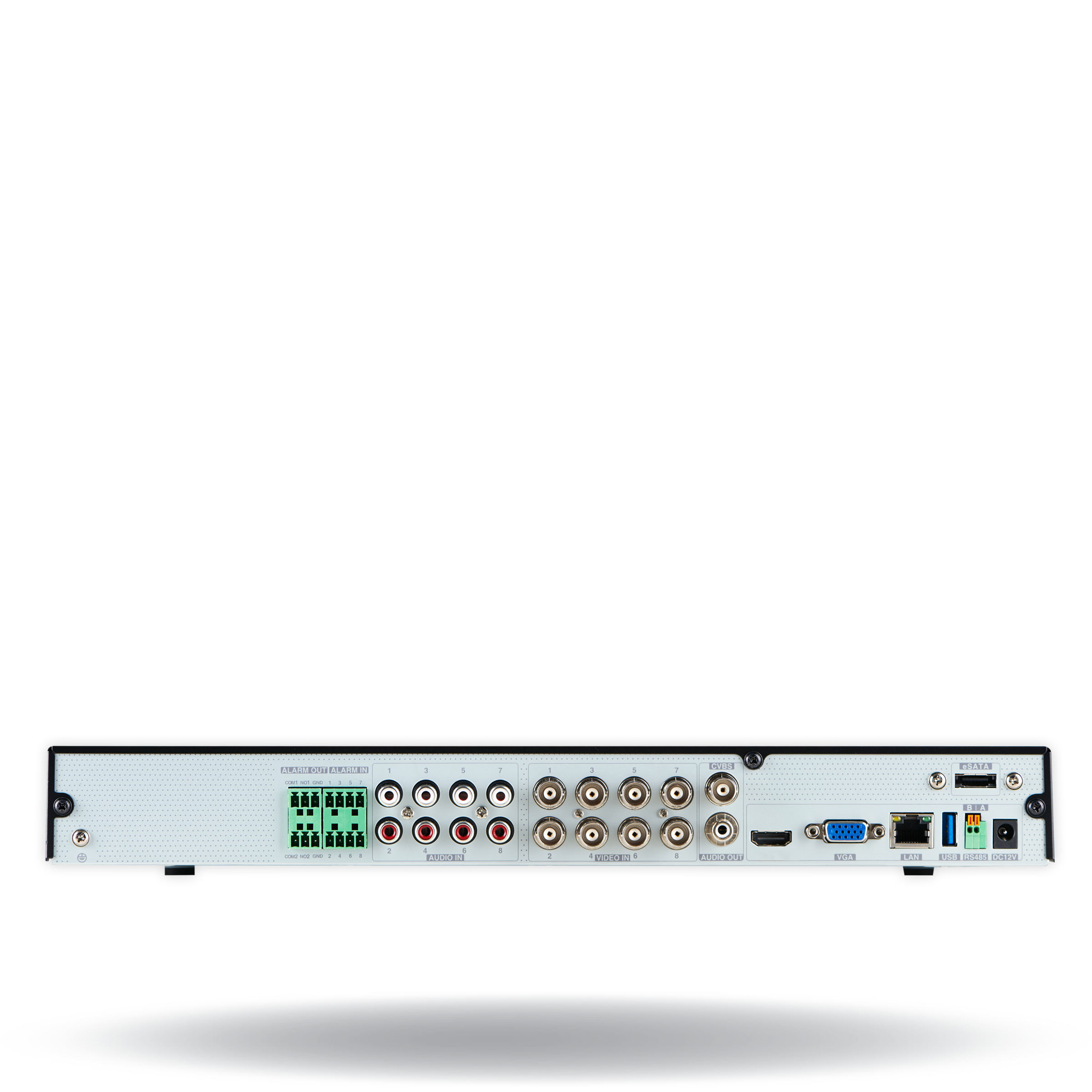

Digital Watchdog - DW-VA1G4812T - VMAX A1 G4 Universal HD over Coax 8-channel DVR with 12TB Storage
Part number:
DW-VA1G4812T
Price:
PathFinder
Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
Status Monitoring
A real-time graphical representation of all system connections. Receive connection alerts via email or text.
Group Recording
Designate a group of cameras to respond to an alert from one camera.
Channel Swap
Swap a camera’s channel assignment without changing the cable connections.
C3 CMS
C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Real-Time Streaming Protocol (RTSP)
RTSP provides a live video stream for live streaming applications between DW VMAX G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.
Features
- Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
- Advanced H.265, H.264 Linux embedded DVR
- 8-channels, 240fps real-time 30fps recording
- Up to 4K recording resolution at 56fps (7fps per channel)
- PathFinder easy remote connection
- Remote management with C3 CMS
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iOS and Android devices
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects the camera signal automatically
- Instant channel swap, no need to disconnect or reboot the DVR
- Snapshot Notify: programmable interval snapshot email notifications
- 4K (3840 x 2160) True HD, VGA and CVBS video outputs
- Up to 32TB internal storage
- Transfer real-time data using Real Time Streaming Protocol (RTSP)
- HDD calculation and auto-recording configuration
- Thumbnail search with hour and 5-minute previews
- 10-second jump buttons for playback and fast forward
- Event notifications via email, C3 CMS and push notifications
- Compatible with DW Spot Monitoring module for Public View Monitors
- 8 audio inputs, 1 audio output
- 8 sensor inputs, 2 relay outputs
- Simple and free DDNS service
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- NDAA/TAA compliant
- 5 year limited warranty
| Video | |
|---|---|
| Display Modes | 1, 4, 6, 9, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768, 1280x1024, 1280x720, 1920x1080, 2560x1440, 800x600, 3840×2160 (4K) |
| Local Video Outputs | CVBS output, True HD, VGA |
| Max Supported Recording Resolution | 4K (3840×2160) |
| Supported Signals | Analog up to 960H, HD-Analog, HD-TVI |
| Video Compression | H.264, H.265 |
| Video Operating System | Embedded Linux |
| Input channels | 8 Channels |
| Storage | |
| HDD healthcheck | Temperature, S.M.A.R.T. with email notifications |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 10TB (DW-VA1G4810T), 12TB (DW-VA1G4812T), 16TB (DW-VA1G4816T), 2TB (DW-VA1G482T), 4TB (DW-VA1G484T), 6TB (DW-VA1G486T), 8TB (DW-VA1G488T), 20TB (DW-VA1G4820T), 32TB (DW-VA1G4832T), No storage (DW-VA1G48) |
| Performance | |
| Alarm in/out | 2 alarm outputs |
| Audio in/out | 1 output, 8 inputs |
| Performance features | Camera Color Control, Covert Channel, Digital Zoom in live and playback, Import and export settings, Real-time temp alert |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| Playback speed | x1, x16, x2, x32, x4, x64, x8, x99 |
| Post-recording | 0~5 minutes |
| Pre- recording | 0~5 seconds |
| PTZ control | RS485, UTC |
| Recording Modes | Continuous, Emergency, Motion detection, Pre- and post-alarm, Quick backup, Scheduled, Sensor |
| Recording Resolution and Recording Rate | 1280x720 (HD): 240fps, 1920x1080 (HD): 240fps, 2560x1600 (4MP): 120fps, 2560x1944 (5MP): 96fps, 3MP (1920x1536): 144fps, 4K (3840x2160): 56fps, 720x480 (SD): 240fps, 960x480 (960H): 240fps |
| System Operation | Graphical user interface (GUI), Joystick Controller (optional), USB mouse (included) |
| Network | |
| Backup | Local backup via USB, Network backup via CMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network, FTP, USB |
| Protocol | DHCP, RTSP, Static fixed IP, uPNP |
| System recovery after power failure | Auto-reboot and journaling file system |
| Transmission speed live | 1280x720 (HD): 240fps, 1920x1080 (HD): 240fps, 2560x1600 (4MP): 120fps, 2560x1944 (5MP): 96fps, 3MP (1920x1536): 144fps, 4K (3840x2160): 56fps, 960x480/576 (960H): 240fps |
| Network Remote Software | C3 CMS, DW Mobile Plus |
| Electrical | |
| Power Consumption | 39.6W, 48W, A UPS is recommended |
| General | |
| Accessories | Mouse |
| Audio codec | ADPCM |
| Operating Temperature and Humidity | 0 ~ 80% RH, 10~90% RH, 32~113 °F (0~45 °C), 41 ~ 104 °F (5~40 °C) |
| Rail kit | DW-G419RE (optional. Sold separately) |
| Recorder Dimensions (H X W X D) | 12.4" x 9.52" x 1.77" (315 × 242 × 45 mm), 14.96" x 10.58" x 1.77" (380 x 268.8 x 45 mm) |
| Serial ports | RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Form Factor | Embedded |
