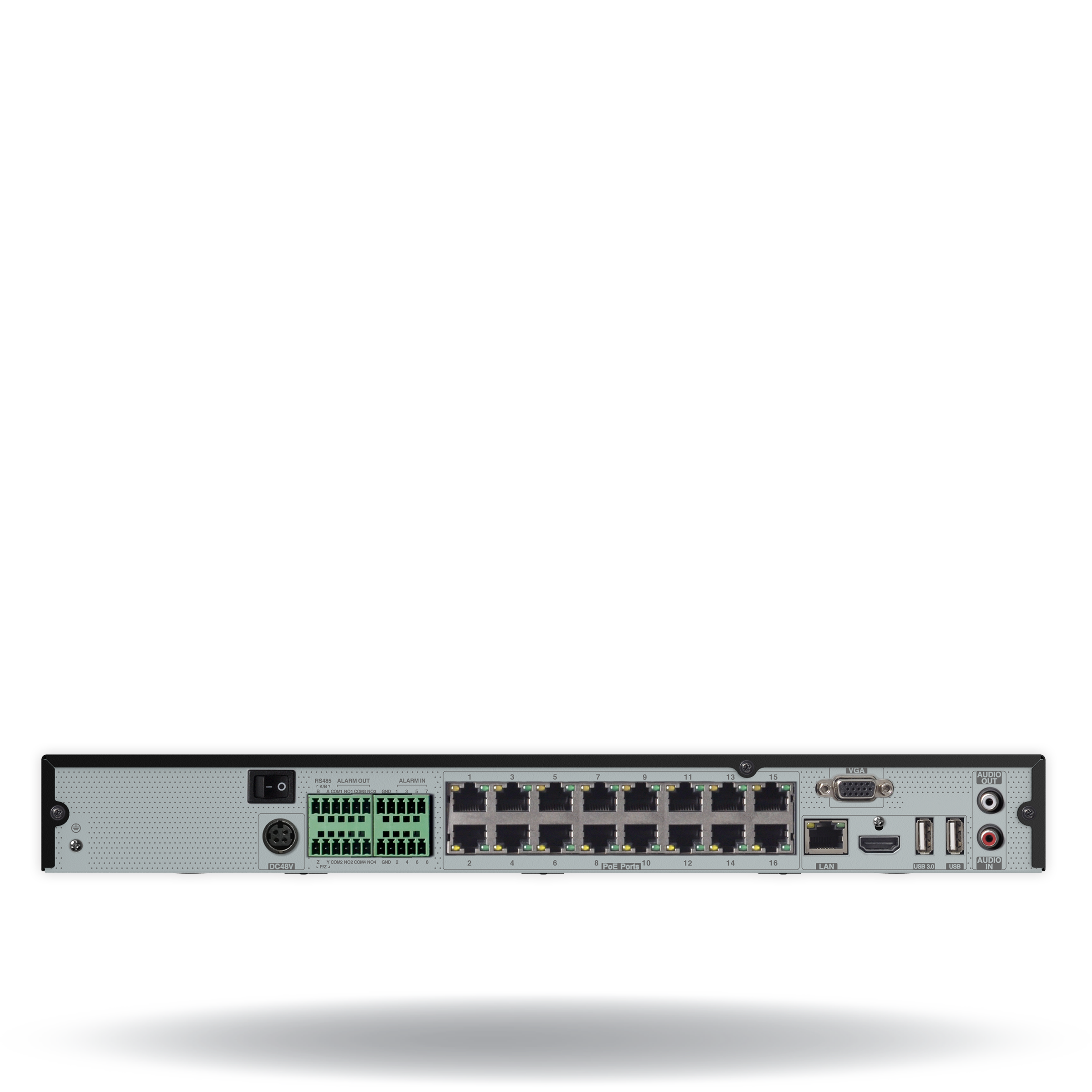

Digital Watchdog - DW-VG41616P - VMAX IP G4 16-channel PoE NVR without HDD, Linux-Based embedded

Product Overview

The Digital Watchdog DW-VG41616P is a 16-channel VMAX IP G4 NVR featuring 16 built-in PoE+ ports (150W budget) and support for 4K recording at 480 fps. With a 160 Mbps throughput, it includes CCIP encryption, PathFinder P2P for easy remote access, and two SATA bays supporting up to 32TB of storage (HDD not included).

Key Configuration

• • Channels: 16 IP camera inputs + 16 PoE ports (802.3at, 30W max per port, 150W total budget)
• • Max throughput: 160 Mbps; recording speed: up to 480 fps at 4K resolution
• • HDD: 2 × SATA bays, up to 32TB total storage (no HDD included; optional up to 32TB)
• • Video outputs: True HD (4K/3840×2160) and VGA simultaneous output
• • Audio: 1 input / 1 output; alarm: 8 sensor inputs / 4 relay outputs; PTZ control: RS485, UTC

Key Features

The 16-channel VMAX IP G4 NVR features built-in PoE+ ports (150W budget) and 4K recording at 480 fps. It utilizes CCIP™ TLS encryption to secure video streams and PathFinder™ P2P for easy remote access without port forwarding. The unit supports up to 32TB of storage across two SATA bays and includes the DW Witness™ app to turn mobile devices into live cameras. Strictly NDAA/TAA compliant, it is backed by a 5-year limited warranty.

Technical Context

The DW-VG41616P provides advanced H.265/H.264 compression and supports resolutions up to 4K (3840×2160) for high-detail surveillance. It features flexible playback speeds up to 99x alongside rapid forensic tools like Smart Motion Search, calendar search, and thumbnail previews. The hardware includes a 1G RJ45 Ethernet port and an integrated power system with an 180W total budget for the recorder and its PoE ports. Optimized for professional environments, this compact 1U NVR operates reliably between 32°F and 113°F. It is compatible with various remote clients, including C3 CMS and DW Mobile Plus, and holds global certifications such as CE, FCC, and RoHS.

Installation Notes

The DW-VG41616P features a slim 1U chassis measuring 1.77 x 14.96 x 10.56 in and weighing 4.1 lbs. It includes a USB mouse, requires 54V DC power, and offers a 3-minute quick setup with an optional rail kit for easy installation.
