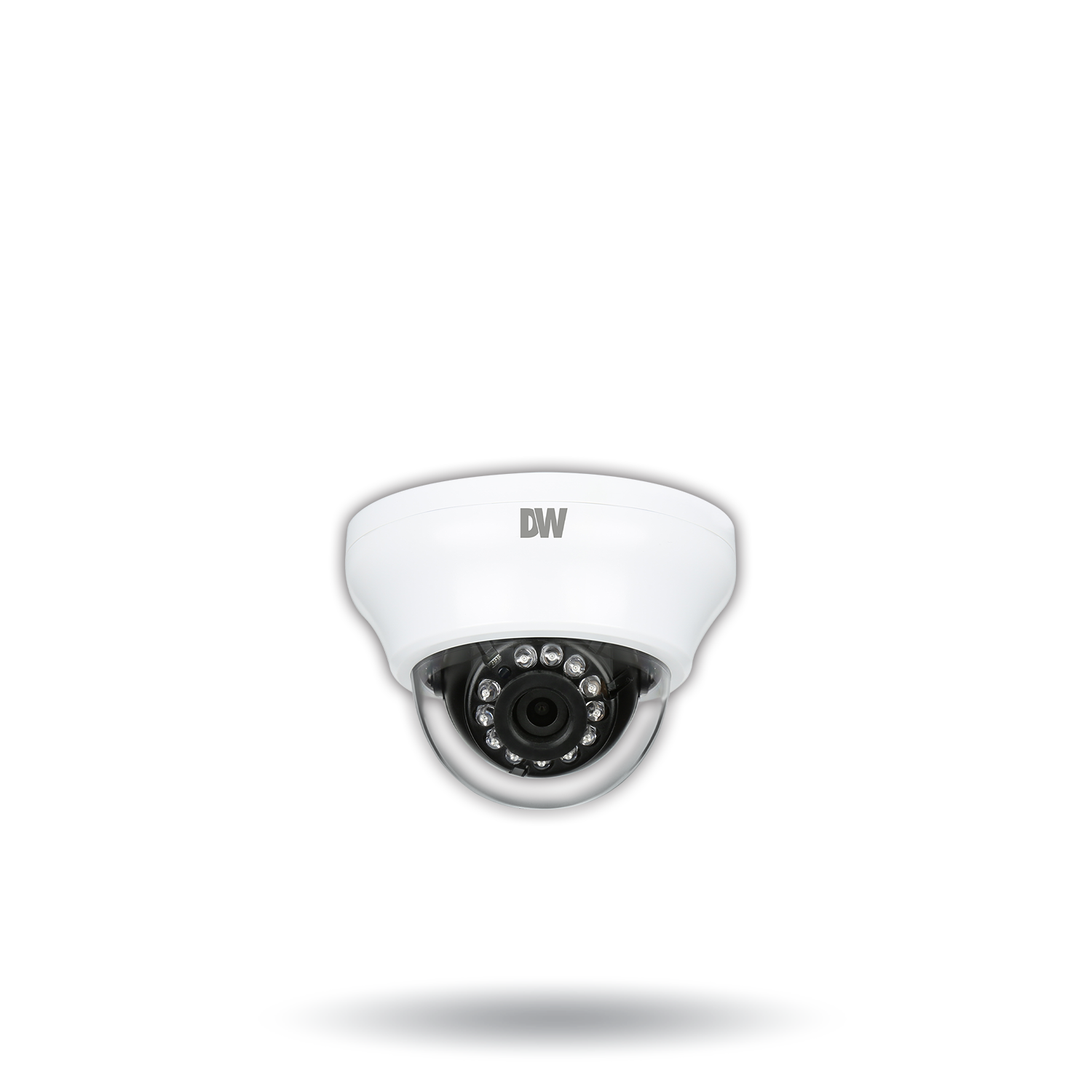

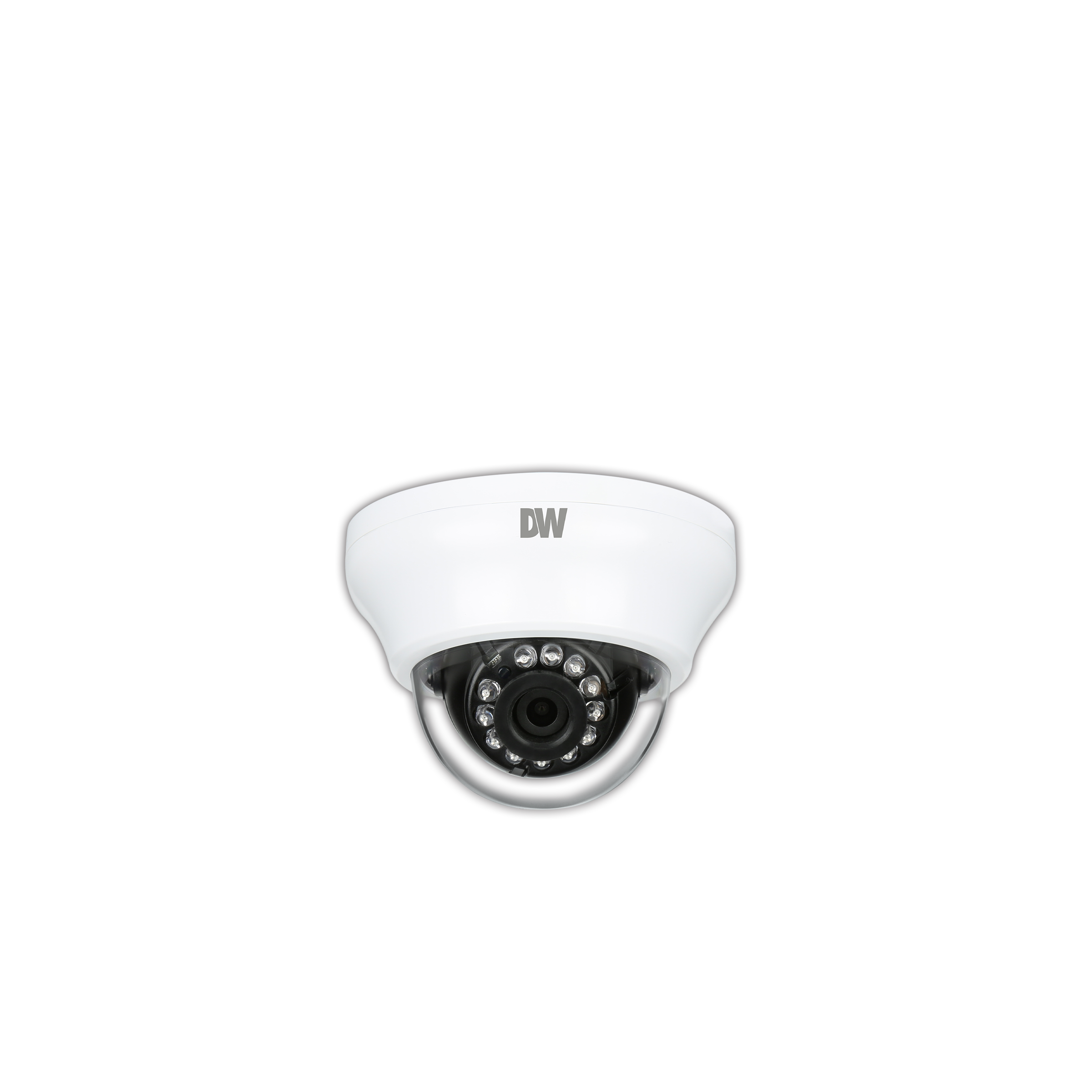

MEGApix Indoor Dome, 2.1 Megapixels (1920x1080 @ 30fps), 4.0mm Fixed Lens, 50ft Smart IR, OnVIF Compliant, True D&N, 1/2.8" CMOS Sensor, Dual Codecs(H.264, MJPEG), 12x Digital Zoom, PoE + DC12V, 3D-DNR, 5 Year Warranty
MEGApix® 2.1MP network cameras provide real-time 1080p High Definition video at 30fps. Advanced technologies include 30ft Smart IR™ and true Day/Night for clear images in challenging lighting conditions. A built-in Web-Server and user-friendly interface make these cameras easy to use. Power over Ethernet simplifies installation by providing both power and the network connection through a single cable. All cameras are ONVIF conformant, assuring their successful integration with other open platform video surveillance products. Housed in our attractive dome enclosure, these cameras provide the industry-leading benefits of MEGApix technology at an affordable price.
- 2.1 Megapixel Image Sensor (1080p, 30fps)
- Real-time 1080p 30fps High Definition
- Dual Codecs (H.264, MJPEG) with Simultaneous Streaming
- 4.0mm Fixed Lens
- Smart IR™ with Intelligent Camera Sync. 30ft Range
- True Day/Night with Mechanical IR Cut Filter
- Auto Gain Control (AGC)
- Back Light Compensation (BLC)
- Auto White Balance (AWB)
- Motion Detection
- Web Server Built-in
- PoE and DC12V
- ONVIF Compliant, Profile S
- NDAA compliant
- 5 year warranty
IMAGE |
|
|
|
Image Sensor |
|
1/2.7“ 2.1M CMOS |
|
Total Pixels |
|
1930 x 1088 |
|
Minimum Scene Illumination |
|
F2.0 (30IRE): 1.4 Lux [Color] |
LENS |
|
|
|
Focal Length |
|
4.0mm Lens, F2.0 |
|
Lens Type |
|
Fixed Lens |
|
IR Distance |
|
30ft Smart IR™ |
|
Angle of View |
|
82° |
OPERATIONAL |
|
|
|
Shutter Mode |
|
Auto |
|
Shutter Speed |
|
1/30(25)sec ~ 1/10,000sec |
|
White Balance |
|
Auto Indoor/Auto Outdoor/Push/Manual/Hold |
|
Auto Gain Control |
|
Max 64dB |
|
Day and Night |
|
Auto, Day, Night, Schedule |
NETWORK |
|
|
|
LAN |
|
802.3 Compliance 10/100 base T LAN |
|
Video Compression Type |
|
H.264, MJPEG |
|
Resolution |
|
1080p / D1 / VGA / CIF / QVGA |
|
Frame Rate |
|
1-30fps |
|
Streaming Capability |
|
Multi Streaming CBR/VBR (Controllable frame rate and Bandwidth) |
|
IP |
|
IPv4, IPv6 |
|
Protocol |
|
ONVIF, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DNS, DDNS, DHCP |
|
Maximum User Access |
|
4 Users |
|
ONVIF Conformance |
|
ONVIF Profile S |
|
Web Viewer |
|
Browser: Internet Explorer, Google Chrome, Firefox OS: Windows 7 |
ENVIRONMENTAL |
|
|
|
Operating Temperature |
|
-10°C ~ 50°C (14°F ~ 122°F) |
|
Operating Humidity |
|
Less than 90% (Non-Condensing) |
|
Other Certifications |
|
FCC, CE, ROHS |
ELECTRICAL |
|
|
|
Power Requirements |
|
DC 12V, POE IEEE 802.3af Class 2 |
|
Power Consumption |
|
LED Off: 2.0W, 165mA |
MECHANICAL |
|
|
|
Material |
|
Plastic |
|
Dimensions |
|
4.13 x 2.93 in (105 x 74.6mm) |
|
Weight |
|
0.55lbs (250g) |
