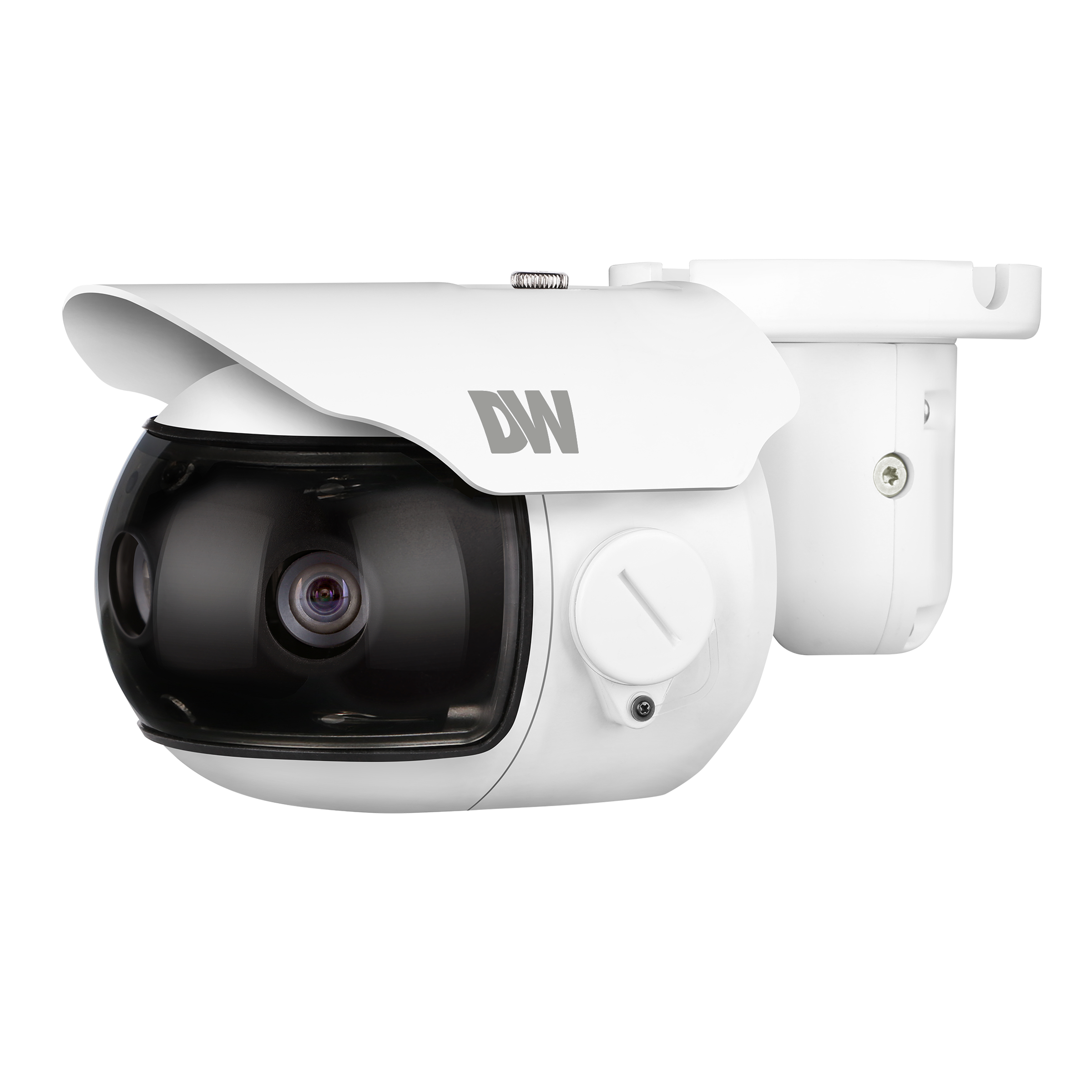

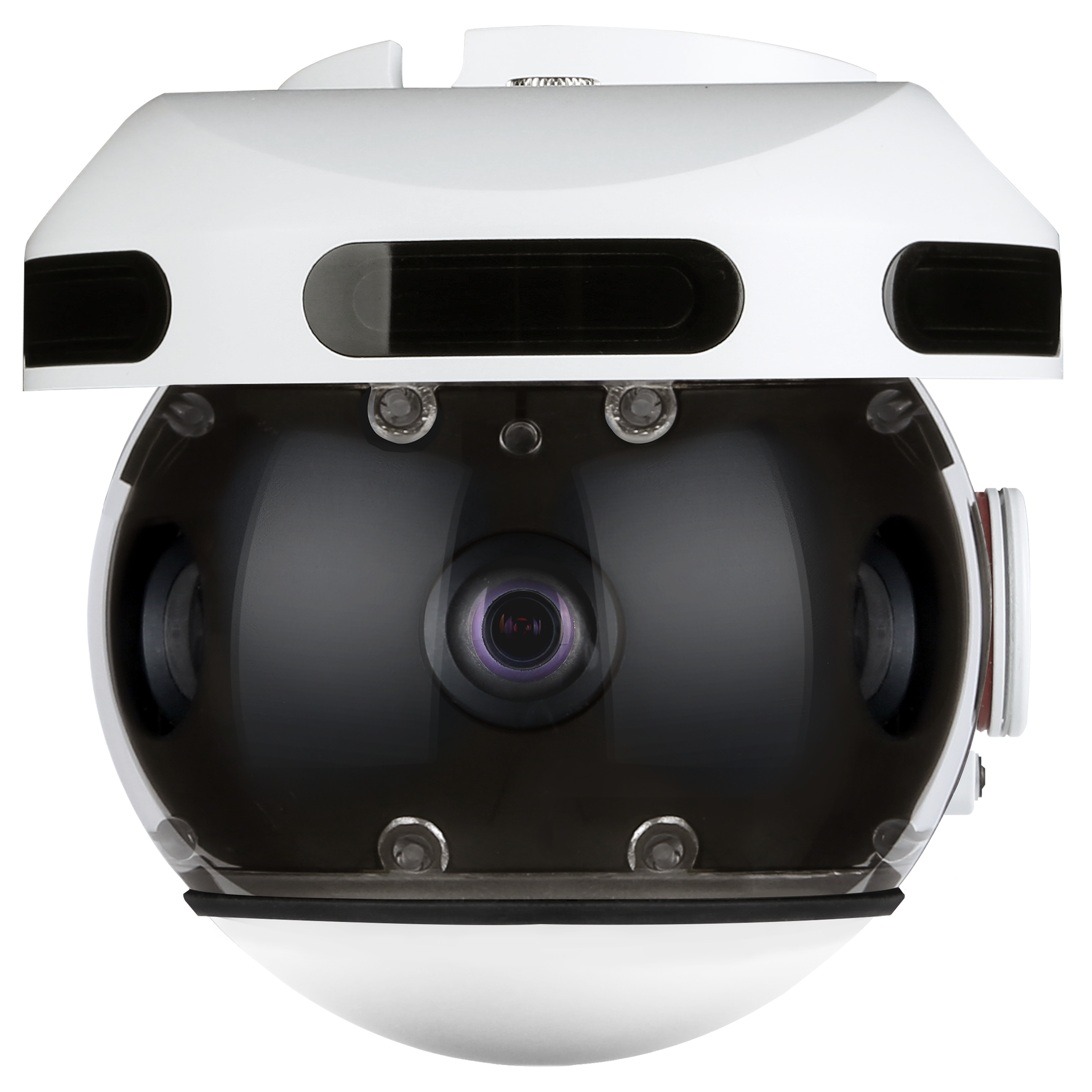

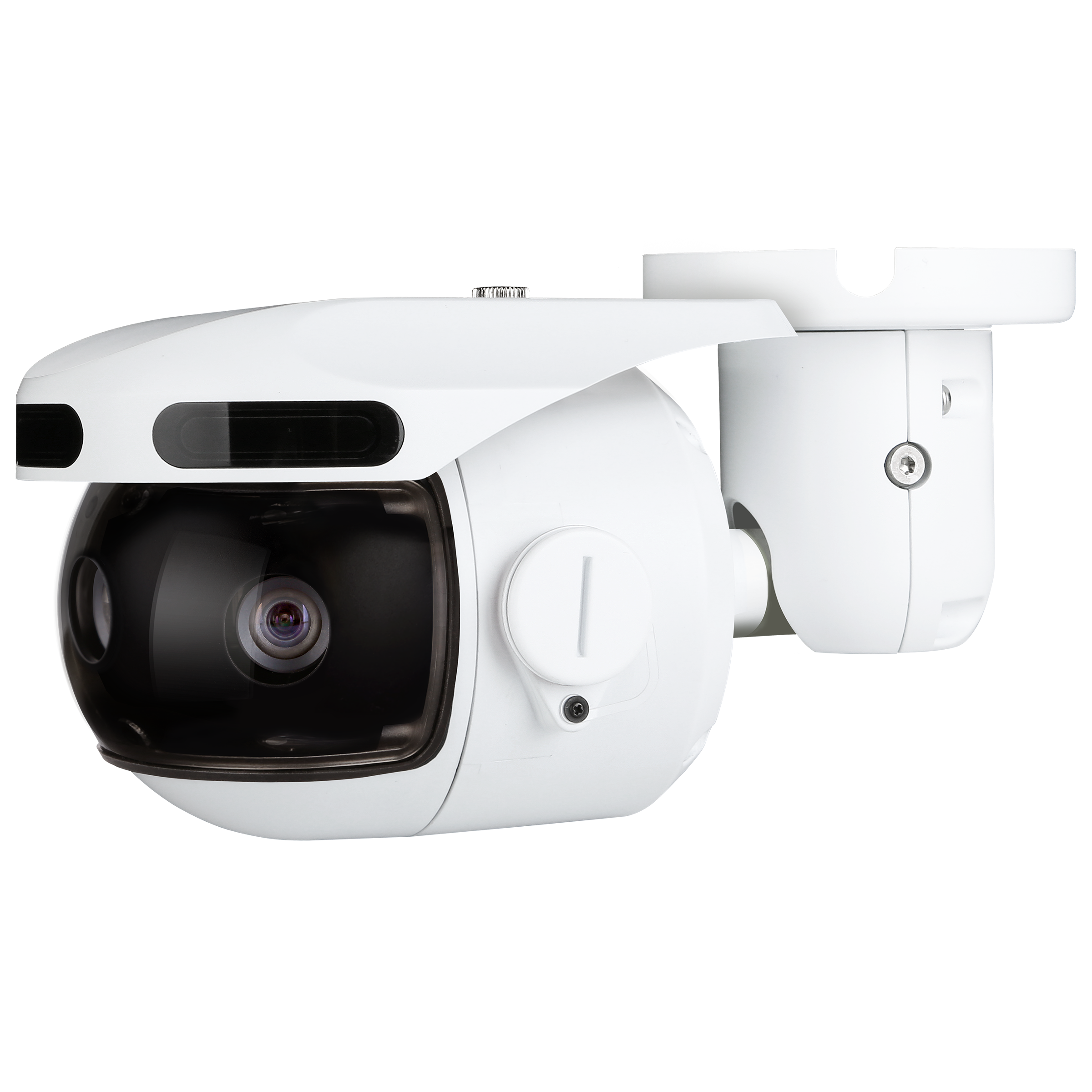

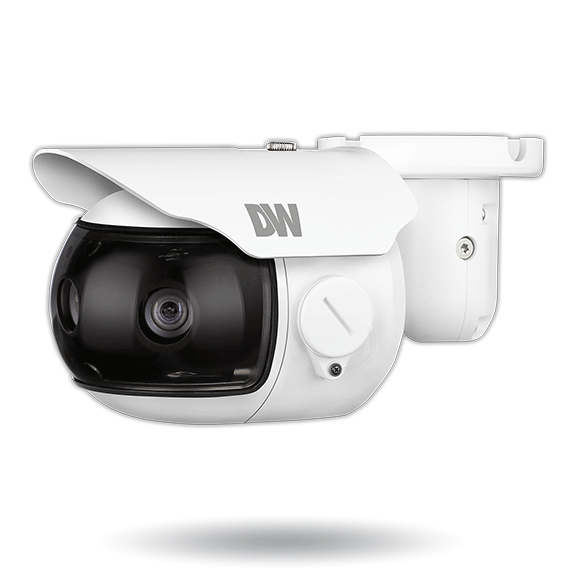

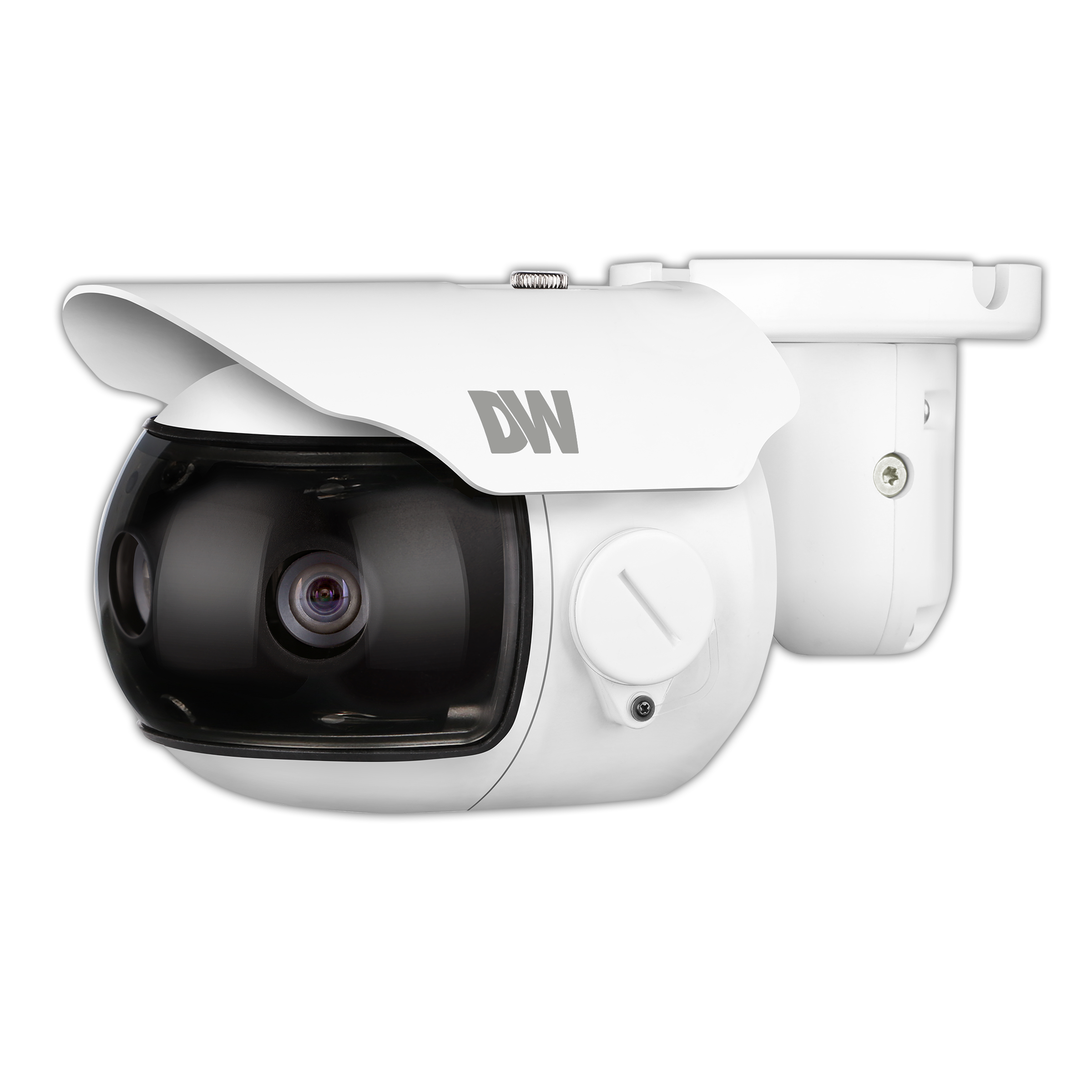

Digital Watchdog - DWC-PB6M4T - MEGApix Pano 6MP multi-sensor bullet IP camera with 4.0mm fixed lenses
Part number:
DWC-PB6M4T
Price:
The MEGApix PANO 6 Megapixel Three-Sensor IP Camera delivers crystal-clear 180° panoramic video for wide area surveillance at up to 20fps. Our revolutionary technology stitches the three images into a single 180° view. Use DW Spectrum® IPVMS to digitally zoom into the 6 megapixels of resolution and reveal details in live and recorded video. The stylish bullet-style housing is easy to install and IP66-rated weather resistant for indoor and outdoor applications. 100ft IR is available with the optional IR Sun Shield (DWC-EXTIR100).
Features:
- 3x 2.1MP 1/3" Image Sensor at up to 20fps
- 6MP 180° Panoramic View IP Camera
- 3x 4.3mm Fixed Lens
- True Wide Dynamic Range (WDR)
- Multi Codecs (H.265, H.264, MJPEG) with Simultaneous Dual-Stream
- Cold Start -40°F (-40°C)
- Two-Way Audio
- Easy Image Alignment and Stitching
- Digital Zoom and Pan Control
- Smart DNR 3D Digital Noise Reduction
- True Day/Night with Mechanical IR Cut Filter
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- Motion Detection
- Micro SD/SDHC Class 10 Card Slot (card not included)
- Alarm Sensor Input
- Relay Output
- Web Server Built-in
- UL listed
- ONVIF Conformant, Profile S
- PoE Class 3 and DC12V
- IP66 Certified Weather and Tamper Resistant
- 5 Year Warranty
IMAGE | ||
| Image sensor | 3x 1/3” CMOS | |
| Total pixels | 5760 (H) X 1080 (V) | |
| Minimum scene illumination | 0.06 lux (color) | |
| 0.01 lux (B&W) | ||
| Maximum resolution | 6MP (3x 2.1MP/1080p) | |
LENS | ||
| Focal length | 3x 4.3mm, F2.0 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | 3x 62° | |
I/O | ||
| Audio in / out | 1/1 | |
| Alarm In/Out | 1/1 | |
| Audio compression | G.726, G.711, u-low (bi-directional) | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/30 - 1/30,000 | |
| Auto gain control | Max 41dB | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| Wide dynamic range (WDR) | True WDR on, off | |
| Wide dynamic range (WDR) dB | 100dB | |
| White balance | Auto | |
| Backlight compensation (BLC) | On, off | |
| Privacy zones | 8 programmable privacy masks | |
| Alarm notifications | Notifications via SD card recording | |
| Memory Slot | Micro SD/SDHC class 10 card (card not included) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | 3x 1920 x 1080 (each sensor) | |
| Frame rate | 5760 X 1080 at 20fps | |
| Video bitrate | H.264 / H.265 : 32Kbps ~ 8Mbps MJPEG : 1Mbps ~ 40Mbps | |
| Bitrate control | H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG | |
| Streaming capability | dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf, RTP/RTSP, Onvif, Genetec Protocol | |
| Security | Digest authentication (ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper-resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V, PoE IEEE 802.3at Class 3 (adaptor not included) | |
| Power consumption | TDN On: MAX 10.1W TDN Off: 7.7W | |
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 4.56" x 9.66" (116 x 245.5mm) | |
| Weight | 2.2 lbs (1.0 kg) | |
