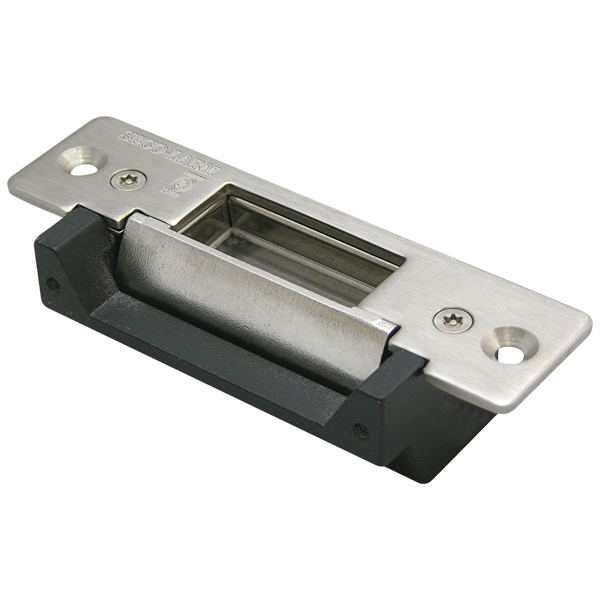

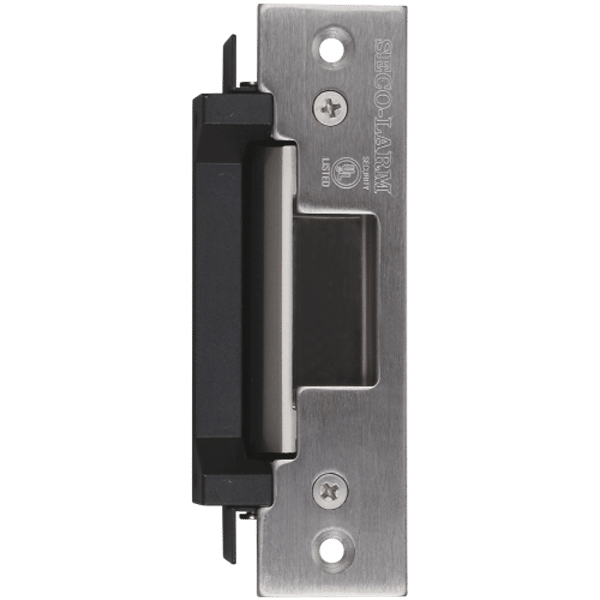

SECO-LARM - SD-995C - Electric Door Strike

The SECO‑LARM SD‑995C is an electric door strike designed for metal‑framed doors, operating on 12 VDC with field‑selectable fail‑safe (door unlocks when power is lost) or fail‑secure (door locks when power is lost) operation for flexible security requirements. It is intended for indoor use only, features an ANSI‑sized body (4⅞" × 1¼" × 1⅜"), and is UL 294 and UL 1034 listed for reliable performance. This strike converts cylindrical lock sets into an electronic access‑controlled locking system and can be paired with an optional SECO‑LARM digital keypad for keyless high‑security applications.

Key Features:

• • UL 294 & UL 1034 Listed
• • Field-selectable for fail-safe or fail-secure operation
• • Can be used with virtually any cylindrical door locking system
• • Can use with an optional digital keypad
• • Suitable for office-type applications
• • Reversible non-handed design fits either right-hand or left-hand doors
• • Shallow design for use with most metal doors
• • Powered by a solenoid, not a buzzer coil
• • Static strength – 1,000 lbs. (454kg)
• • Stainless steel keeper for strength and long life
• • Non-polarized connection
• • Tested to 250,000 cycles (UL Tested)
• • Optional lip-extension brackets available: SD-995C-LE25 – 1″ Extension, SD-995C-LE50 – 2″ Extension
