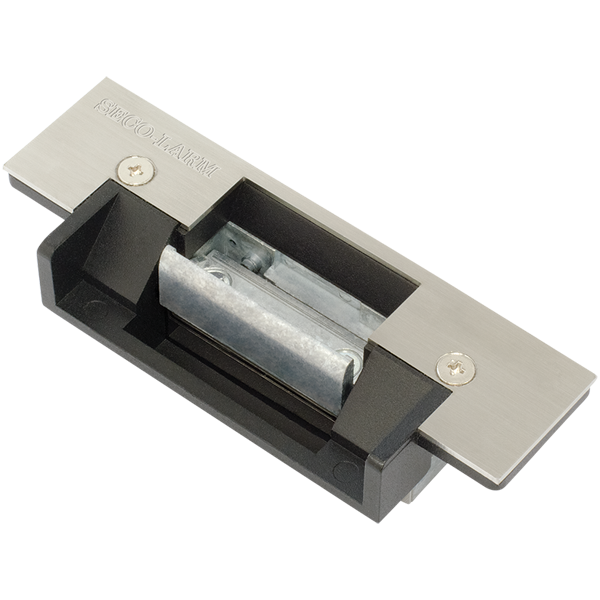

SECO-LARM - SD-995A-A1Q - Electric Door Strike with Horizontal Adjustment. ¼” Adjustment Compensates for Installation Difficulties, 8~16VAC/12VDC Operation. Fail-Secure
Part number:
SD-995A-A1Q
Price:
Electric Door Strike with Horizontal Adjustment. ¼” adjustment compensates for installation difficulties, 8~16VAC/12VDC operation. Fail-Secure, Unique design accommodates both wood and metal-framed doors. Optional faceplate SD-995RE-21Q also available. Face plate dimensions: 715/16” x11/4” x1/8”
Features:
- 1/4” Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc.
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Durable stainless-steel faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Screw terminals for ease of wiring
- Operating voltage: 8~16VAC/12VDC
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Current draw: 750mA@12VDC
- Keeper depth: 21/32” (16.8mm)
- Latch depth: 3/4” (19mm)
- Strike depth: 11/2″ (38mm)
- ANSI Faceplate size: 47/8“x11/4“x1/8” (124x32x3.2 mm)
- Optional ANSI Faceplate SD-995RE-21Q
| Operating Voltage | 8~16 VAC/12VDC |
| Operation | Fail-secure |
| Current Draw | 800mA@16VAC, 750mA@12VDC |
| Latch Throw | 5/8″ (16mm) |
| Jaw Strength | 1,000-lb (453kg) |
| Design | Reversible Non-Handed |
| Strike Depth | 1-1/2″ overall (38mm) |
| Adjustable Keeper | Max. 1/4″ (6mm) |
| Operating Temperature | 14°F~113°F (-10°~45° C) |
| Dimensions | 4-7/8″x1-1/4″x1/8″ (124x32x3.2 mm) (Faceplate) |
| Weight | 10.3-oz (292g) |
