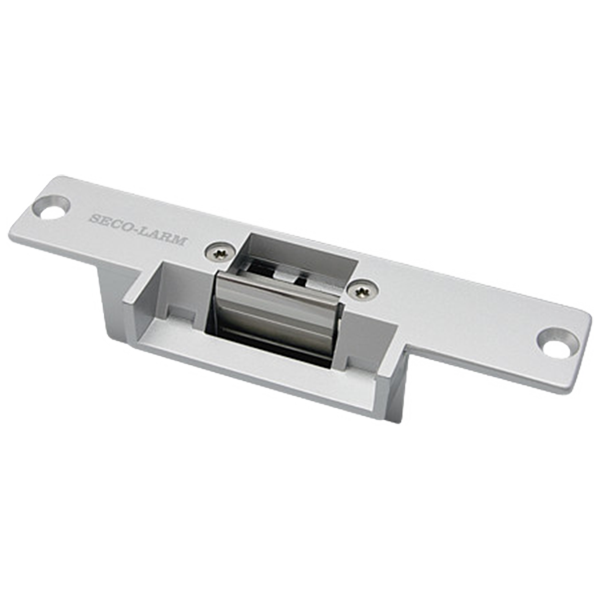

SECO-LARM - SK-990AQ - Electric Door Strike

Part number:
SK-990AQ
Price:

The SECO‑LARM SK‑990AQ is a fail‑secure electric door strike designed for wood‑framed doors, keeping the door locked when power is lost for enhanced security. It operates on 12 VDC/VAC and is intended for indoor use only, converting standard cylindrical lock sets into an electronic access‑controlled locking system. For keyless, high‑security applications, it can be paired with an optional digital keypad such as the SECO‑LARM SK‑1011‑SDQ.



Key Features:
• Function: Converts cylindrical locksets into an electronic access-controlled locking system.
• Compatibility: Suitable for virtually any cylindrical door lock.
• Security: Enables keyless entry when used with a digital keypad.
• Integration: Easily connects to the SECO-LARM SK-1011-SDQ Electronic Keypad.
• Applications: Ideal for office and commercial entry doors.
• Certification: CE approved.
• Finish: Durable baked-painted coating.
• Operation: Fail-secure design, keeping the door locked during power loss.
• Installation: Well-suited for entrance door applications.

Operating Voltage10~14VDC
OperationFail Secure
Circuit TypeN.O.
Current Draw450mA
Coil Resistance26Ω
PolarityNone
Weight350g
