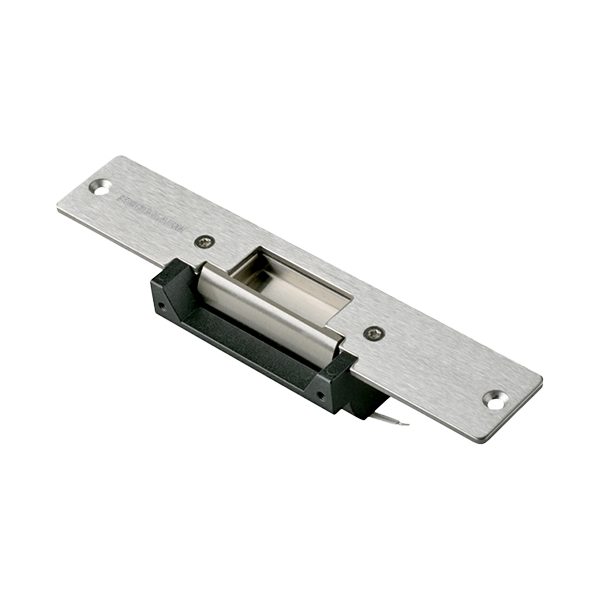

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

Features:

• UL 294 & UL 1034 Listed
• Field-programmable in just seconds for fail-secure or fail-safe applications
• The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
• Can be used on virtually any cylindrical door locking system
• Use of an optional digital keypad with the unit assures high security without the need for a key
• Easily connects to SECO-LARM’s Electronic Keypads
• Suitable for office-type applications
• 715/16” x 17/16” x 11/4” (202x36x32 mm)
• Symmetrical-sized. Reversible for right-hand or left-hand doors
• Shallow design for use with most wood doors
• Powered by a solenoid, not a buzzer coil
• Static strength 1,000-lbs.(454kg)
• Stainless steel lip (keeper) for strength and long life
• Non-polarized connection. Wires can be reversed
• Current draw 140mA@24VDC
• Tested to 1 million cycles
• CE approved
