SECO-LARM - SD-H412 - 1) Electric Transfer Hinge. 5-knuckle, 4-wire transfer hinge with concealed wiring, 12~24 VAC/VDC, Heavy-duty, vandal-resistant steel, US26D (652)
Part number:
SD-H412
Price:

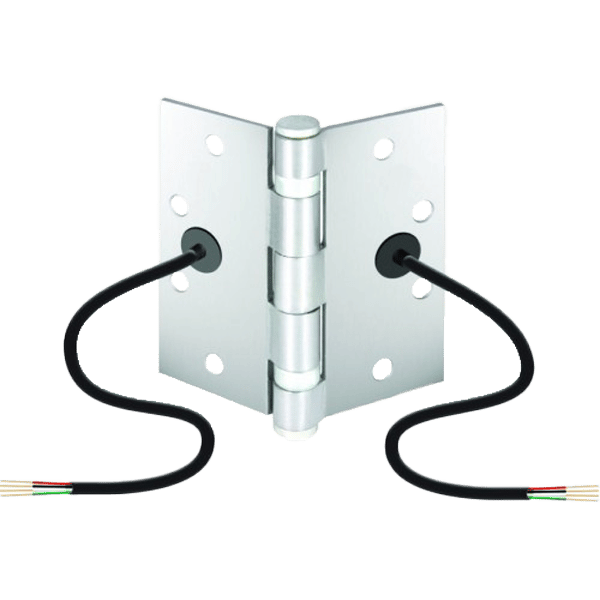

The ENFORCER SD-H412 Electric Transfer Hinge provides a vandal-resistant method for protecting and concealing wires between a hollow door and door frame. It is suitable for low-voltage, low-current applications such as electric door strikes, locksets, and deadbolts or other monitoring or exit devices and is easily installed, replacing the center hinge.
Features:
- 12 or 24 VAC/VDC operation
- 4 Conductive wires – 4x 28AWG wires, 0.5A@24VAC/VDC
- Standard 5-knuckle hinge
- Provides power and data transfer
- Replaces one of the standard door hinges on a hollow door
- Heavy-duty, vandal-resistant steel housing protects and hides the wires
- US26D (652)
| Type | 5-knuckle, 4-wire transfer hinge with concealed wiring |
| Operating voltage | 12~24 VAC/VDC |
| Operating Temperature | -4°~185° F (-20°~85°C) |
| Current – 28AWG | 0.5@24VAC/VDC |
| Wires | 4x28AWG (red, black, white, green) |
| Dimensions | 4-1/2″x4-1/2″x1/8″ |
| Weight | 16-oz (454g) |
