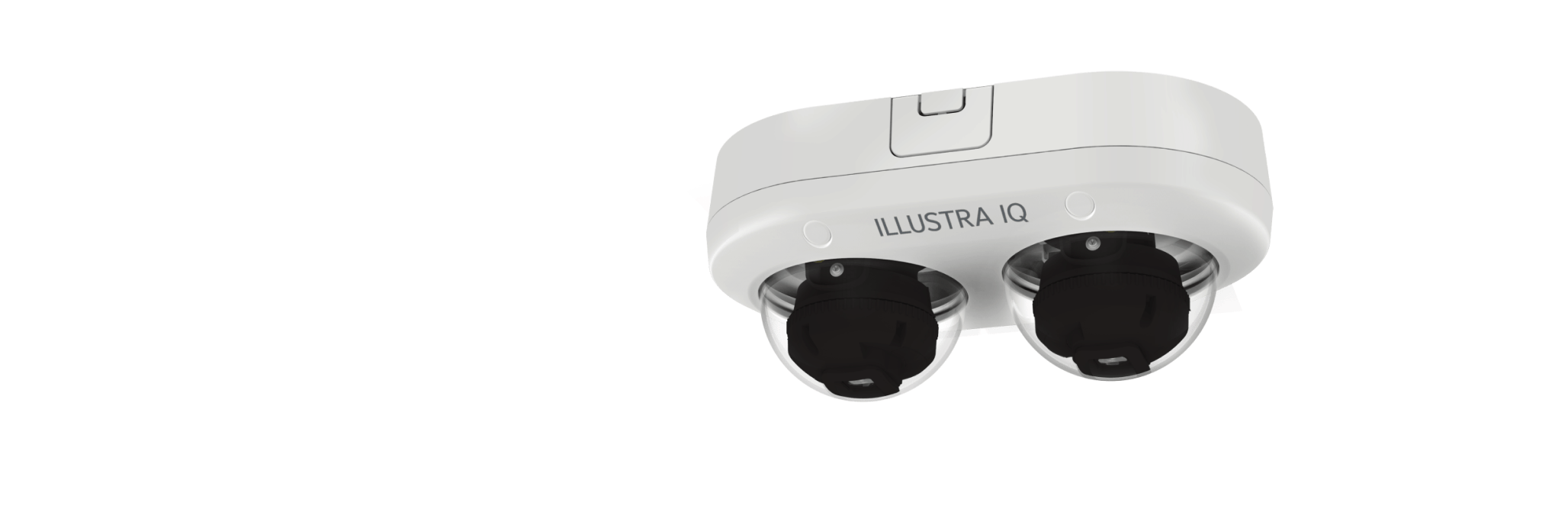

ExacqVision - IFS10-M10-OTA4 - Illustra Flex Gen4 10MP Dual Sensor, MFZ 3.42-6.85mm, Edge AI, TWDR, TDN, IP66/67, IK10
Part number:
IFS10-M10-OTA4
Price:
Illustra Flex Gen4 10MP Dual Sensor, MFZ 3.42-6.85mm, Edge AI, TWDR, TDN, IP66/67, IK10
Features:
- 10 MP resolution
- Improved situational awareness
- Superior WDR, defog and individually controllable 30m IR per sensor
- Cost-effective with wider field of view, dual-head sensors, 1 network cable, 1 VMS license
- Corridor mode for an optimized aspect ratio to get less wall and more hall
- Encrypted data transfer from camera to SD card and VMS
- NDAA compliant
- 5 year warranty
| Camera Features | Flex Gen4 10MP Dual Sensor |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class |
| Audio | Bi-directional, 1x Line input and 1x Line output |
| B/W | 0.04 lux |
| Corridor Mode | Rotate 90° right or left |
| Day/Night | True Day/Night CF removal |
| Defog | Smart Defog supported |
| Dimensions | 220mm x 123mm x 93.8mm (8.66in x 4.84in x 3.69in) |
| Dynamic Range | True multi shutter WDR up to 120dB; SmartWDR, TWDR 2x, TWDR 3x |
| Environment Rating | NEMA 250 Type 4X, IEC 62262 (IK10), IEC 60529 (IP66/67), RoHS, WEEE, REACH |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing |
| Field of View | H: 99.7° - 45.5° V: 68.1° - 32.7° |
| Focus Control | One Touch auto focus, manual and automatic focus with zoom |
| Gain Control | Gain Control (Auto, Max, Manual) |
| H.264 | Yes |
| H.265 | Yes |
| IntelliZip | IntelliZip ® Smart Codec |
| IR Illuminator | Dedicated IR per sensor; 850 nm LEDs, 35 m (114.83 ft); Individually controllable |
| Lens Type | 3.42 mm – 6.85 mm, motorized focus and zoom, P-Iris F/1.85(W) – F/2.4(T) One Touch auto focus, manual and automatic focus with zoom |
| Max Frame Rate | 2MP: 60/50 fps; 5MP: 30/25 fps |
| MJPEG | Yes |
| Motion Detection | 6 zones supported (3 zones per sensor) |
| Onboard Storage | 2 x microSDXC slots, Class 10 or better, upto 2TB supported (1TB per slot), Card not included. Pre event / Post event 1- 10 sec; Encrypted storage and streaming; TrickleStor offline recording and backfilling via VideoEdge and ExacqVision NVR |
| ONVIF Compliant | ONVIF conformance with future firmware release Illustra iAPI via Connected partner program |
| Operating Temperature | -40°C (-40°F) to +60° C (140°F) |
| Outdoor Rating | IP66/67, NEMA 4x |
| Power Input | Power over Ethernet (PoE+) IEEE 802.3at Type 2 Class 4; 24 VAC IR model: 23.1W; 1.75A Non-IR model 16.5W; 1.3A: |
| Privacy Zones | 20 user definable rectangular zones (10 per sensor) |
| Resolution Options | 4:3: 2x 2560x1920 (2x 5MP) to 480x272 |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, QoS, SIP, ARP, EAP-LEAP, QoS |
| TrickleStor | TrickleStor offline recording and backfilling via VideoEdge and ExacqVision NVR |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams (per sensor) |
| Weight | Net 1.2 kg (2.65 lbs), Gross 2 kg (4.41 lbs) |
