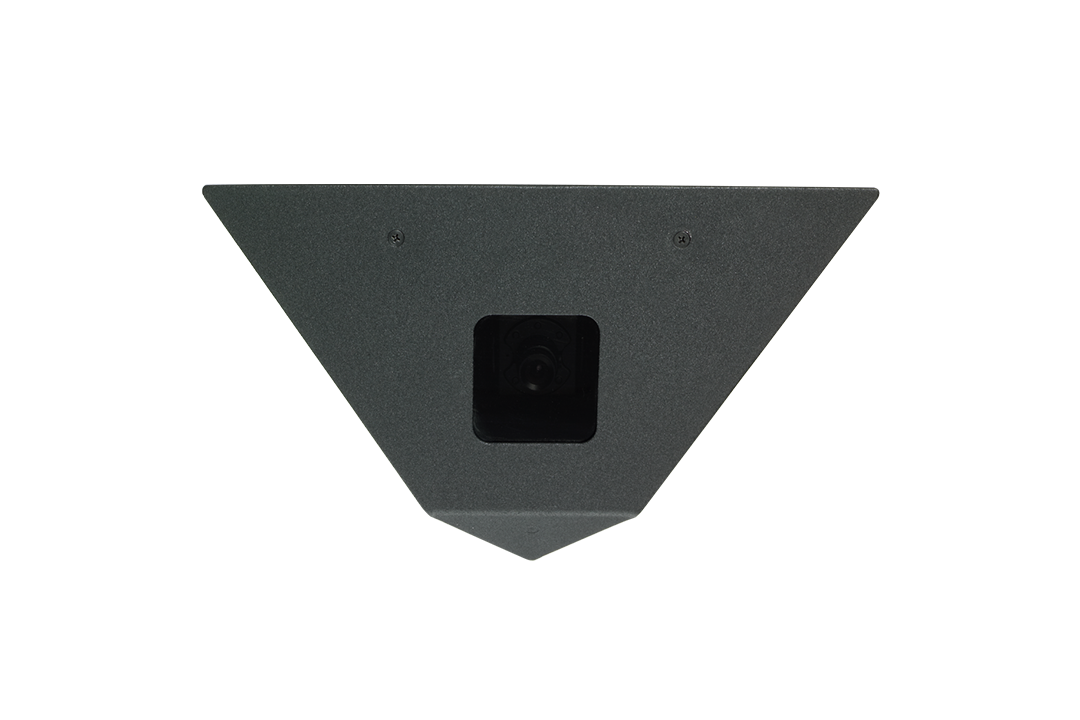

Ganz - CMC-25-HD - Corner Mount Camera 1080p AHD, Black Faceplate, 2.5mm Lens
Part number:
CMC-25-HD
Price:
Ganz corner mount cameras capture 1080p AHD resolution. The 2.5mm super wide lens provides a 115-degree horizontal angle of view, ideal for full coverage of small rooms, elevators, and hallways. The housing is designed to fit into any 90-degree corner, and the internal camera can be tilted and swiveled to achieve the required viewing angle.
The housings consist of a 2-part assembly for easy installation. The standard faceplate is black, and optional white and silver face plates are available.
Features:
- 1080p AHD resolution
- Tamper-resistant design
- Interchangeable clear and tinted windows included
- Super-wide 2.5mm lens
- 3D-DNR, Sens-up, D-WDR
- White and silver faceplate options
- 12VDC power input
| Model | CMC-25-HD |
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 1944 (H) x 1092 (V) (2.1 MP) |
| Scanning System | Progressive Scan |
| Resolution | 1080p @ 30 FPS, 720P @ 30FPS |
| Min. Illumination | 0.1 lux @ F2.5, 30 IRE |
| Lens | 2.5mm, F2.5 |
| HFOV | 88° |
| DSP Features | 3D-DNR, Sens-up, D-WDR |
| Frame Rate | 30fps |
| Power Supply | 12VDC |
| Power Consumption | 100mA max |
| Operating Temperature | 14º ~ 122º F ( -10º ~ 50º C) |
| Installation | Indoor (<80% RH) |
| Dimensions | 3.3” H x 9.4” W x 4.7” D |
| Construction | Aluminum, black powder coat |
Name
Description
Size
Downloads
File
Specification
0.9mb
