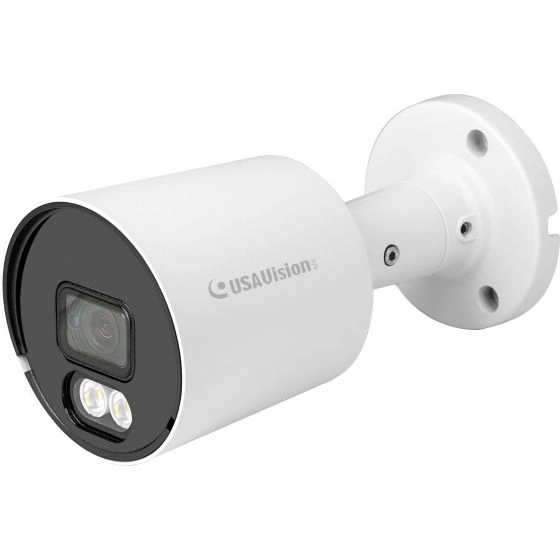

GeoVision - 84-B580F30-UA00 - 5MP H.265 Super Low Lux WDR Pro Full Color IR Bullet IP Camera 3.6mm
• High quality imaging with progressive scan CMOS
• Triple streams from H.265, H.264
• Smart warm LEDs
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built-in micro SD card slot, up to 256 GB
• Ingress protection (IP66)
• DC 12V / PoE (IEEE 802.3af)
• P2P function for GV-Eye app
• ONVIF conformant
• Intelligent analytics: Human & Vehicle Detection
| Video | |
|---|---|
| Imaging Device | 1/2.7" |
| Picture Elements | 2880 (H) x 1620 (V) | 5 Megapixels |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.005 Lux at F1.0 (AGC On) |
| B/W: 0 Lux | |
| IR On: 0 Lux | |
| Lens Type | |
| Lens Type | Fixed |
| Focal Length (Zoom Ratio) | 3.6 mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| Field of View | Horizontal: 88.3°, Vertical: 47.8°, Diagonal: 104.7° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Warm LED Quantity | 2 warm LEDs |
| Max. Warm LED Light Distance | 25 m (80 ft) |
| Type of Complementary Light | Default warm light, switchable infrared light |
| Backlight Compensation | Off / on (5 zone) |
| S/N Ratio | 39 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off / on (8 levels) |
| Privacy Masking | Off / on (4 zones) |
| Gain Control | Auto |
| White Balance | Auto / Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000 s |
| Flip / Mirror | Flip / Rotation |
| AI Analytics | Line Crossing Detection / Perimeter Intrusion Detection / Stationary Object Detection / Human & Vehicle Detection / Cross Counting / Queue Length Detection / Crowd Density Detection / Heat Map Statistics / License Plate Detection / Face Detection / Rare Sound Detection |
| Image Setting | |
| Day & Night Mode | Hue, Bright, Contrast, Saturation, Sharpness, IR-CUT Mode, IR-CUT Delay, IR-LED, Low Beam Light, Angle Trad, Mirror, Backlight, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Full Color Mode | Hue, Bright, Contrast, Saturation, Sharpness, White Light, Light Distance, Angle Trad, Mirror, Backlight, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Hardware Reset | Yes |
| Network | |
| Ethernet | RJ45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 |
| Resolution | Main Stream 5 MP: 2880 x 1620 (Default) 4 MP: 2592 x 1440 3 MP: 2304 x 1296 1080P: 1920 x 1080 720P: 1280 x 720 |
| Sub Stream 720P: 1280 x 720 (Default) VGA: 640 x 480 QVGA: 320 x 240 | |
| Mobile Stream VGA: 640 x 480 (Default) QVGA: 320 x 240 | |
| Max. Frame Rate | 50 Hz: 25 fps at 5 MP / 4 MP / 3 MP / 2 MP / 720P / VGA / QVGA 60 Hz: 30 fps at 5 MP / 4 MP / 3 MP / 2 MP / 720P / VGA / QVGA |
| Video Quality Adjustment | 256 Kbps ~ 8 Mbps |
| Bitrate Control Method | CBR / VBR |
| Streaming Capability | Triple-Stream (Main / Sub / Mobile) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | -IP address filter |
| -Complicated password | |
| -Authenticated username and password | |
| Streaming Method | Unicast / Multicast |
| Max. User Account | Max 7 (Admin + 6 Users) |
| Application Programming Interface | ONVIF (Profile S / G / T) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° |
| Tilt: 0° ~ 80° | |
| Rotate: 0° ~ 360° | |
| Connector | Power: DC Jack |
| Ethernet: Ethernet (10/100 Base-T), RJ45 cable | |
| Audio: 1 in (built-in microphone) Local Storage: Micro SD card slot, up to 256GB (SD / SDHC / SDXC) *Class 10, UHS‐I, UHS‐II card type is not supported. | |
| General | |
| Operating Temperature / Humidity | -30 ~ 55°C (‐22°F ~ 131°F) / less than ≤ 95% RH |
| Storage Temperature / Humidity | -30 ~ 60°C (‐22°F ~ 140°F) / less than ≤ 95% RH |
| Power Source | 12V DC, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 7.5 W |
| Color / Material | White / Metal |
| Dimensions (L x W x H) | 151.3 x 74.1 x 74.1 mm (5.96" x 2.91" x 2.91") |
| Weight | 359 g (0.79 lb) |
| Ingress Protection | IP66 |
| Certification | CE, FCC, LVD, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Change Stream, AI Alarm, Play, Color, Stop, Original Proportions, Stretch, Full Screen, Record, Capture, Digital Zoom, Audio, Pixel Counter |
| Language | English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish |
| Application | |
| Software Supported | GV-VMS (V18.3.1 / 17.4.5 *3rd-party license required for SW connection) GV-Control Center (V4.1.0) GV-Recording Server (V2.1.0 *3rd-party license required for SW connection) GV-Edge Recording Manager Windows Version (V2.2.0) |
| Smart Device Access | GV-Eye for iOS and Android (V2.9.1) |
| Live Viewing | IE10 / 11 Safari V12.1 or later Firefox V52 or later Google chrome V57 or later Edge V79 or later |
The GeoVision 84-B580F30-UA00 is a high-performance 5MP IP bullet camera featuring a 1/2.7" progressive CMOS sensor delivering 2880x1620 resolution at 25/30fps, distinguished by its exceptional F1.0 ultra-fast aperture for superior low-light sensitivity. Equipped with a 3.6mm fixed lens providing an 88.3° horizontal FOV, it captures targeted coverage ideal for perimeter and entryway surveillance applications requiring enhanced detail at distance. With Super Low Lux technology achieving 0.005 lux color minimum illumination and dual illuminators - 2 IR LEDs (30m) and 2 warm LEDs (25m) with default warm light and switchable infrared - it delivers flexible full-color night vision options. WDR Pro (120dB) and 3D DNR ensure exceptional image quality in high-contrast scenes. Housed in an IP66-rated metal casing with full 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 55°C. Powered by on-device AI analytics, it delivers comprehensive detection including line crossing, perimeter intrusion, stationary object, human/vehicle classification, cross counting, queue length, crowd density, heat mapping, license plate detection, face detection, and rare sound detection. H.265 triple streaming with edge storage up to 256GB via microSD ensures robust performance. Fully ONVIF Profile S/G/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye for professional IP surveillance requiring exceptional low-light sensitivity, full-color night vision, and enhanced detail at distance in a compact bullet form factor.
