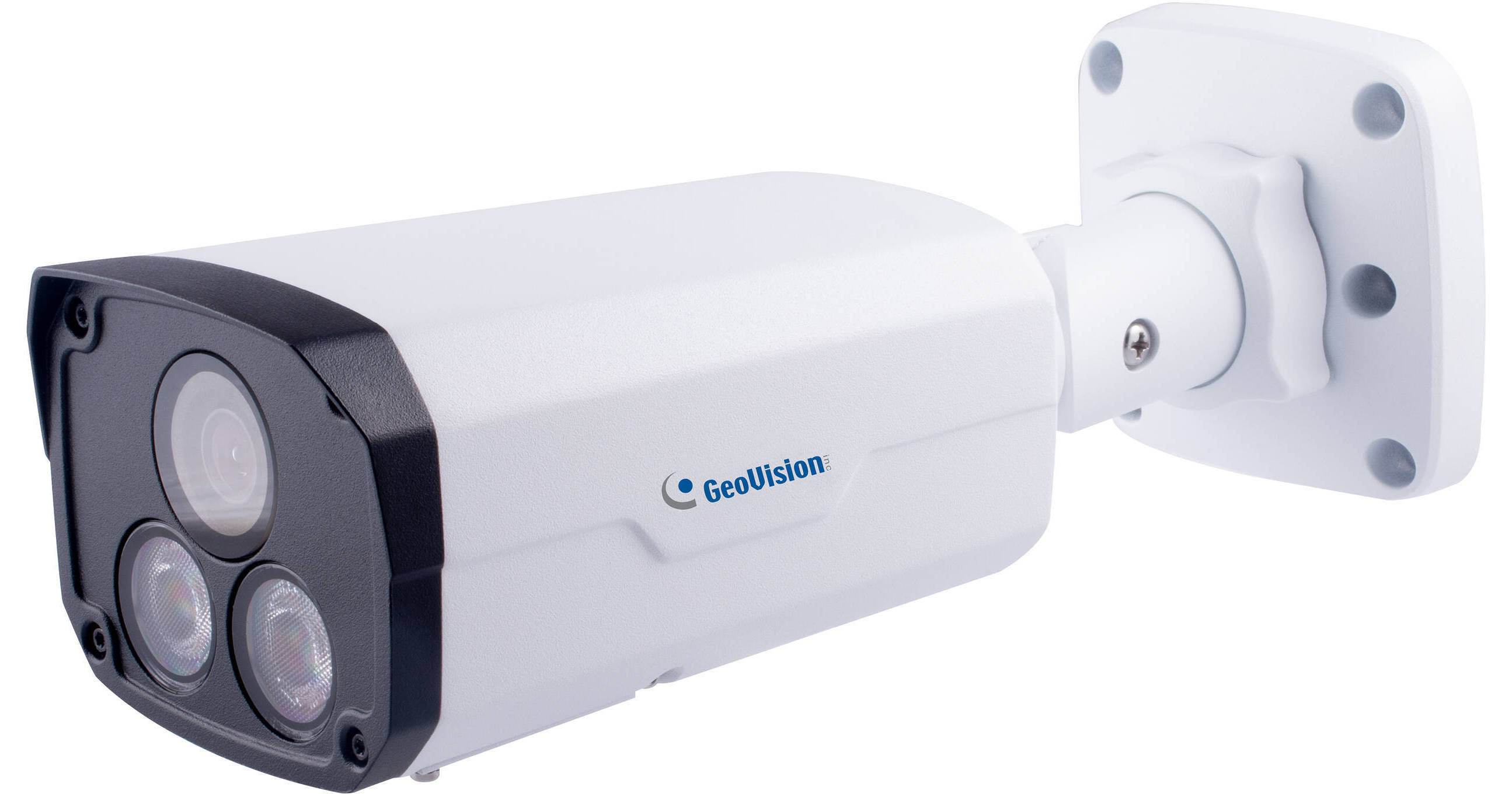

GeoVision - 84-BLFC58W-0010 - AI 5MP H.265 Super Low Lux WDR Pro Full Color Warm LED Bullet IP Camera
• AI deep learning: Smart Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.001 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2880 x 1620
• Full color smart warm LEDs distance up to 30 m (100 ft)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Cross Line, Intrusion, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2880 (H) x 1620 (V) | 5 Megapixels |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 5 MP |
| Day / Night | Color |
| Lens Type | Fixed |
| Focal Length | 4mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| Horizontal FOV | 80.2° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Smart Illumination LED Quantity | 2 Warm LEDs |
| Max. LED Distance | 30 m (100 ft) |
| DORI | |
| Detect | 90 m (295.3 ft) |
| Observe | 36 m (118.1 ft) |
| Recognize | 18 m (59.1 ft) |
| Identify | 9 m (29.5 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2880 x 1620 (default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default) Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2880 x 1620, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format). |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external microphone and speaker required) |
| Digital I/O | Input: 1 input, dry contact, NO / NC Output: 1 relay output (1A 30V DC / 0.3A 125V AC) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 90° Rotate: 0 ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 9.0W |
| Dimensions | 246 × 86 × 85 mm (9.7" × 3.4" × 3.3") |
| Weight | 0.92 kg (2.02 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Application | |
| Software Supported | GV‐VMS (V17.4.3 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0 / V4.0.1), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Windows Version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-AI Guard (V1.0.0), GV-Mobile Server (V1.5.1) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (Edge, IE mode in Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-BLFC58W-0010 is a professional 5MP bullet camera featuring a 4mm fixed lens with 80.2° horizontal FOV and an exceptional F1.0 ultra-fast aperture, delivering 2880x1620 resolution at 30fps. With Super Low Lux technology achieving 0.001 lux color minimum illumination and two Warm LEDs providing 30m full-color night vision, it captures true color imaging 24/7 without infrared. WDR Pro (120dB) and 56dB S/N ratio ensure outstanding image quality in extreme low-light and high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 rating and full 3-axis adjustment, it operates from -30°C to 60°C with DORI detection up to 90m.
Powered by on-device deep learning, it delivers comprehensive AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one function at a time). H.265 triple streaming with 40 Mbps throughput, two-way audio, digital I/O, and edge storage up to 512GB ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional AI surveillance requiring extreme low-light full-color performance.
