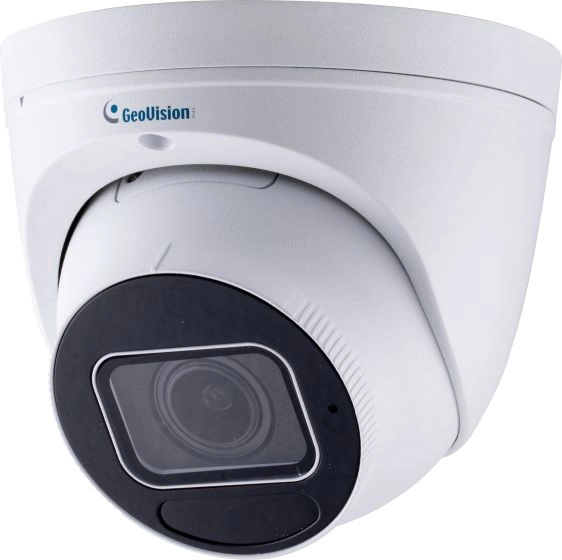

GeoVision - 84-EBD483W-0010 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Eyeball Dome IP Camera with 2.7-13.5mm Lens
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.002 lux
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• Motorized lens for remote focus/zoom adjustment
• IR distance up to 40 m (130 ft)
• Built-in microphone
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T) conformant
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Automatic / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 ~ 13.5 mm |
| Maximum Aperture | F/1.2 |
| Mount | Ø 12 mm |
| Horizontal FOV | 98°~31° |
| Focus | Auto / Manual |
| Zoom | 5x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 40 m (130 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and Audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way Audio |
| Face Detection | |
| Environment | 100 lux |
| Detectable face angle | Tilt (Up/Down) ≤ 10° Swing (Left/Right) ≤ 30° |
| Max. number of faces | Up to 40 |
| Min. face image pixel requirement | 80 pixels |
| Deep Learning Function | |
| AI Analytics | Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle classification), People Flow Counting, Crowd Density Monitoring |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, Qos, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 75° Rotate: 0°~ 360° |
| Connectors | Power: DC Jack (DC 12V, 1.25A), PoE Ethernet: RJ-45 Audio: 1 In (built-in microphone) Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Environment Temperature | Start-up: -30°C ~ 60°C (-22°F ~ 140°F) Operation: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7.0W |
| Dimensions | Ø 129 x 110 mm (Ø 5.1" x 4.3") |
| Weight | 0.69 kg (1.52 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | CE, FCC, RoHS |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-EBD483W-0010 is a versatile 4MP eyeball dome camera featuring a 1/3" progressive scan super low lux CMOS sensor delivering 2688x1520 resolution at 30fps. Equipped with a motorized 2.7-13.5mm varifocal lens providing 5x optical zoom and 98° to 31° horizontal field of view with F1.2 fast aperture, it offers exceptional flexibility for both wide-area coverage and detailed close-up surveillance. With Super Low Lux technology achieving 0.002 lux minimum illumination in color and two IR LEDs providing 40m night vision, it delivers clear imaging in extreme low-light conditions. WDR Pro (120dB), 56dB S/N ratio, and 3DNR ensure crystal-clear image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and full 3-axis mechanical adjustment (pan 360°/tilt 75°/rotate 360°), it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, the camera delivers comprehensive AI analytics including intrusion, crossing line, entering/leaving area with human and vehicle classification, face detection (up to 40 faces simultaneously), people flow counting, and crowd density monitoring. H.265/H.264/MJPEG triple streaming optimizes bandwidth efficiency. Video analytics include motion detection, tampering alarm, and audio detection via web interface. One-way audio with built-in microphone and edge storage via microSD card (UHS-I) provide essential functionality. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for professional AI-powered 4MP surveillance requiring optical zoom flexibility.
